20353 - Toro 22" Recycler Walk-Behind Mower (SN: 404400000 - 405670000) Front Wheel and Height-of-Cut Assembly Parts Diagram

22" Recycler Walk-Behind Mower

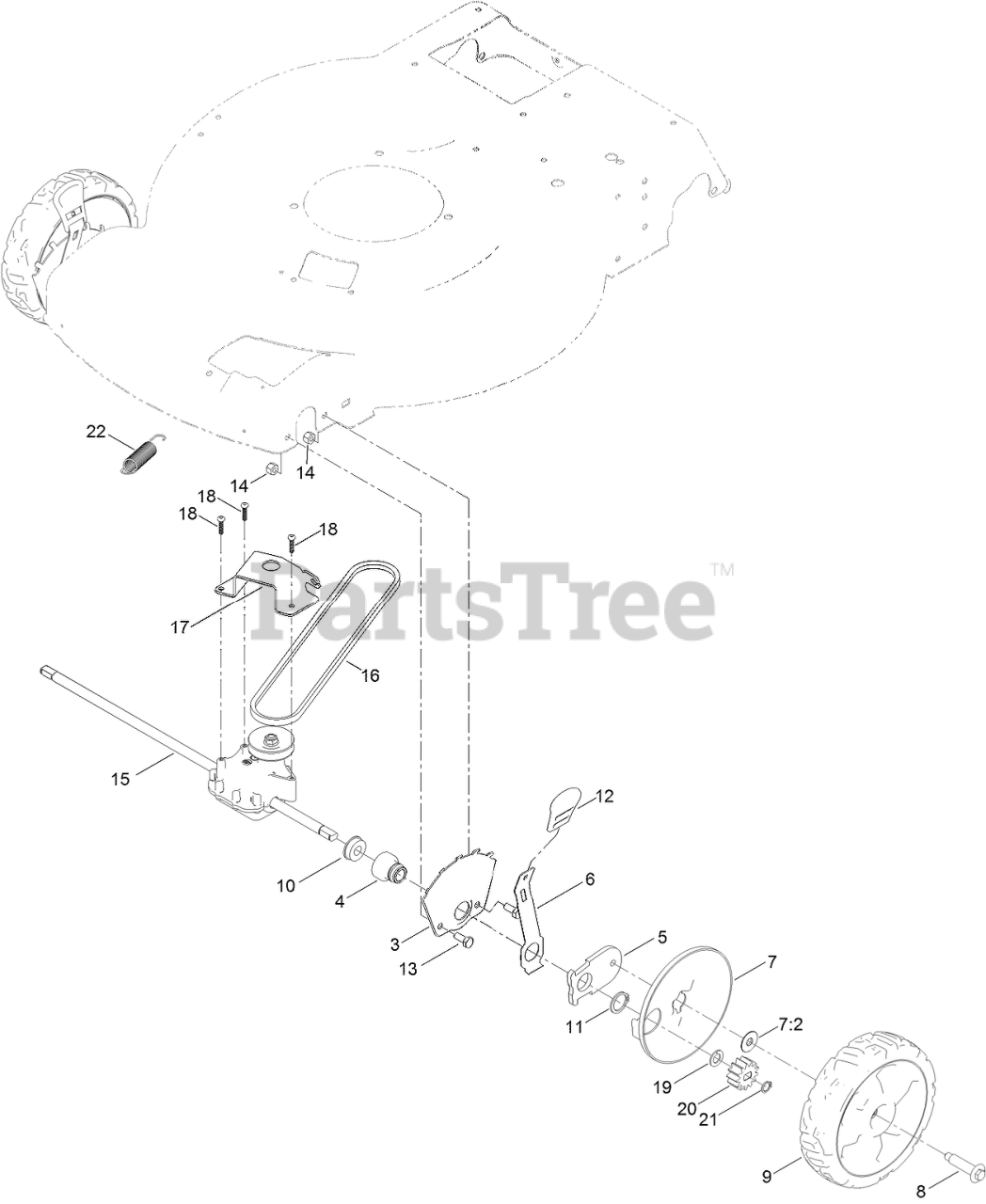

Front Wheel and Height-of-Cut Assembly Parts Diagram

  • Title

3

Toro 115-1956-03

PLATE-HOC, FRONT

$11.99

$

In Stock, Qty 10

0

4

Toro 131-0836

RETAINER-BEARING, HOC

$15.99

$

In Stock, Qty 20+

0

5

Toro 137-9128

ARM-PIVOT, FRONT

$7.99

$

In Stock, Qty 12

0

6

Toro 105-1809

ARM-SPRING

$12.99

$

In Stock, Qty 11

0

7

Toro 131-4513

WHEEL COVER ASM

$11.99

$

In Stock, only 1 left!

0

7:2

Toro 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

8

Toro 614650

BOLT-SHOULDER

$4.99

$

In Stock, Qty 20+

0

9

Toro 130-6711

WHEEL ASM, 8IN

$39.99

$

In Stock, Qty 5

0

10

Toro 104-8699

BEARING-BALL

$4.99

$

In Stock, Qty 20+

0

11

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 20+

0

12

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

13

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 137-4823

TRANSMISSION

$117.99

$

In Stock, Qty 7

0

16

Toro 71-9450

V-BELT

$25.99

$

In Stock, Qty 20+

0

17

Toro 114-7978-03

BRACKET-TRANSMISSION

$12.99

$

In Stock, Qty 6

0

18

Toro 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 20+

0

19

Toro 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

20

Toro 131-0896

GEAR-PINION, 13T

$7.49

$

In Stock, Qty 20+

0

21

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

22

Toro 131-4560

SPRING-EXTENSION

$8.49

$

In Stock, Qty 8

0
