20353 - Toro 22" Recycler Walk-Behind Mower (SN: 405670001 - 999999999) Engine and Blade Assembly Parts Diagram

22" Recycler Walk-Behind Mower

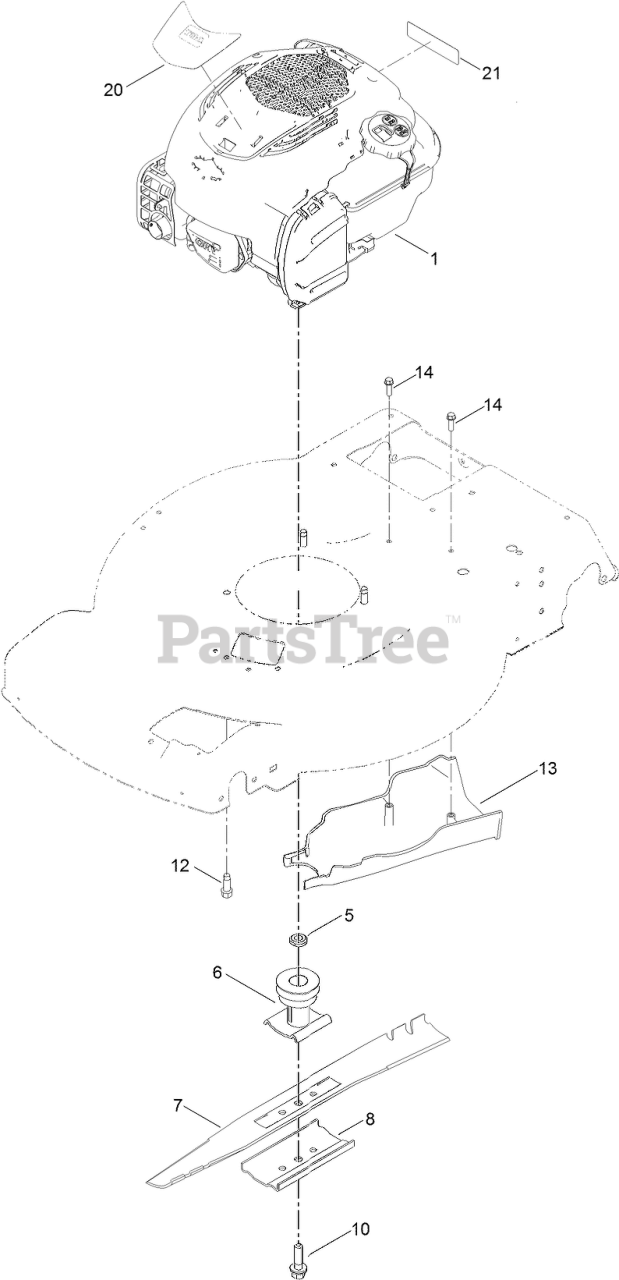

Engine and Blade Assembly Parts Diagram

  • Title

1

ENGINE-BRIGGS, 104M020010F1

Note: Not serviced separately

$

$

Not available

1

ENGINE-BRIGGS, 104M020010F1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

5

Toro 106-3999

SPACER-DRIVER

$3.49

$

In Stock, Qty 20+

0

6

Toro 130-6705

DRIVER-BLADE

$39.99

$

In Stock, Qty 9

0

7

Toro 131-4547-03

BLADE-22 INCH

$22.99

$

In Stock, Qty 20+

0

8

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 20+

0

10

Toro 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

12

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

13

Toro 130-6709

COVER-BELT, REAR

$15.99

$

In Stock, only 1 left!

0

14

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

20

Toro 131-4518

DECAL-SHROUD, BRIGGS

$4.49

$

Usually ships in 3-6 days

0

21

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0
