20360 - Toro 20" e-Cycler Cordless Walk-Behind Mower (SN: 313000001 - 313999999) (2013) 36 VOLT SWITCH ASSEMBLY Parts Diagram

20" e-Cycler Cordless Walk-Behind Mower

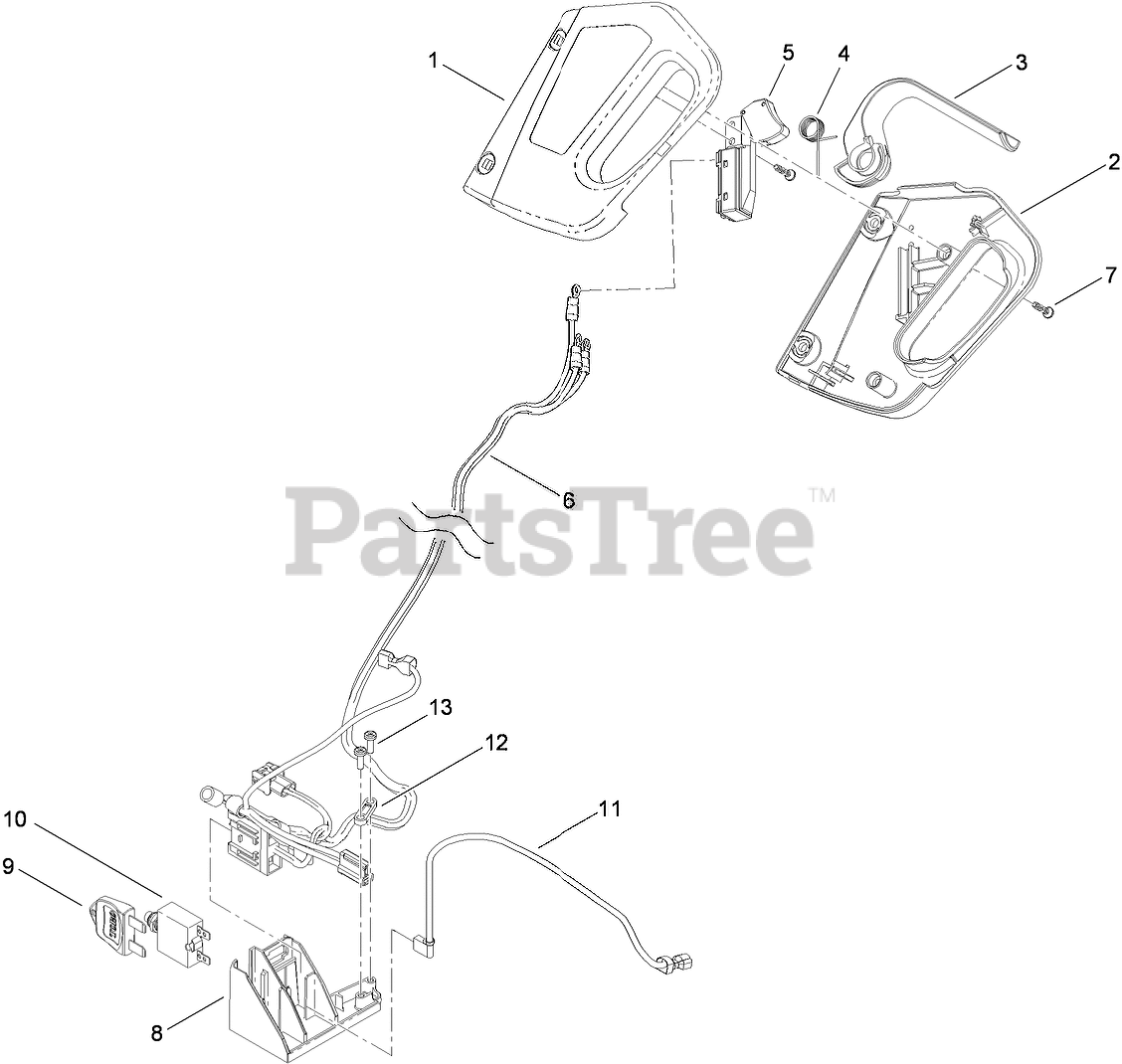

36 VOLT SWITCH ASSEMBLY Parts Diagram

  • Title

1

Toro 119-0258

HOUSING-SWITCH, LH

$12.99

$

In Stock, only 1 left!

0

2

Toro 119-0259

HOUSING-SWITCH, RH

$12.99

$

In Stock, only 1 left!

0

3

Toro 119-0261

LEVER-SWITCH

$

$

Not available

4

Toro 119-0264

SPRING-TORSION, LEVER

$5.99

$

In Stock, only 1 left!

0

5

Toro 119-3757

SWITCH-36V, MARQUARDT

$60.99

$

Usually ships in 3-6 days

0

6

Toro 119-0316

HARNESS-WIRE

$135.99

$

Usually ships in 3-6 days

0

7

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

8

Toro 119-0298

HOUSING-TERMINAL

$4.49

$

Usually ships in 3-6 days

0

9

Toro 119-0300

KEY

$2.99

$

In Stock, only 3 left!

0

10

Toro 119-3779

CIRCUIT BREAKER

$27.99

$

Usually ships in 3-6 days

0

11

Toro 119-3768

HARNESS-WIRE (JUMPER)

$7.49

$

Usually ships in 3-6 days

0

12

Toro 119-3814

CLAMP-HARNESS

$1.49

$

Usually ships in 3-6 days

0

13

Toro 32104-118

SCREW-PPH

$

$

Not available
