20360 - Toro 20" e-Cycler Cordless Walk-Behind Mower (SN: 315000001 - 315999999) (2015) SHROUD, 36 VOLT MOTOR AND BATTERY ASSEMBLY Parts Diagram

20" e-Cycler Cordless Walk-Behind Mower

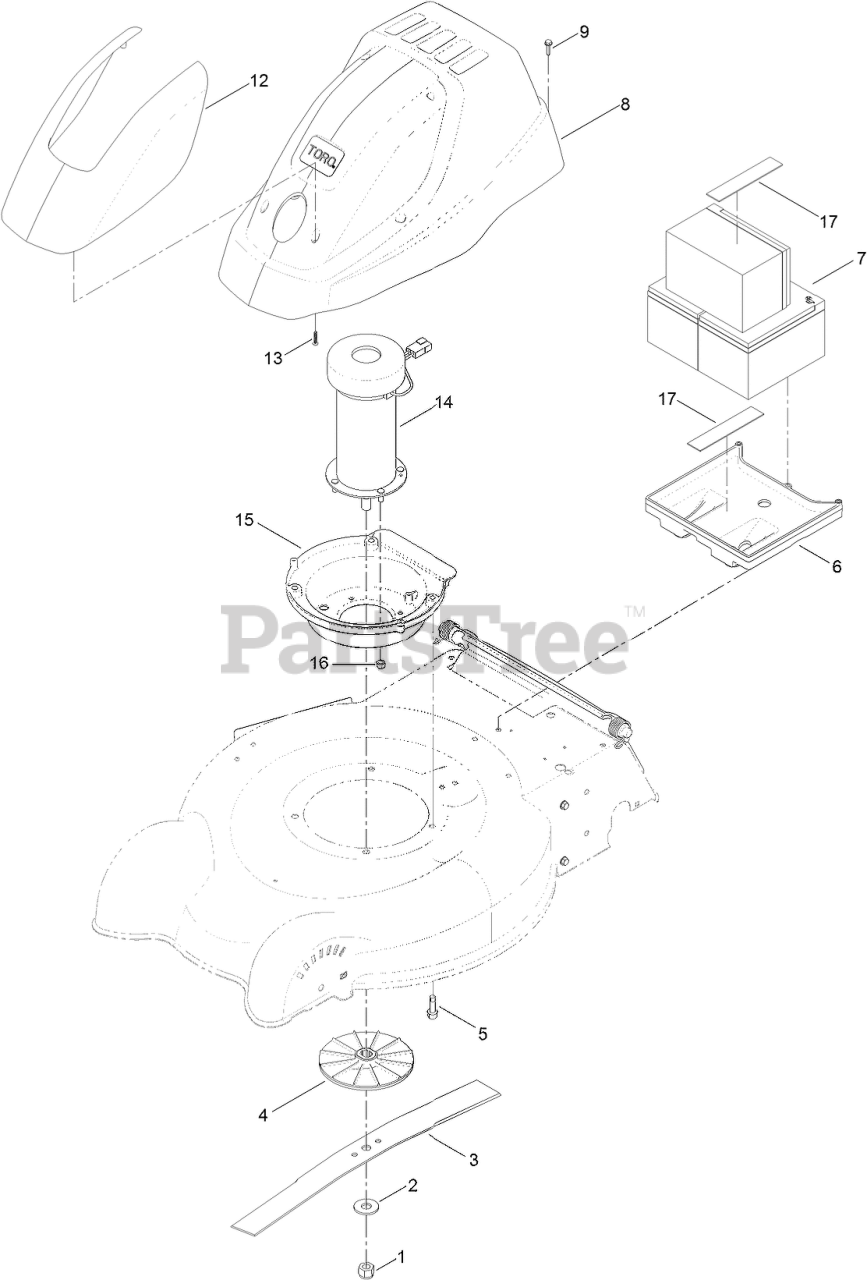

SHROUD, 36 VOLT MOTOR AND BATTERY ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-19

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

2

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 6

0

3

Toro 119-0303-03

BLADE-20 INCH

$29.99

$

Usually ships in 3-6 days

0

4

Toro 119-3774

FAN MOTOR ASM

$

$

Not available

5

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

6

Toro 119-0252

TRAY-BATTERY

$11.99

$

Usually ships in 3-6 days

0

7

Toro 119-7060

BATTERY ASM

$314.99

$

Usually ships in 3-6 days

0

7:5

Toro 119-7081

STRAP-TIE

Note: Not illustrated

$

$

Not available

8

Toro 119-7020

SHROUD ASM

$

$

Not available

9

Toro 100-4351

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

12

Toro 119-0251

COVER-SHROUD

$

$

Not available

13

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

14

Toro 119-0254

MOTOR-36V

$589.99

$

Usually ships in 3-6 days

0

15

Toro 117-5999

BASE-MOTOR

$53.99

$

Usually ships in 3-6 days

0

16

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

17

Toro 119-3755

TAPE-FOAM, 2 SIDED

$

$

Currently unavailable
