20373 - Toro 22" Recycler Walk-Behind Mower (SN: 400000000 - 402099999) HANDLE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

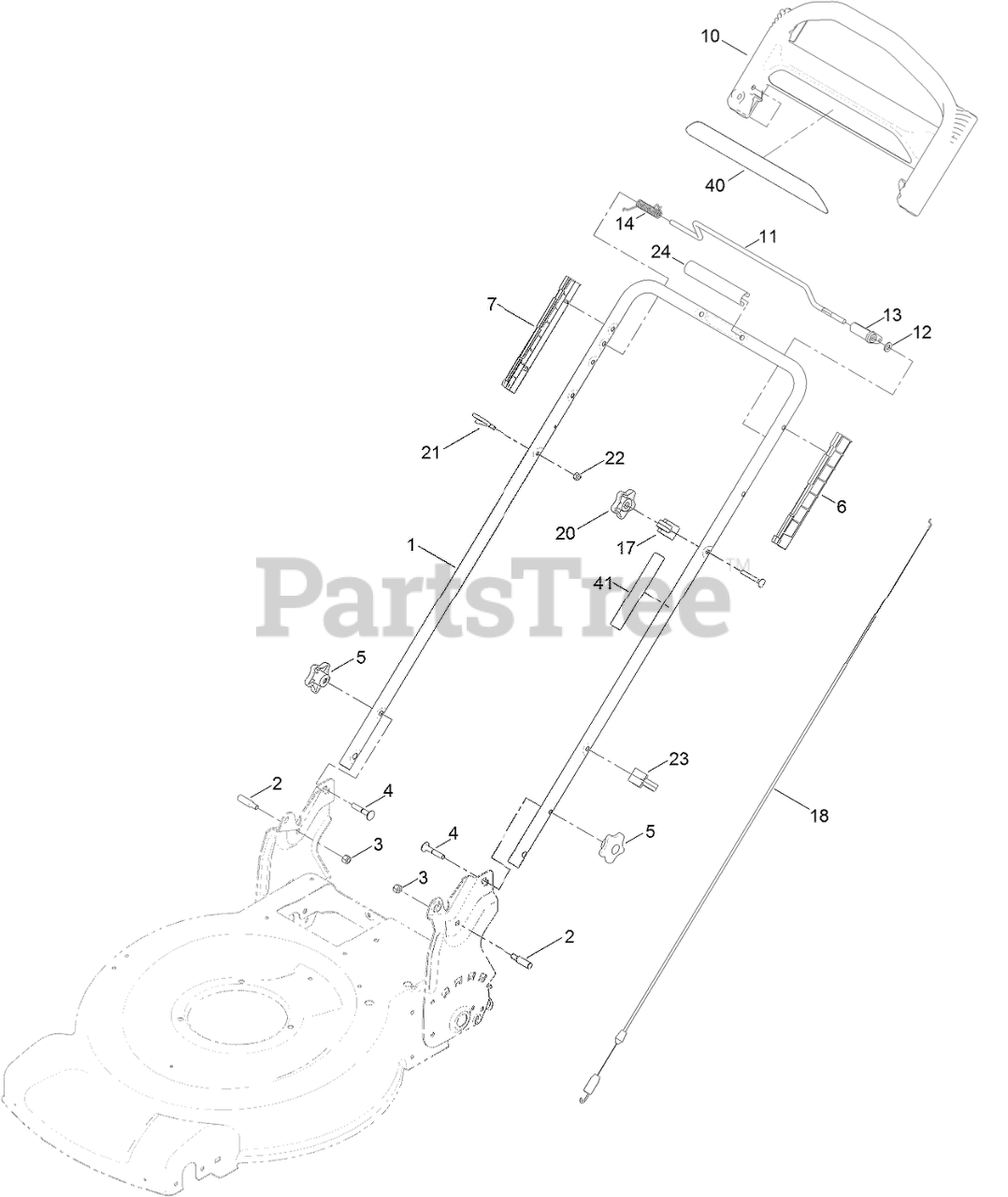

HANDLE ASSEMBLY Parts Diagram

  • Title
Usually ships in 1 day

$

$46.49

0

2

Toro Part# 131-4591

BOLT-SHOULDER
Usually ships in 1 day

$

$1.44

0

3

Toro Part# 3296-29

NUT-LOCK, NI
Usually ships in 1 day

$

$2.00

0

4

Toro Part# 131-9663

SCREW-CARR
Usually ships in 1 day

$

$0.82

0

5

Toro Part# 117-5976

KNOB-HANDLE
Usually ships in 1 day

$

$2.23

0

6
Usually ships in 1 day

$

$6.93

0

7
Usually ships in 1 day

$

$6.93

0

10

Toro Part# 104-8678

HANDLE-CONTROL
Usually ships in 1 day

$

$66.33

0

11

Toro Part# 99-1588

Bar-Control, Traction
(Superseded to 136-7150)
Usually ships in 1 day

$

$13.22

0

12

Toro Part# 3256-23

WASHER-PLAIN
Usually ships in 1 day

$

$1.93

0

13

Toro Part# 99-1589

LEVER-TRACTION
Usually ships in 1 day

$

$5.91

0

14

Toro Part# 121-9118

Spring-Torsion
(Superseded to 136-7166)
Usually ships in 1 day

$

$2.23

0

17

Toro Part# 136-5864

ANCHOR-CABLE
Usually ships in 1 day

$

$2.38

0

18

Toro Part# 115-8435

CABLE-TRACTION
Usually ships in 1 day

$

$27.63

0

20

Toro Part# 131-0897

KNOB-HANDLE, LOCKING
Usually ships in 1 day

$

$3.38

0

21

Toro Part# 86-9671

GUIDE-ROPE
Usually ships in 1 day

$

$4.24

0

22

Toro Part# 3296-73

NUT-LOCK, NI
Usually ships in 1 day

$

$3.21

0

23

Toro Part# 114-7988

GUIDE-CABLE
Usually ships in 1 day

$

$2.26

0

24

Toro Part# 131-4551

HANDLE-COVER
Usually ships in 5 to 8 days

$

$1.16

0

Usually ships in 1 day

$

$6.93

0

41

Toro Part# 132-4470

DECAL-TRACTION, ADJUST
Usually ships in 1 day

$

$1.57

0
