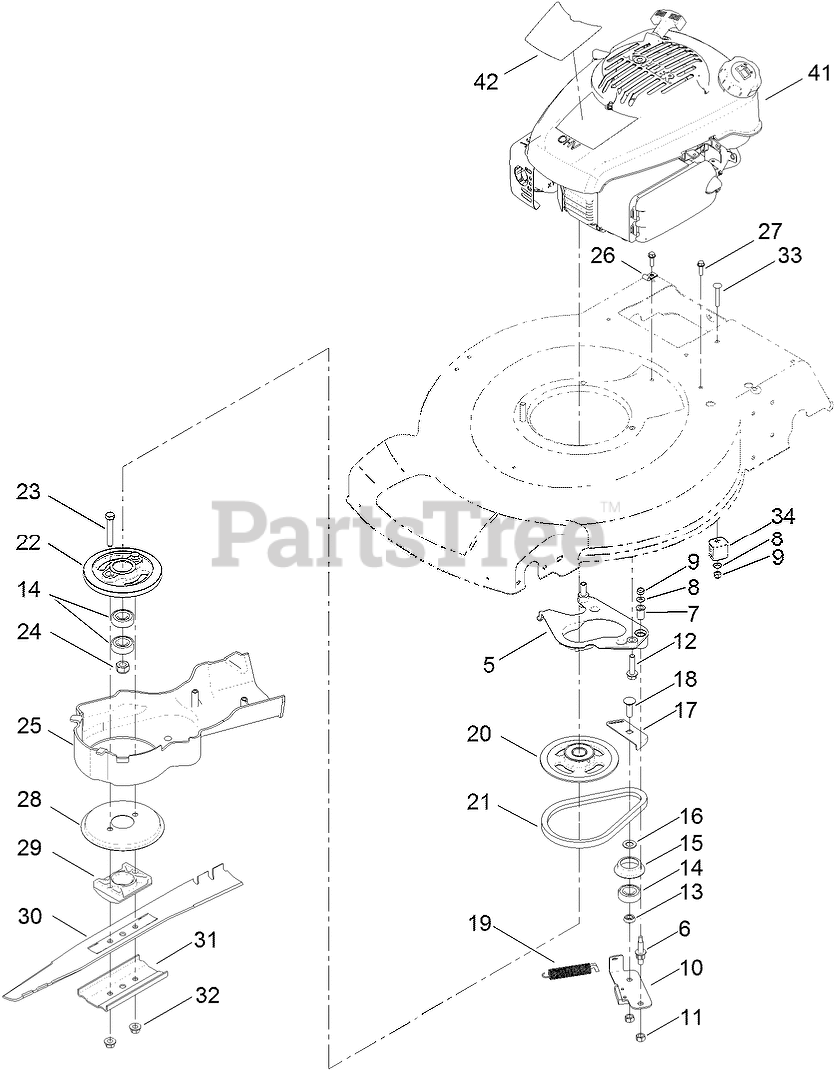

20376 - Toro 22" Recycler Walk-Behind Mower (SN: 313000001 - 313999999) (2013) > Parts Diagrams (7) > ENGINE AND BLADE ASSEMBLY

  • Title
108-9341

5

PLATE-ANCHOR

Part# 108-9341

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $20.80

107-0759

6

BOLT-SHOULDER

Part# 107-0759

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.70

107-0797

7

BUSHING

Part# 107-0797

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.46

3256-16

8

WASHER-FLAT

Part# 3256-16

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.48

3296-73

9

NUT-LOCK, NI

Part# 3296-73

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.34

120-3327

10

BRAKE ARM ASM

Part# 120-3327 (Superseded to 125-1063)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $16.76

603773

11

NUT

Part# 603773

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.23

32144-102

12

SCREW-HWH

Part# 32144-102

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.24

107-0758

13

SPACER-BEARING

Part# 107-0758

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.23

100-1048

14

BEARING-BALL

Part# 100-1048 (Superseded to 38-7820)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $12.29

108-3790

15

RETAINER-BELT

Part# 108-3790 (Superseded to 138-3217)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.34

605256

16

WASHER-PLAIN

Part# 605256

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.23

107-7471

17

PLATE-GUIDE

Part# 107-7471

OEM Warranty Repair Part for Toro

Not available

3231-25

18

BOLT-CARR

Part# 3231-25

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.02

108-3792

19

SPRING-TENSION, BRAKE

Part# 108-3792

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.82

117-5970

20

PULLEY

Part# 117-5970

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $22.04

110-1790

21

BELT

Part# 110-1790

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $26.82

107-0754

22

DRUM

Part# 107-0754 (Superseded to 126-8108)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $37.24

3211-42

23

SCREW-HH

Part# 3211-42

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.84

108-9342

24

NUT-HEX

Part# 108-9342

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.34

115-2892

25

COVER

Part# 115-2892

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $17.22

2412-72

26

CLIP-CLOSED, INSULATED

Part# 2412-72

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.05

46-8091

27

SCREW-HWH

Part# 46-8091

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.64

108-3787

28

DISC

Part# 108-3787 (Superseded to 138-3225)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.02

107-7487

29

SUPPORT-BLADE

Part# 107-7487

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $16.47

108-9764-03

30

BLADE-22 INCH

Part# 108-9764-03 (Superseded to 131-4547-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $22.35

108-3766-03

31

SUPPORT-BLADE

Part# 108-3766-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.23

54-9190

32

NUT-LOCK

Part# 54-9190

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.23

3229-5

33

SCREW-CARR

Part# 3229-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

106-6801

34

ANCHOR-CABLE

Part# 106-6801

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.63

41

ENGINE-KOHLER, XT-6 XT149-0226

Part#

Note: Not serviced separately

Not available

41

ENGINE-KOHLER, XT-6 XT149-0226

Part#

Note: Obtain parts from www.kohlerplus.com

Not available

125-5052

42

DECAL-ENGINE

Part# 125-5052

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.92
