Parts Home > Toro > Walk-Behind Mowers > 20378 - Toro 22" Recycler Walk-Behind Mower (SN: 315000001 - 315999999) (2015) > ENGINE ASSEMBLY

20378 - Toro 22" Recycler Walk-Behind Mower (SN: 315000001 - 315999999) (2015)

22" Recycler Walk-Behind Mower

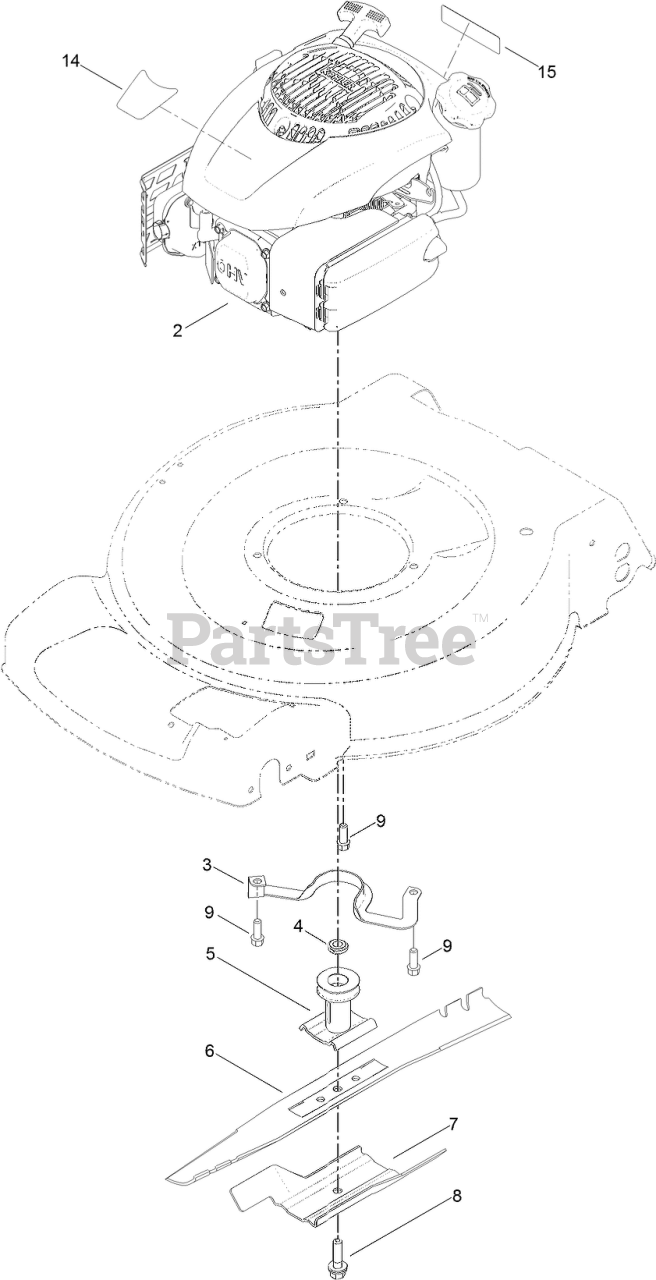

20378 - Toro 22" Recycler Walk-Behind Mower (SN: 315000001 - 315999999) (2015) > Parts Diagrams (6) > ENGINE ASSEMBLY

  • Title

2

ENGINE-KOHLER XT675-3071

Part#

Note: Not serviced separately

Not available

2

ENGINE-KOHLER XT675-3071

Part#

Note: Obtain parts from www.kohlerplus.com

Not available

105-3031-03

3

Guide-Belt

Part# 105-3031-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.15

106-3999

4

Spacer-Driver

Part# 106-3999

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.26

106-3987

5

DRIVER-BLADE

Part# 106-3987

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $21.23

131-4546-03

6

BLADE-22IN

Part# 131-4546-03 (Superseded to 131-4547-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $22.35

108-3766-03

7

SUPPORT-BLADE

Part# 108-3766-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.23

125-2466

8

BOLT-BLADE

Part# 125-2466

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.25

95-1726

9

SCREW-TAPTITE

Part# 95-1726

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.24

130-2361

14

DECAL-SHROUD

Part# 130-2361

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $16.18

117-2718

15

DECAL-ARRESTER, SPARK

Part# 117-2718

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.52
