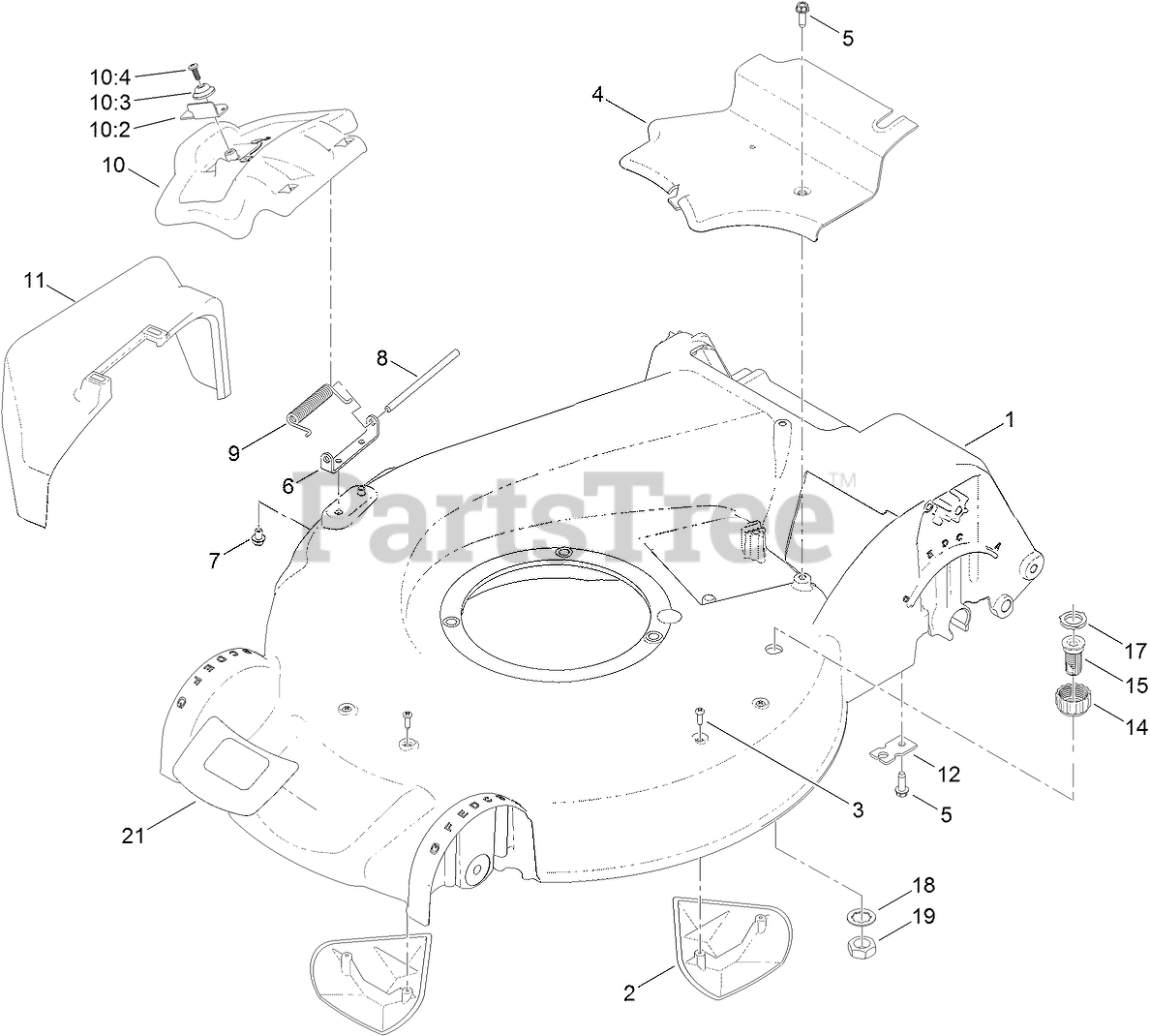

20380 - Toro Super Recycler Walk-Behind Mower (SN: 313000001 - 313999999) (2013) HOUSING ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 115-2854

HOUSING ASM
Usually ships in 5 to 8 days

$

$200.57

0

2

Toro Part# 108-3798

KICKER-HOUSING
Usually ships in 5 to 8 days

$

$10.39

0

3
Usually ships in 1 day

$

$0.82

0

4

Toro Part# 107-7494

COVER-BELT
Usually ships in 5 to 8 days

$

$17.24

0

5

Toro Part# 49-2040

SCREW-HWHTF
Usually ships in 1 day

$

$1.67

0

6

Toro Part# 112-6416

BRACKET-COVER
Usually ships in 1 day

$

$2.23

0

7

Toro Part# 99-8445

SCREW-HWH
Usually ships same day

Not available

$

$

8

Toro Part# 99-5291

ROD-COVER
(Superseded to 136-8672)
Usually ships in 1 day

$

$2.46

0

9

Toro Part# 99-5293

SPRING-TORSION
Usually ships in 1 day

$

$7.82

0

10

Toro Part# 107-3717

DISCHARGE DOOR ASM
Usually ships in 1 day

$

$20.15

0

10:2

Toro Part# 107-0795

LATCH-DOOR
Usually ships in 1 day

$

$1.18

0

10:3

Toro Part# 107-7456

CAP-DOOR
(Superseded to 138-3242)
Usually ships in 1 day

$

$1.39

0

10:4

Toro Part# 107-7461

SCREW-PLASTITE
Usually ships in 1 day

$

$0.58

0

11

Toro Part# 108-3753

CHUTE-DISCHARGE, SIDE
Usually ships in 1 day

$

$19.78

0

12

Toro Part# 107-7497

BRACKET-CABLE, TRACTION
(Superseded to 138-3224)
Usually ships in 1 day

$

$1.81

0

14

Toro Part# 112-6401

COUPLING-HOSE, WASHOUT PORT
Usually ships in 1 day

$

$1.97

0

15

Toro Part# 112-6400

PORT-WASHOUT
Usually ships in 5 to 8 days

$

$3.78

0

17

Toro Part# 112-6438

WASHER-SEAL, WASHOUT PORT
Usually ships in 1 day

$

$1.24

0

18

Toro Part# 3254-5

WASHER-TOOTH, INTERNAL
Usually ships in 1 day

$

$0.49

0

19
Usually ships in 1 day

$

$5.74

0

21

Toro Part# 121-5758

DECAL-DECK
Usually ships in 5 to 8 days

$

$3.56

0
