20384 - Toro Super Recycler Walk-Behind Mower (SN: 316000001 - 316999999) (2016) ELECTRICAL ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

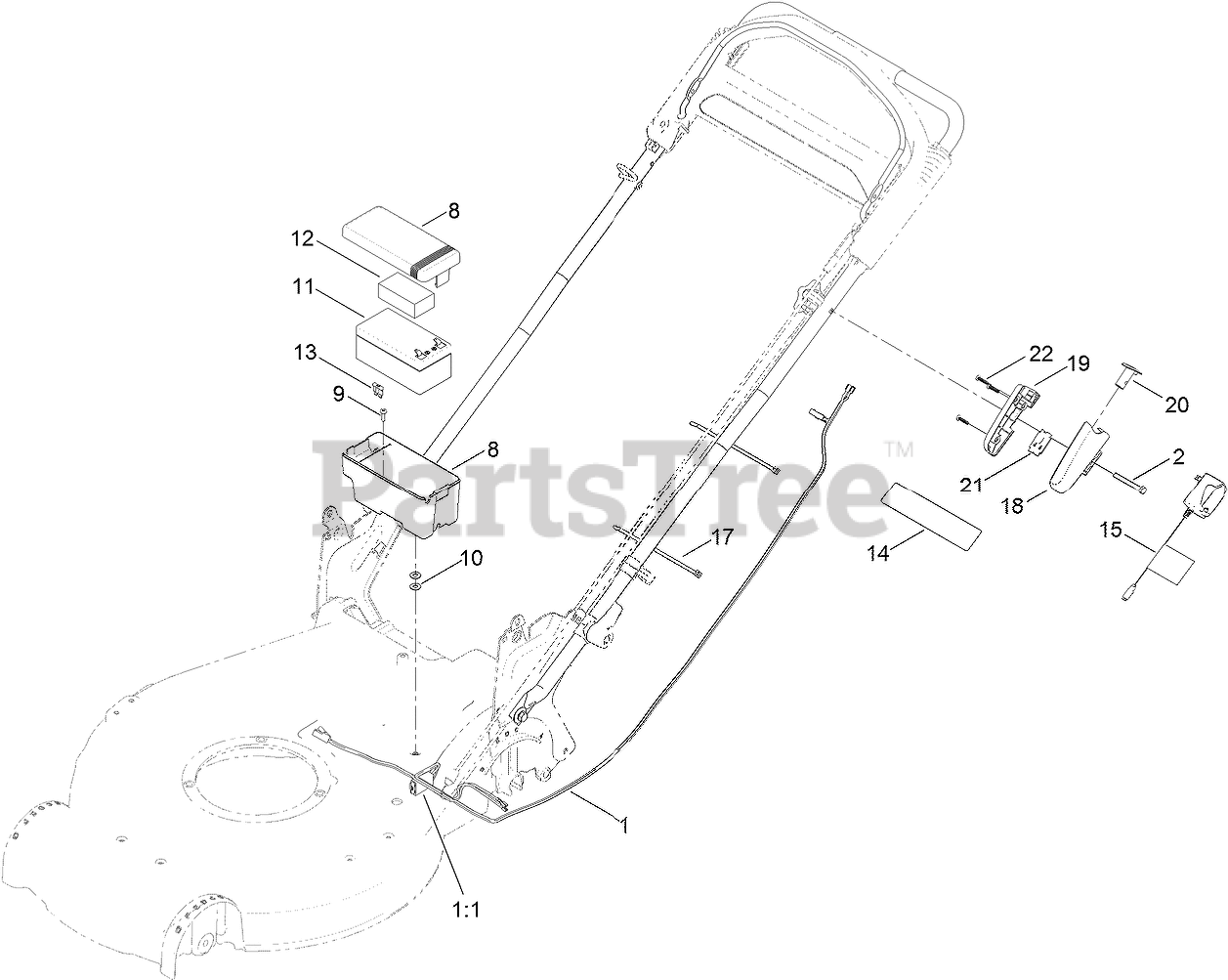

ELECTRICAL ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 125-5025

HARNESS-WIRE
Usually ships in 5 to 8 days

$

$68.57

0

1:1

Toro Part# 99-6124

FUSE-40 AMP
Usually ships in 1 day

$

$4.26

0

2
Usually ships in 1 day

$

$1.32

0

8

Toro Part# 108-4844

BATTERY BOX ASM
Usually ships in 5 to 8 days

$

$19.27

0

Usually ships in 5 to 8 days

$

$1.99

0

10

Toro Part# 3256-22

WASHER-FLAT
Usually ships in 1 day

$

$0.44

0

11

Toro Part# 106-8397

BATTERY-WET
Usually ships in 1 day

$

$74.90

0

12

Toro Part# 107-3774

FOAM-BATTERY, TOP
Usually ships in 1 day

$

$3.88

0

13

Toro Part# 99-6124

FUSE-40 AMP
Usually ships in 1 day

$

$4.26

0

14

Toro Part# 104-7953

DECAL-WARNING
Usually ships in 5 to 8 days

$

$6.93

0

15

Toro Part# 114-1588

CHARGER-BATTERY
(Superseded to 136-9126)
Usually ships in 1 day

$

$36.88

0

17

Toro Part# 614249

TIE-CABLE
Usually ships in 1 day

$

$0.83

0

18

Toro Part# 125-2468

HOUSING-SWITCH, LH
(Superseded to 136-5853)
Usually ships in 1 day

$

$2.93

0

19

Toro Part# 125-2469

HOUSING-SWITCH, RH
(Superseded to 136-5853)
Usually ships in 1 day

$

$2.93

0

20

Toro Part# 125-2470

BUTTON-SWITCH
Usually ships in 1 day

$

$1.59

0

21

Toro Part# 121-9173

SWITCH-PUSH BUTTON
Usually ships in 1 day

$

$18.48

0

22

Toro Part# 94-4496

SCREW-PPH
Usually ships in 1 day

$

$0.91

0
