20384 - Toro Super Recycler Walk-Behind Mower (SN: 316000001 - 316999999) (2016) ENGINE AND BLADE ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

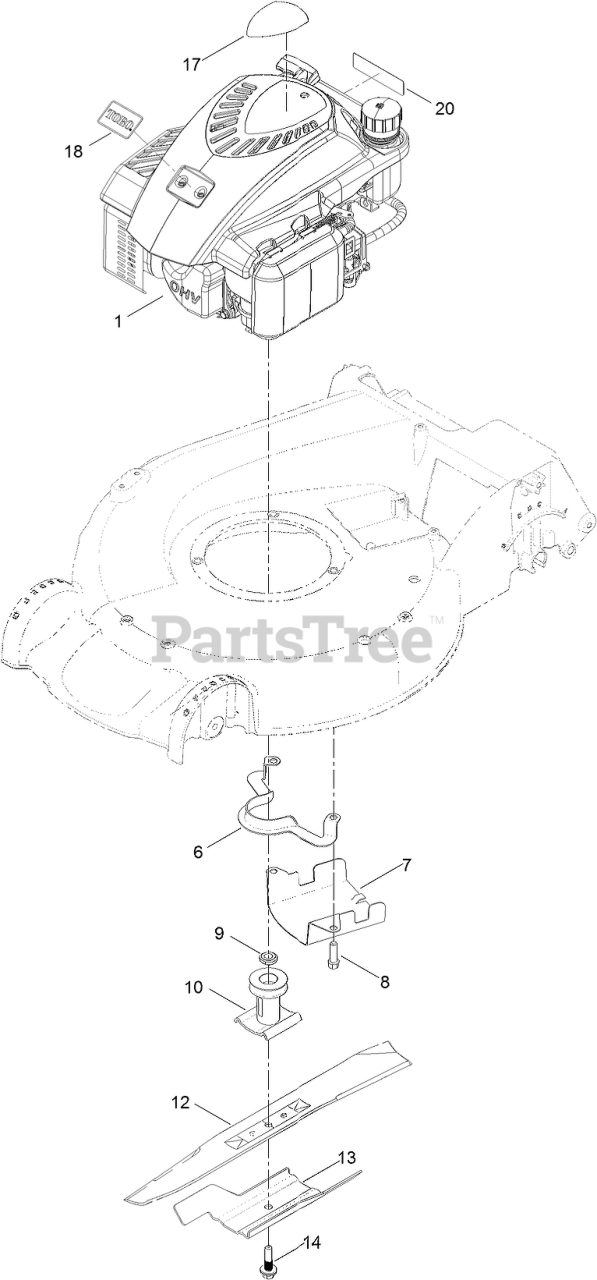

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 120-4413

ENGINE-1P65FC
Usually ships same day

Not available

$

$

6
Usually ships in 1 day

$

$12.98

0

7

Toro Part# 107-7489-03

SHIELD-GRASS
Usually ships in 1 day

$

$13.44

0

8

Toro Part# 95-1727

SCREW-TAPTITE
Usually ships in 1 day

$

$1.60

0

9

Toro Part# 106-3999

Spacer-Driver
Usually ships in 1 day

$

$2.73

0

10

Toro Part# 106-3987

DRIVER-BLADE
Usually ships in 1 day

$

$27.94

0

12

Toro Part# 108-3762-03

BLADE-RECYCLING
(Superseded to 133-8183-03)
Usually ships in 1 day

$

$22.35

0

13

Toro Part# 105-6848-03

Accelerator-Blade
Usually ships in 1 day

$

$14.68

0

14

Toro Part# 125-2466

BOLT-BLADE
Usually ships in 1 day

$

$2.23

0

17

Toro Part# 130-2360

DECAL-SHROUD
Usually ships in 5 to 8 days

$

$3.60

0

Usually ships in 1 day

$

$2.83

0

20

Toro Part# 117-2718

DECAL-ARRESTER, SPARK
Usually ships in 1 day

$

$6.42

0
