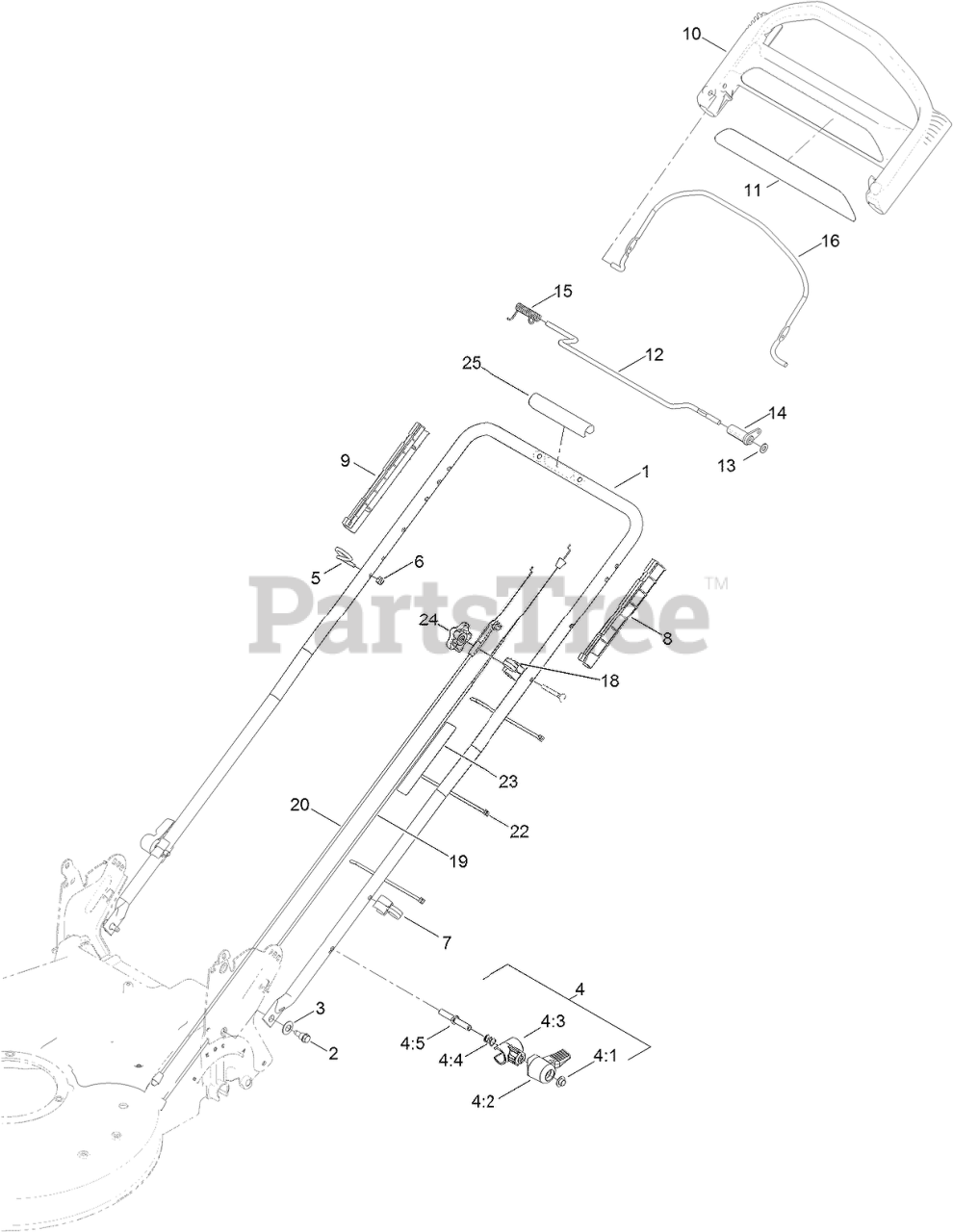

20384 - Toro Super Recycler Walk-Behind Mower (SN: 316000001 - 316999999) (2016) HANDLE ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

HANDLE ASSEMBLY Parts Diagram

  • Title
Usually ships in 5 to 8 days

$

$65.56

0

2

Toro Part# 115-1958

BOLT-SHOULDER
Usually ships in 1 day

$

$3.95

0

3

Toro Part# 112-9972

WASHER-SPRING, CONICAL
Usually ships in 1 day

$

$5.84

0

4

Toro Part# 115-2860

QUICK RELEASE ASM
Usually ships same day

Not available

$

$

4:1

Toro Part# 109-0917

NUT-PUSH
(Superseded to 32112-11)
Usually ships in 1 day

$

$1.12

0

Usually ships same day

Not available

$

$

4:3

Toro Part# 114-7996

ANCHOR-SPRING

Note: Not illustrated

Usually ships same day

Not available

$

$

4:4

Toro Part# 115-2858

SPRING-COMPRESSION
Usually ships in 5 to 8 days

$

$2.73

0

4:5

Toro Part# 114-2675

ROD-RELEASE
(Superseded to 138-3243)
Usually ships in 5 to 8 days

$

$1.74

0

5

Toro Part# 86-9671

GUIDE-ROPE
Usually ships in 1 day

$

$4.24

0

6

Toro Part# 3296-73

NUT-LOCK, NI
Usually ships in 1 day

$

$3.21

0

7

Toro Part# 114-7988

GUIDE-CABLE
Usually ships in 1 day

$

$2.26

0

8
Usually ships in 1 day

$

$6.93

0

9
Usually ships in 1 day

$

$6.93

0

10

Toro Part# 104-8678

HANDLE-CONTROL
Usually ships in 1 day

$

$66.33

0

Usually ships in 1 day

$

$6.93

0

12

Toro Part# 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)
Usually ships in 1 day

$

$13.22

0

13

Toro Part# 3256-23

WASHER-PLAIN
Usually ships in 1 day

$

$1.93

0

14

Toro Part# 99-1589

LEVER-TRACTION
Usually ships in 1 day

$

$5.91

0

15

Toro Part# 121-9118

Spring-Torsion
(Superseded to 136-7166)
Usually ships in 1 day

$

$2.23

0

16
Usually ships in 1 day

$

$12.54

0

18

Toro Part# 99-5239

ANCHOR-CABLE
(Superseded to 136-5864)
Usually ships in 1 day

$

$2.38

0

19

Toro Part# 108-8158

CABLE-TRACTION
Usually ships in 1 day

$

$33.84

0

20

Toro Part# 117-5900

CABLE-BRAKE
Usually ships in 1 day

$

$33.54

0

22

Toro Part# 614249

TIE-CABLE
Usually ships in 1 day

$

$0.83

0

23

Toro Part# 132-4470

DECAL-TRACTION, ADJUST
Usually ships in 1 day

$

$1.57

0

24

Toro Part# 131-0897

KNOB-HANDLE, LOCKING
Usually ships in 1 day

$

$3.38

0

25

Toro Part# 131-4551

HANDLE-COVER
Usually ships in 5 to 8 days

$

$1.16

0
