20384 - Toro Super Recycler Walk-Behind Mower (SN: 316000001 - 316999999) (2016) REAR WHEEL AND HEIGHT-OF-CUT ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

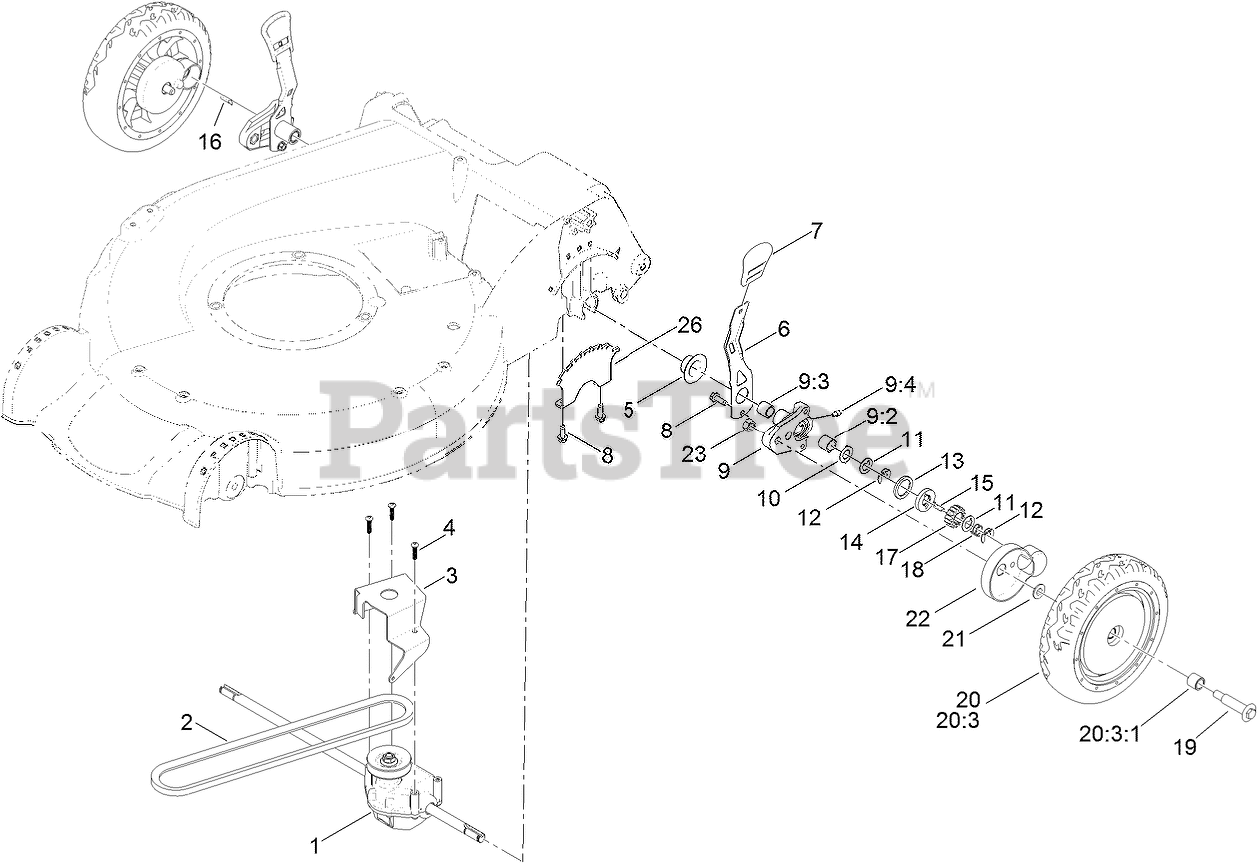

REAR WHEEL AND HEIGHT-OF-CUT ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 121-9184

TRANSMISSION ASM
Usually ships in 5 to 8 days

$

$104.05

0

Usually ships in 1 day

$

$23.47

0

3

Toro Part# 114-7977-03

BRACKET-TRANSMISSION
Usually ships in 1 day

$

$10.88

0

4

Toro Part# 108-7476

SCREW-PLASTITE
Usually ships in 1 day

$

$0.75

0

5
Usually ships same day

Not available

$

$

6

Toro Part# 107-7491

ARM-SPRING
Usually ships in 1 day

$

$10.29

0

7
Usually ships in 1 day

$

$1.11

0

8

Toro Part# 49-2040

SCREW-HWHTF
Usually ships in 1 day

$

$1.67

0

9

Toro Part# 100-8774

PIVOT ARM ASM
Usually ships in 1 day

$

$30.76

0

9:2
Usually ships in 1 day

$

$4.94

0

9:3
Usually ships in 1 day

$

$3.85

0

9:4

Toro Part# 302-56

FITTING-GREASE
Usually ships in 1 day

$

$3.27

0

10

Toro Part# 65-4730

WASHER-ARM, PIVOT
Usually ships in 1 day

$

$2.23

0

11

Toro Part# 65-4740

WASHER-THRUST, KEYED
Usually ships in 1 day

$

$2.23

0

12

Toro Part# 65-2720

RING-CLIP, LOCKING
Usually ships in 1 day

$

$1.11

0

13

Toro Part# 65-4710

RING-FRICTION
Usually ships in 1 day

$

$2.23

0

14

Toro Part# 65-4760

WASHER-CLUTCH
Usually ships in 1 day

$

$1.33

0

15

Toro Part# 66-6050

KEY-ROCKING, LH
(Superseded to 139-6644)
Usually ships in 1 day

$

$5.76

0

16

Toro Part# 66-6040

KEY-ROCKING, RH
Usually ships same day

Not available

$

$

17

Toro Part# 65-4750

GEAR-PINION
Usually ships in 1 day

$

$10.05

0

18

Toro Part# 65-4720

SPRING-COMPRESSION
Usually ships in 1 day

$

$1.11

0

19

Toro Part# 92-1057

BOLT-SHOULDER
Usually ships in 1 day

$

$3.34

0

20

Toro Part# 107-3709

WHEEL GEAR ASM
Usually ships in 1 day

$

$43.59

0

20:3

Part#

WHEEL ASM

Note: Not serviced separately

Usually ships same day

Not available

$

$

20:3:1
Usually ships in 1 day

$

$2.23

0

21

Toro Part# 74-1671

SPACER-COVER, WHEEL
Usually ships in 1 day

$

$1.24

0

22

Toro Part# 74-1660

COVER-WHEEL
Usually ships in 1 day

$

$6.71

0

23
Usually ships same day

Not available

$

$

26
Usually ships same day

Not available

$

$
