2040 - Jonsered Chainsaw (1995-11) CHAIN BRAKE CLUTCH COVER Parts Diagram

Chainsaw

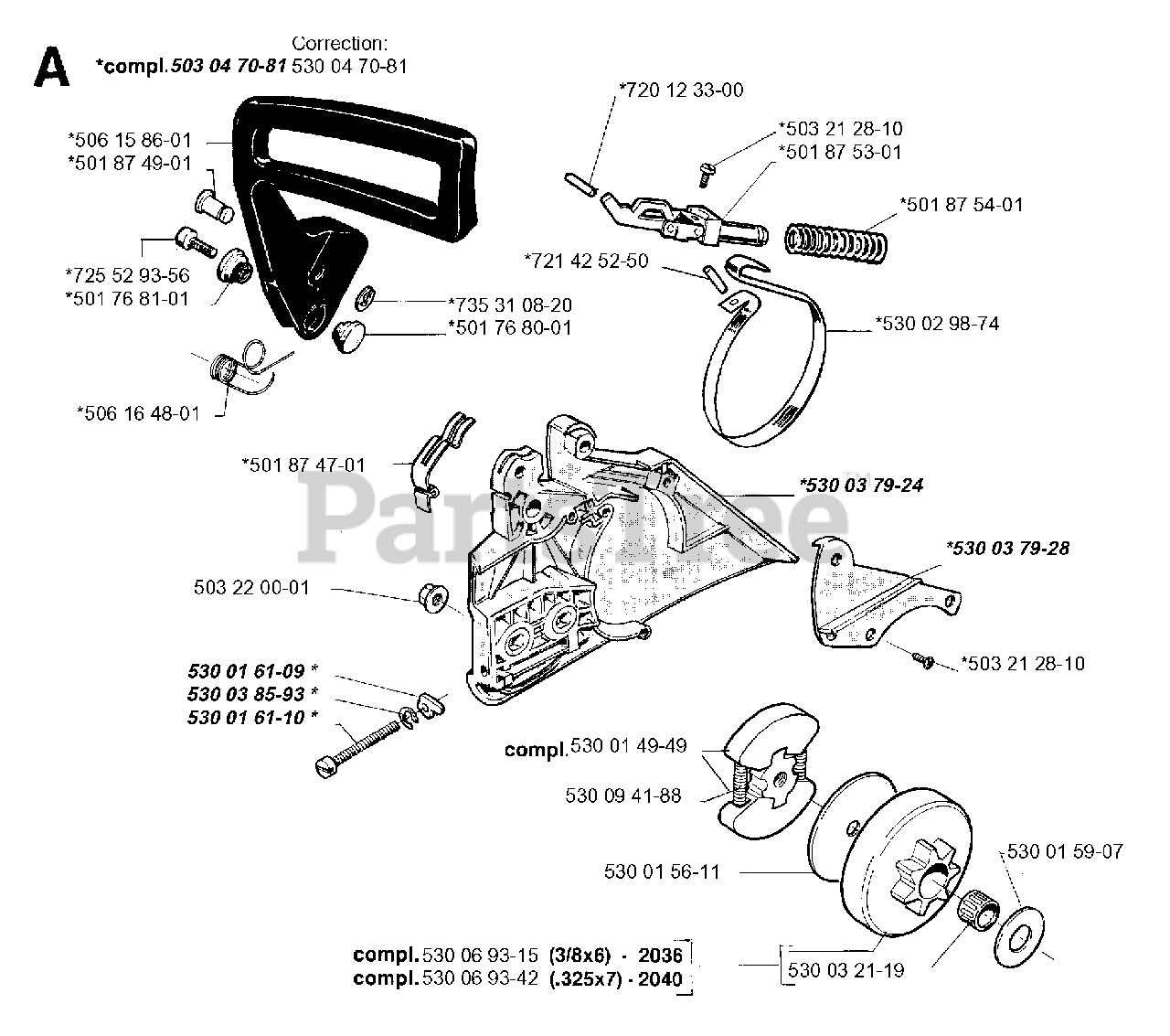

CHAIN BRAKE CLUTCH COVER Parts Diagram

  • Title

5030470-81

Jonsered 503047081

No Description Available

$

$

Not available

5300470-81

Jonsered 530047081

REPL BY 530 04 94-59
(Superseded to 530049459)

Note: CORRECTION :

$

$

Not available

5061586-01

Jonsered 506158601

HANDGUARD

$

$

Not available

5018749-01

Jonsered 501874901

PIVOT PIN
(Superseded to 503802701)

$9.49

$

In Stock, only 1 left!

0

7255293-56

Jonsered 725529356

SCREW MC6S 4X16

$5.99

$

In Stock, Qty 5

0

5017681-01

Jonsered 501768101

PIVOT SLEEVE L

$

$

Not available

5061648-01

Jonsered 506164801

SPRING

$8.99

$

In Stock, only 2 left!

0

5018747-01

Jonsered 501874701

SPRING

$7.99

$

In Stock, Qty 14

0

5032200-01

Jonsered 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

5300161-09

Jonsered 530016109

PIN-BAR ADJUST
(Superseded to 530016180)

$4.99

$

In Stock, Qty 20+

0

5300385-93

Jonsered 530038593

RETAINER

$4.99

$

In Stock, Qty 20+

0

5300161-10

Jonsered 530016110

BAR ADJUSTING SCREW

$4.99

$

In Stock, Qty 20+

0

5300693-15

Jonsered 530069315

SPUR SPROCKET
(Superseded to 530047061)

Note: (3 /8X6)- 2036

$17.99

$

In Stock, Qty 11

0

5300693-42

Jonsered 530069342

SPUR SPRKT .325 7T 36/41

Note: ( 325X7)- 2040

$40.99

$

In Stock, Qty 12

0

5300321-19

Jonsered 530032119

NEEDLE BEARINGS 36/41

$9.99

$

In Stock, Qty 10

0

5300156-11

Jonsered 530015611

FRICTION DISC,CLUTCH 36/41

$6.49

$

In Stock, Qty 20+

0

5300941-88

Jonsered 530094188

CLUTCH SPRING 36/41
(Superseded to 530014949)

$13.99

$

In Stock, Qty 19

0

5300149-49

Jonsered 530014949

CLUTCH ASSEMBLY

$13.99

$

In Stock, Qty 19

0

5017680-01

Jonsered 501768001

PIVOT SLEEVE R

$9.99

$

In Stock, Qty 13

0

7353108-20

Jonsered 735310820

E-RING 4

$4.99

$

In Stock, Qty 20+

0

7214252-50

Jonsered 721425250

SPIRAL PIN 4X12

$5.99

$

In Stock, Qty 7

0

7201233-00

Jonsered 720123300

PIN 3X10

$5.99

$

In Stock, Qty 6

0

5032128-10

Jonsered 503212810

SCREW

$3.99

$

In Stock, Qty 20+

0

5018753-01

Jonsered 501875301

KNEE-JOINT

$37.99

$

Usually ships in 3-10 days

0

5300379-24

Jonsered 530037924

REPL BY 530 05 36-66
(Superseded to 530054871)

$

$

Not available

5300159-07

Jonsered 530015907

DUST COVER 36/41

$

$

Not available

5032128-10

Jonsered 503212810

SCREW

$3.99

$

In Stock, Qty 20+

0

5300379-28

Jonsered 530037928

COVER
(Superseded to 530053126)

$

$

Not available

5300298-74

Jonsered 530029874

BRAKE BAND 36/41
(Superseded to 545137401)

$7.49

$

In Stock, Qty 15

0

5018754-01

Jonsered 501875401

SPRING

$

$

Not available
