20405x30E - Murray 20" Walk-Behind Mower (2002) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

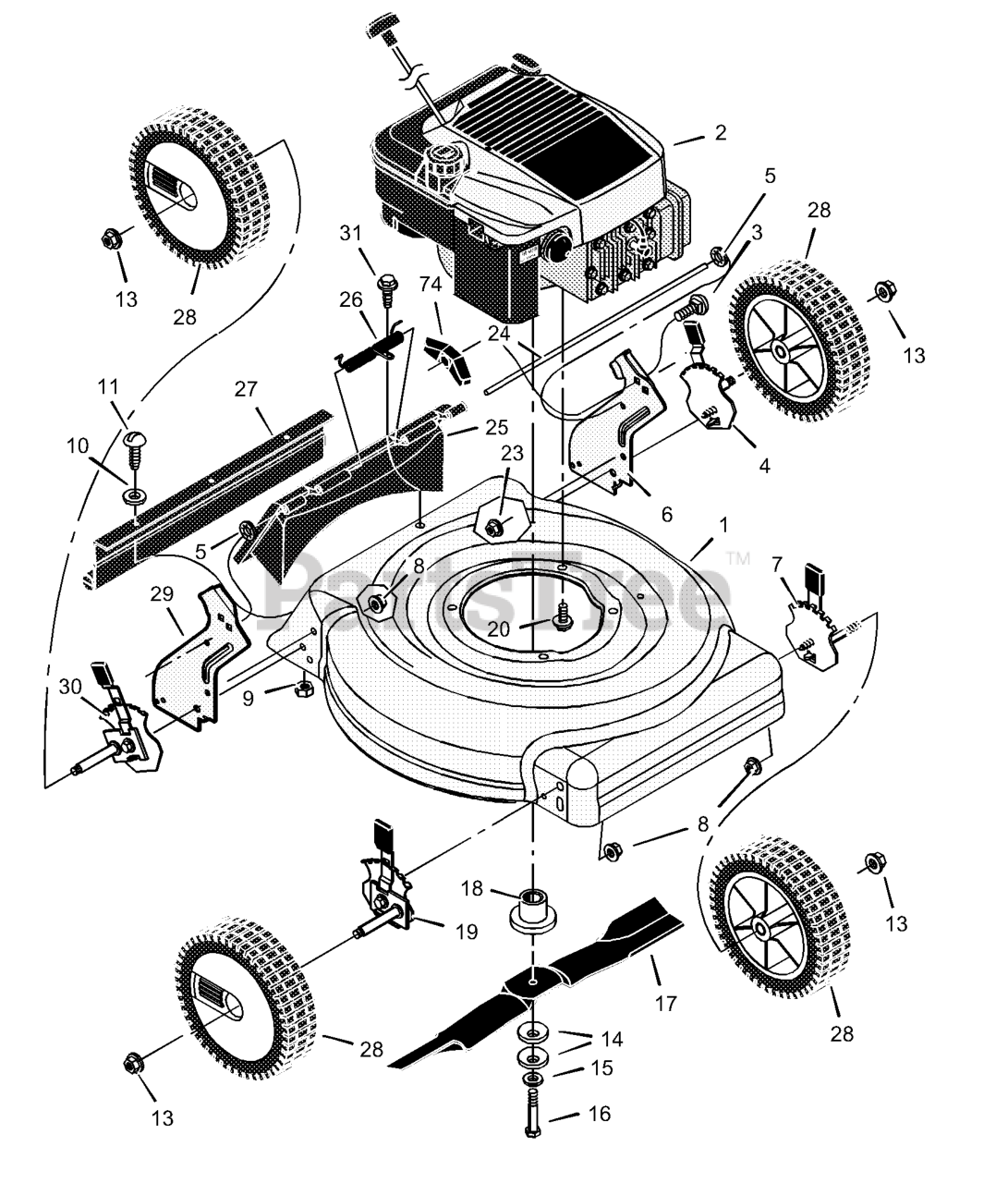

Mower Housing Assembly Parts Diagram

  • Title

1

Murray 776150MA

Housing

$

$

Not available

2

Engine *

$

$

Not available

3

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

4

Murray 672605MA

Adjuster, Left Rear Height

$25.99

$

Usually ships in 2-12 days

0

5

Murray 028X49MA

Push On Cap

Note: (Included with Ref. No. 25)

$3.99

$

In Stock, Qty 7

0

6

Murray 1101239E245

Bracket, Left Handle

$

$

Currently unavailable

7

Murray 672601MA

Adjuster, Left Front Height

$93.99

$

Usually ships in 2-12 days

0

8

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

Murray 15X102MA

Nut, Hex

$

$

Not available

10

Murray 017X38MA

Washer

$3.99

$

Usually ships in 2-12 days

0

11

Murray 00421

Screw

$

$

Currently unavailable

13

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Murray 17X137MA

Washer, Belleville

$5.49

$

In Stock, only 2 left!

0

15

Murray 17X124MA

Washer

$4.49

$

In Stock, only 2 left!

0

16

Murray 01X153MA

Bolt

$4.49

$

Usually ships in 2-12 days

0

17

Murray 672763E701MA

Blade

$27.99

$

In Stock, only 1 left!

0

18

Murray 672503MA

Adapter, Blade

$

$

Not available

19

Murray 672600MA

Adjuster, Right Front Height

$87.99

$

In Stock, only 1 left!

0

20

Murray 0025X6MA

Bolt, Engine

$5.99

$

Usually ships in 2-12 days

0

23

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

24

Murray 215X17 Z

Rod, Pivot

Note: (Included with Ref. No. 25)

$

$

Currently unavailable

25

Murray 672610

Door, Rear

$

$

Not available

26

Murray 166X44MA

Spring

Note: (Included with Ref. No. 25)

$14.99

$

Usually ships in 2-12 days

0

27

Murray 671970MA

Guard, Rear

$

$

Not available

28

Murray 672060MA

Wheel
(Superseded to 336545MA)

$34.99

$

In Stock, only 2 left!

0

29

Murray 1101238E245

Bracket, Right Handle

$

$

Not available

30

Murray 672604MA

Adjuster, Right Rear Height

$25.99

$

Usually ships in 2-12 days

0

31

Murray 26X245MA

Screw

$4.49

$

In Stock, Qty 10

0

74

Murray 071495MA

Knob

$4.99

$

In Stock, only 2 left!

0

--

Murray F-020442L

Instruction Book

$

$

Currently unavailable
