20405x31A - Scotts 20" Walk-Behind Mower (1997)

20" Walk-Behind Mower

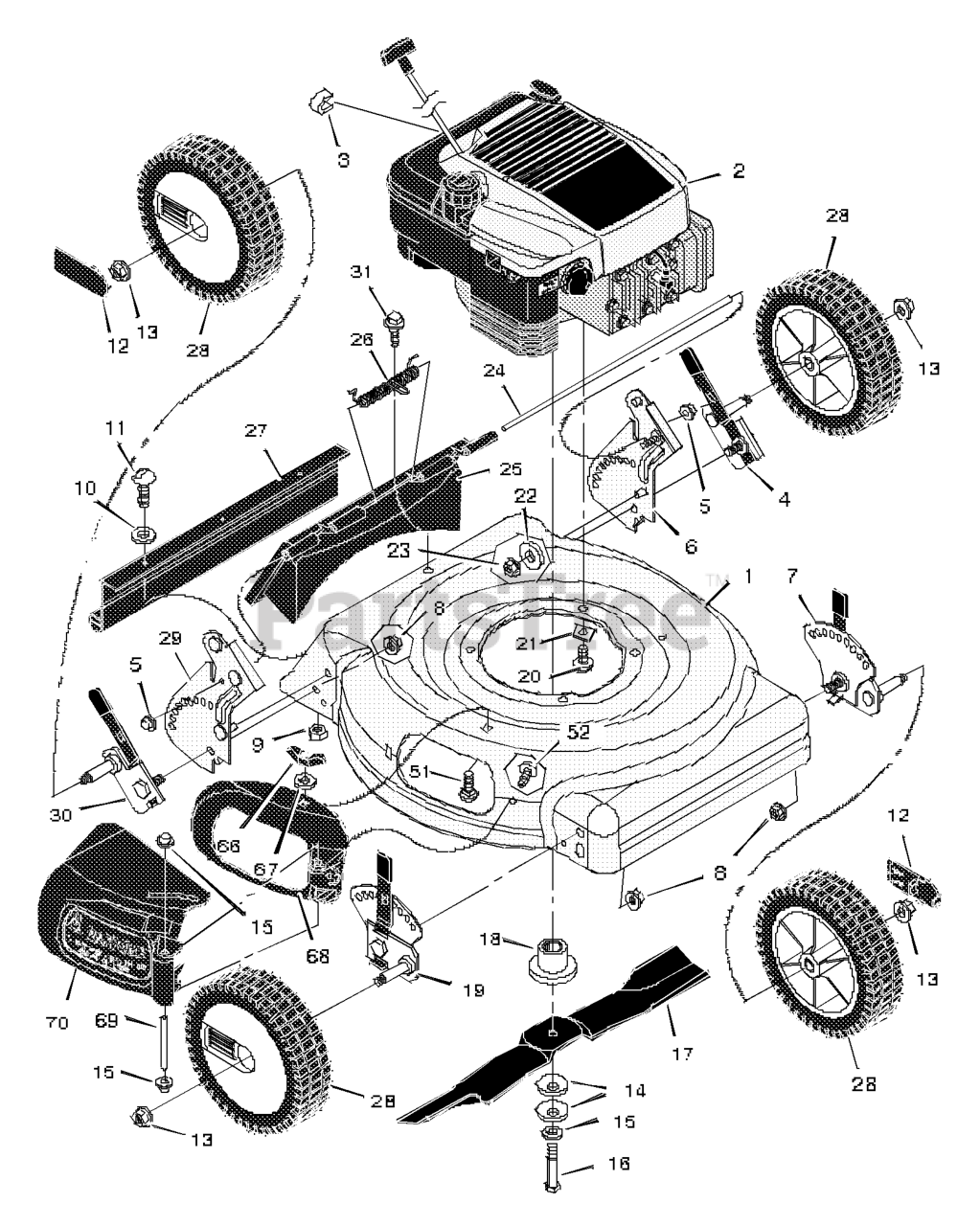

20405x31A - Scotts 20" Walk-Behind Mower (1997) > Parts Diagrams (2) > Mower Housing Assembly

  • Title
776004

1

Housing

Part# 776004

OEM Warranty Repair Part for Murray

Currently unavailable

-----

2

Engine

Part# -----

Not available

042189MA

3

Stop, Rope (Recoil - Start)

Part# 042189MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.27

671975MA

4

Adjuster, Left Height

Part# 671975MA

OEM Warranty Repair Part for Murray

Not available

028X42MA

5

Push On Cap

Part# 028X42MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.74

671943

6

Bracket, Left Handle

Part# 671943

OEM Warranty Repair Part for Murray

Currently unavailable

671973MA

7

Adjuster, Left Front Height

Part# 671973MA

OEM Warranty Repair Part for Murray

Not available

015X68MA

8

Nut, Flange

Part# 015X68MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.87

15X102MA

9

Nut, Hex

Part# 15X102MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.21

017X38MA

10

Washer

Part# 017X38MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.98

004X21MA

11

Screw

Part# 004X21MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.27

12

UNKNOWN

Part#

Not available

015X84MA

13

Nut, Flange

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70

17X137MA

14

Washer, Belleville

Part# 17X137MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.73

17X124MA

15

Washer

Part# 17X124MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.98

17X142MA

16

Bolt

Part# 17X142MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.50

671921E701

17

Blade

Part# 671921E701

OEM Warranty Repair Part for Murray

Currently unavailable

071056MA

18

Adapter, Blade

Part# 071056MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $7.64

671972MA

19

Adjuster, Right Front Height

Part# 671972MA

OEM Warranty Repair Part for Murray

Not available

0025X6MA

20

Bolt, Engine

Part# 0025X6MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.97

671989

21

Support, Engine

Part# 671989

OEM Warranty Repair Part for Murray

Currently unavailable

17X146MA

22

Washer

Part# 17X146MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.50

015X79MA

23

Nut, Flange

Part# 015X79MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.03

215X17  Z

24

Rod, Pivot

Part# 215X17 Z

OEM Warranty Repair Part for Murray

Currently unavailable

671915

25

Door, Rear

Part# 671915

OEM Warranty Repair Part for Murray

Not available

166X44MA

26

Spring

Part# 166X44MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $10.21

671970MA

27

Guard, Rear

Part# 671970MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $10.15

672060MA

28

Wheel

Part# 672060MA (Superseded to 336545MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $23.92

671944

29

Bracket, Right Handle

Part# 671944

OEM Warranty Repair Part for Murray

Currently unavailable

671974MA

30

Adjuster, Right Height

Part# 671974MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $15.34

26X259MA

31

Screw

Part# 26X259MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.27

002X16MA

51

Bolt, Carriage

Part# 002X16MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.33

26X221MA

52

Screw

Part# 26X221MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.86

071495MA

66

Wingnut

Part# 071495MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.44

028X64MA

67

Retainer, Push

Part# 028X64MA

OEM Warranty Repair Part for Murray

Not available

671926

68

Bezel

Part# 671926

OEM Warranty Repair Part for Murray

Not available

215X18  Z

69

Pin, Pivot

Part# 215X18 Z

OEM Warranty Repair Part for Murray

Currently unavailable

671927

70

Deflector, Chute

Part# 671927

OEM Warranty Repair Part for Murray

Not available

F-97483

--

Instruction Book

Part# F-97483

OEM Warranty Repair Part for Murray

Currently unavailable
