20406x50B - Murray 20" Walk-Behind Mower (1998) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

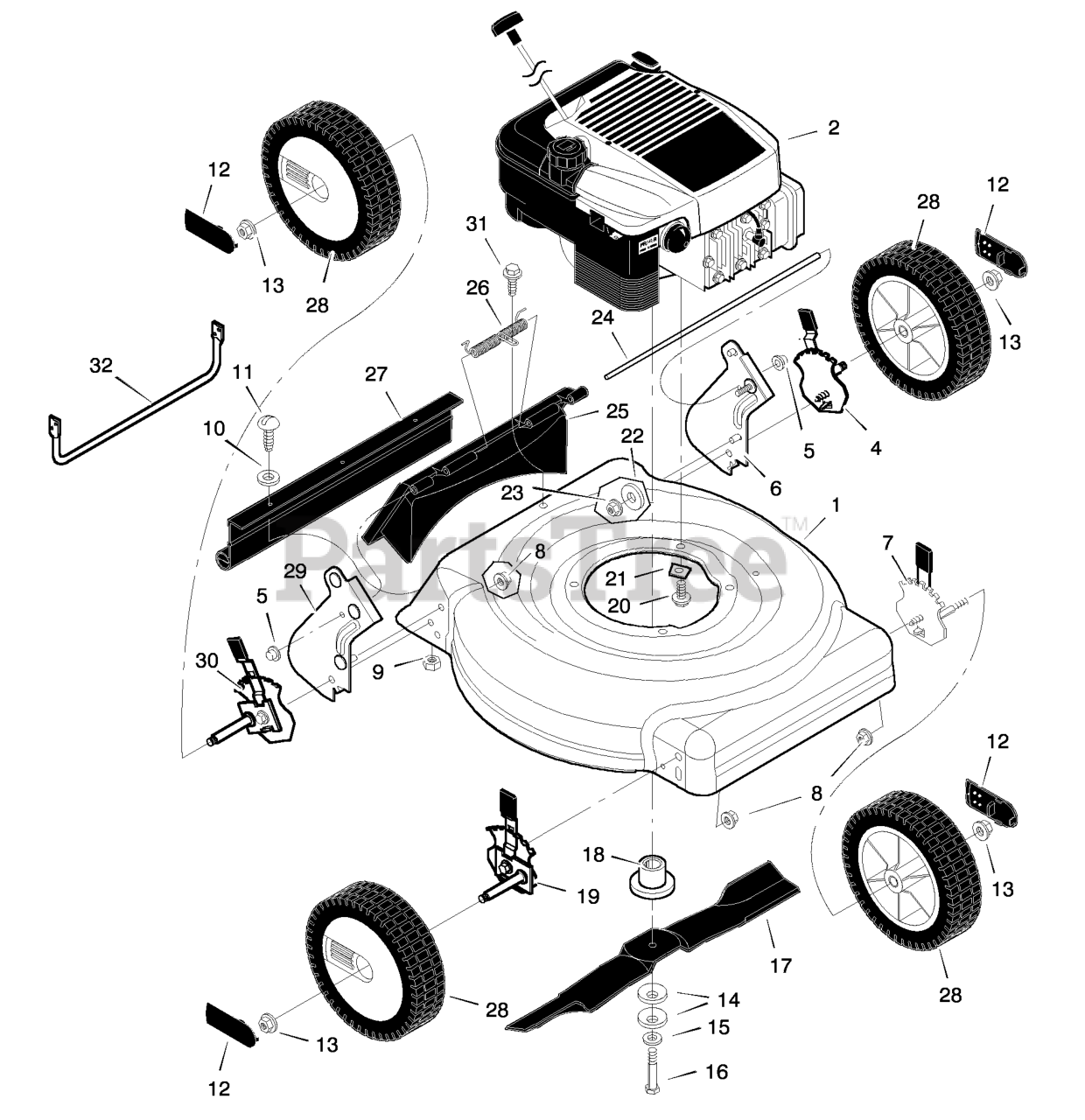

Mower Housing Assembly Parts Diagram

  • Title

1

Murray 776005

Housing

$

$

Currently unavailable

2

Engine

$

$

Not available

3

Murray 042189MA

Stop, Rope (Recoil - Start)

$3.99

$

Usually ships in 2-12 days

0

4

Murray 672605MA

Adjuster, Left Rear Height

$23.99

$

Usually ships in 2-12 days

0

5

Murray 028X49MA

Push On Cap

$3.99

$

In Stock, Qty 13

0

6

Murray 672591

Bracket, Left Handle

$

$

Currently unavailable

7

Murray 672601MA

Adjuster, Left Front Height

$87.99

$

Usually ships in 2-12 days

0

8

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

Murray 15X102MA

Nut, Hex

$3.99

$

Usually ships in 2-12 days

0

10

Murray 017X38MA

Washer

$3.99

$

Usually ships in 2-12 days

0

11

Murray 004X21MA

Screw

$3.99

$

Usually ships in 2-12 days

0

12

Murray 043847MA

Hub Cap

Note: (Optional)

$4.49

$

Usually ships in 2-12 days

0

13

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

15

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

16

Murray 01X153MA

Bolt

$4.49

$

Usually ships in 2-12 days

0

17

Murray 671921E701

Blade

$

$

Not available

18

Murray 672503MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

19

Murray 672600MA

Adjuster, Right Front Height

$82.99

$

In Stock, only 1 left!

0

20

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

21

Murray 671989

Support, Engine

$

$

Currently unavailable

22

Murray 17X146MA

Washer

$5.49

$

Usually ships in 2-12 days

0

23

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

24

Murray 215X17 Z

Rod, Pivot

$

$

Currently unavailable

25

Murray 672613

Door, Rear

$49.99

$

Usually ships in 2-12 days

0

26

Murray 166X44MA

Spring

$14.99

$

In Stock, only 3 left!

0

27

Murray 671970MA

Deflector, Rear

$13.99

$

Usually ships in 2-12 days

0

28

Murray 071134MA

Wheel

$34.99

$

Usually ships in 2-12 days

0

29

Murray 672590

Bracket, Right Handle

$

$

Currently unavailable

30

Murray 672604MA

Adjuster, Right Rear Height

$24.99

$

Usually ships in 2-12 days

0

31

Murray 26X259MA

Screw

$4.49

$

Usually ships in 2-12 days

0

32

Murray 671990

Guard, Rear

$

$

Not available

--

Murray F-98593

Instruction Book

$

$

Currently unavailable
