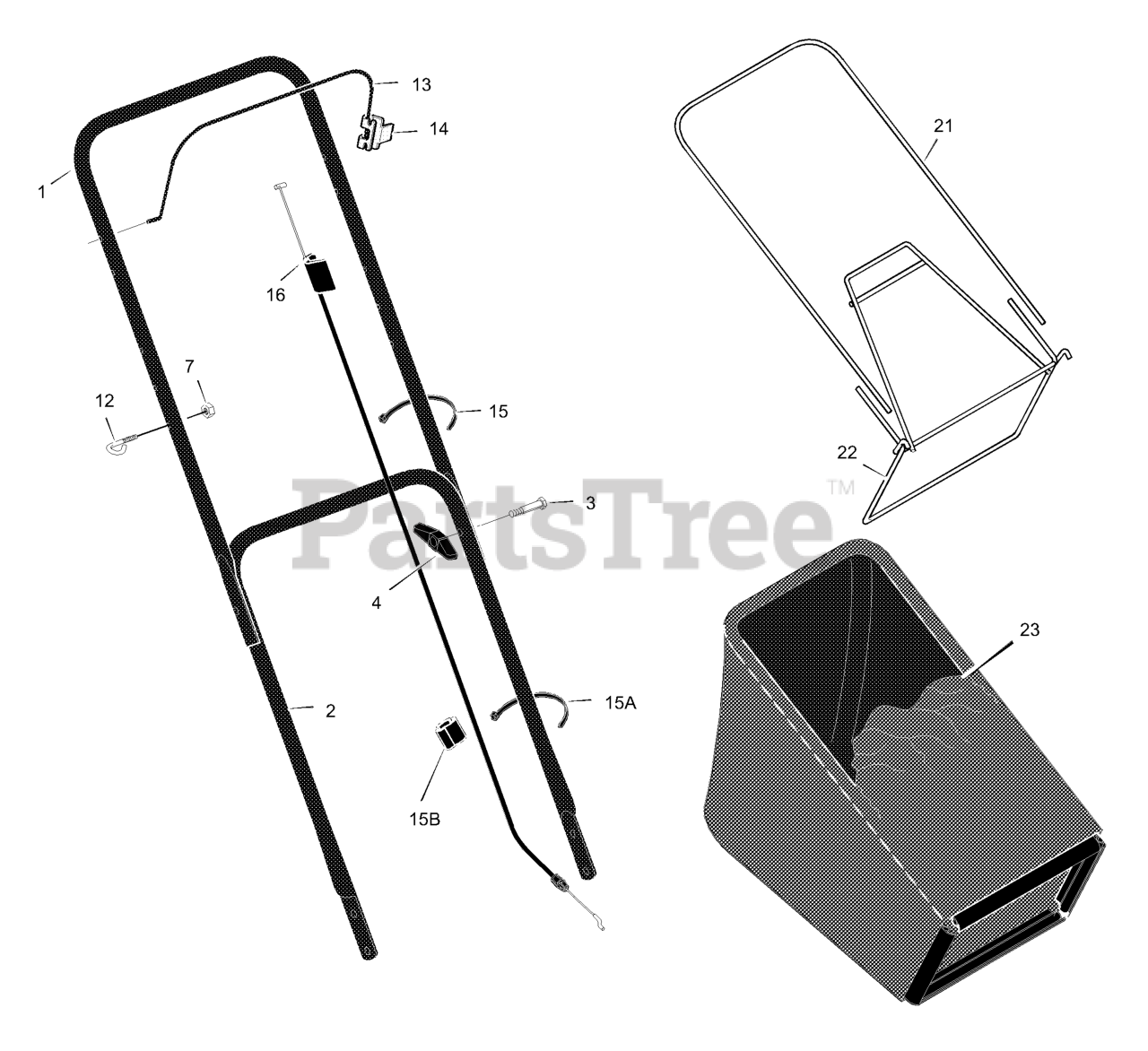

20415x14B - Murray 20" Walk-Behind Mower (2001) Handle & Bag Assembly Parts Diagram

20" Walk-Behind Mower

Handle & Bag Assembly Parts Diagram

  • Title

1

Murray 671918E701

Handle, Upper (Black)

$11.99

$

Usually ships in 2-12 days

0

2

Murray 672874E701MA

Handle, Lower (Black)

$

$

Not available

3

Murray 002X77MA

Bolt

$3.99

$

In Stock, Qty 11

0

4

Murray 071294

Knob, Plastic
(Superseded to 703065)

$7.49

$

In Stock, Qty 20+

0

7

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

12

Murray 071530MA

Guide, Rope

$6.49

$

Usually ships in 2-12 days

0

13

Murray 671924E700

Engine Stop Lever

$

$

Not available

14

Murray 43628 BC

Bracket, Stop Lever

$

$

Currently unavailable

15A

Murray 071372MA

Tie, Cable

$4.49

$

In Stock, only 1 left!

0

15B

Murray 1101352

Fastener, Single Cable

$6.49

$

In Stock, only 1 left!

0

16

Murray 1101360MA

Engine Stop Cable

$13.99

$

Usually ships in 2-12 days

0

17

Murray 0031X9MA

Pin, Hair

$3.49

$

Usually ships in 2-12 days

0

21

Murray 071592MA

Frame, Top

$

$

Not available

22

Murray 672905MA

Frame Assembly

$153.99

$

In Stock, only 1 left!

0

23

Murray 1101030MA

Bag, Cloth
(Superseded to 1101031MA)

$174.99

$

Usually ships in 2-12 days

0
