2042 LS (960430062-00) - Husqvarna 42" Lawn Tractor (2008-11) Engine / Fuel Tank Parts Diagram

42" Lawn Tractor

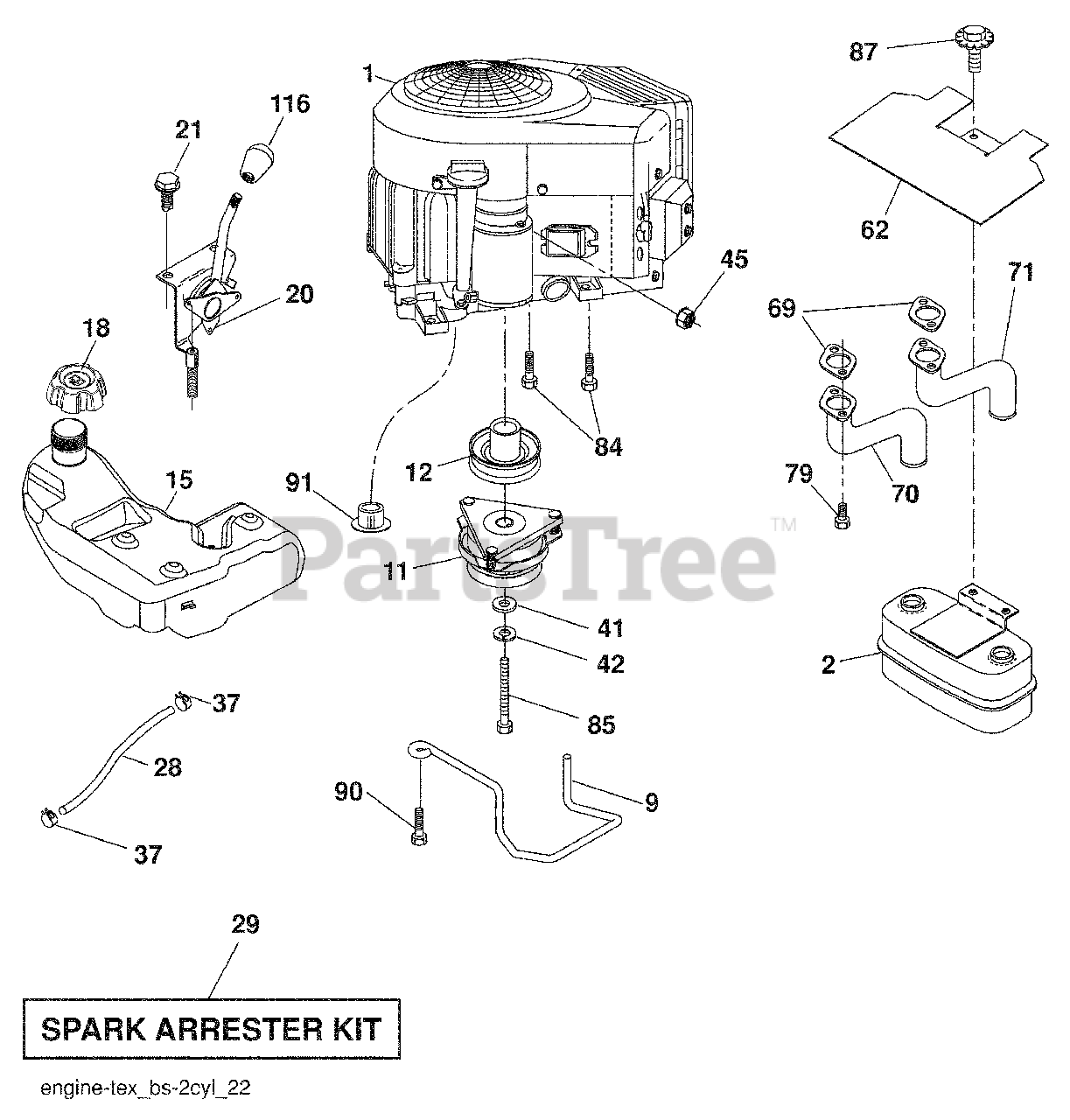

Engine / Fuel Tank Parts Diagram

  • Title

1

Engine Briggs Model No. 40G777

$

$

Not available

2

Husqvarna 532149723

Muffler

$51.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532194320

Keeper Belt Engine
(Superseded to 596501502)

$13.99

$

In Stock, only 3 left!

0

11

Husqvarna 532180505

Clutch Electric
(Superseded to 583389701)

$398.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532405097

Pulley Engine

$62.99

$

In Stock, only 2 left!

0

15

Husqvarna 532400021

Tank Fuel
(Superseded to 532442448)

$

$

Not available

18

Husqvarna 532194267

Cap Asm
(Superseded to 532439645)

$20.99

$

In Stock, Qty 6

0

20

Husqvarna 532424340

Control Throttle
(Superseded to 586219601)

$68.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532416358

Screw #10 x .750 BOS Thread

$

$

Not available

28

Husqvarna 532401135

Fuel Line
(Superseded to 587044864)

$26.99

$

In Stock, only 1 left!

0

29

Husqvarna 532137180

Spark Arrester Kit

$193.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

Clamp Hose

$3.99

$

In Stock, only 4 left!

0

41

Husqvarna 532126197

Washer 1-1/2 OD x 15/32 ID x .250

$7.99

$

In Stock, only 3 left!

0

42

Husqvarna 810040700

Washer Lock 7/16
(Superseded to 596238901)

$3.49

$

In Stock, Qty 17

0

45

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

62

Husqvarna 532146629

Heat Shield
(Superseded to 531154901)

$13.99

$

In Stock, only 2 left!

0

69

Husqvarna 532165391

Gasket

$4.99

$

In Stock, Qty 20+

0

70

Husqvarna 532159955

Tube Exhaust
(Superseded to 581881101)

$34.99

$

In Stock, Qty 5

0

71

Husqvarna 532160589

Exhaust Tube
(Superseded to 581881001)

$28.99

$

In Stock, only 3 left!

0

79

Husqvarna 532183906

Screw Socket HP 5/16-18 x 1
(Superseded to 596134202)

$3.49

$

In Stock, Qty 19

0

84

Husqvarna 817060620

Screw 3/8-16 x 1-1/4

$6.99

$

In Stock, Qty 9

0

85

Husqvarna 532173937

Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 Thr
(Superseded to 501606501)

$3.49

$

In Stock, Qty 14

0

87

Husqvarna 537171877

Bolt 5/16-18 unc x 3/4 w/Sems
(Superseded to 532171877)

$5.99

$

In Stock, only 2 left!

0

90

Husqvarna 817000616

Screw 3/8-16 x 1

$6.99

$

In Stock, Qty 11

0

91

Husqvarna 532187495

Bushing 1.375 OD

$5.99

$

Usually ships in 3-10 days

0

116

Husqvarna 532424659

Knob Soft Touch
(Superseded to 539132624)

$7.99

$

In Stock, Qty 5

0
