204210x30B - Murray 20" Walk-Behind Mower (2004) Handle & Bag Assembly Parts Diagram

20" Walk-Behind Mower

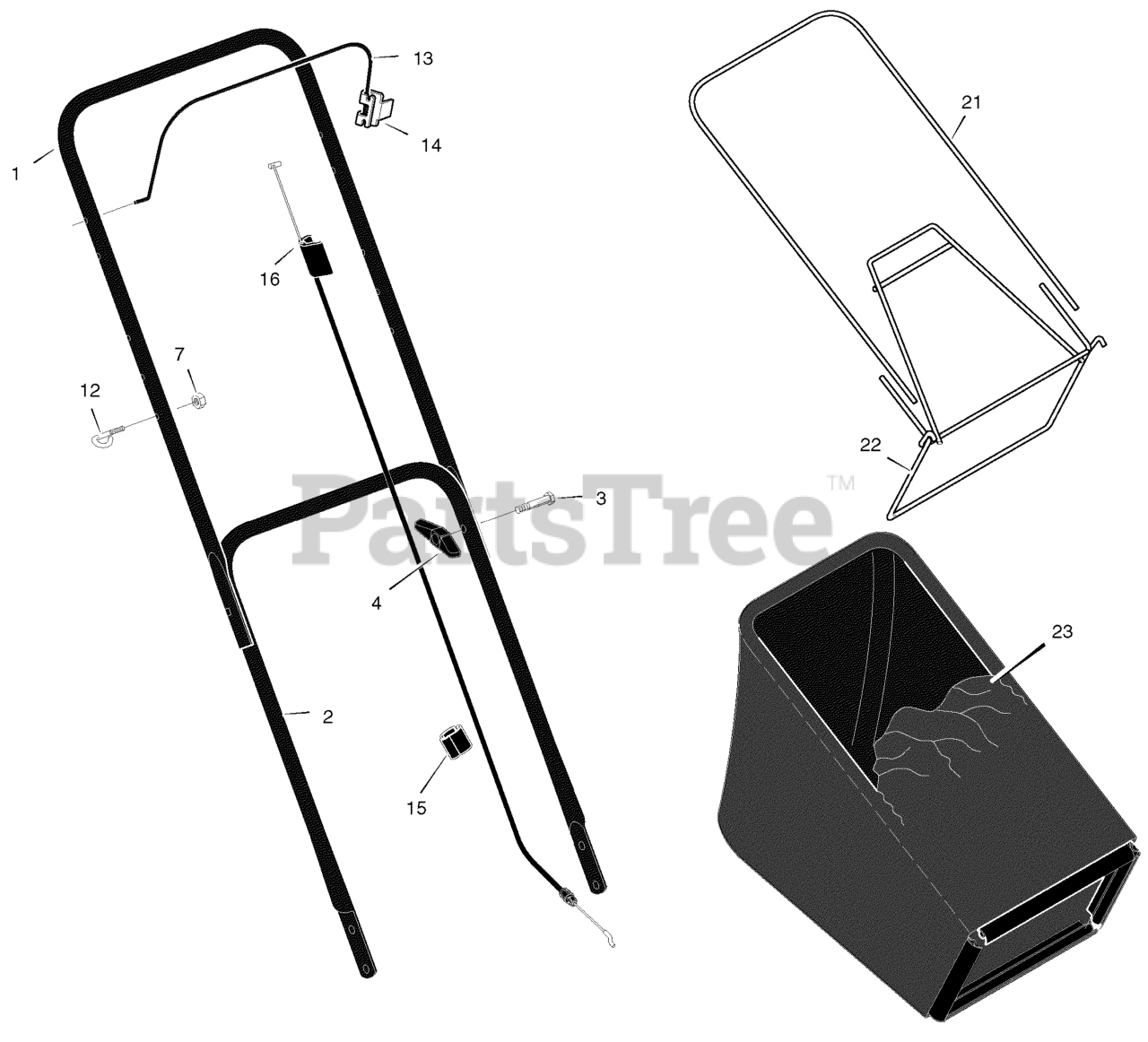

Handle & Bag Assembly Parts Diagram

  • Title

1

Murray 1101555E701

Handle, Upper, Black

$

$

Not available

2

Murray 672874E701

Handle, Lower, Black

$113.99

$

Usually ships in 2-12 days

0

3

Murray 002X77

Bolt

$3.99

$

In Stock, Qty 6

0

4

Murray 71294

Knob, Plastic

$7.99

$

In Stock, only 3 left!

0

7

Murray 15X116

Locknut

$4.49

$

In Stock, Qty 20+

0

12

Murray 71530

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

13

Murray 671924E701

Engine Stop Lever

$

$

Not available

14

Murray 1101454

Bracket, Stop Lever

$20.99

$

In Stock, only 2 left!

0

15

Murray 1101353

Fastener, Cable

$5.99

$

In Stock, only 2 left!

0

16

Murray 1101360

Engine Stop Cable

$12.99

$

Usually ships in 2-12 days

0

21

Murray 71592

Frame, Top

$

$

Not available

22

Murray 672905

Frame Assembly

$

$

Not available

23

Murray 1101031

Bag, Cloth

$164.99

$

Usually ships in 2-12 days

0
