204210x31C - Scotts 20" Walk-Behind Mower (2004) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

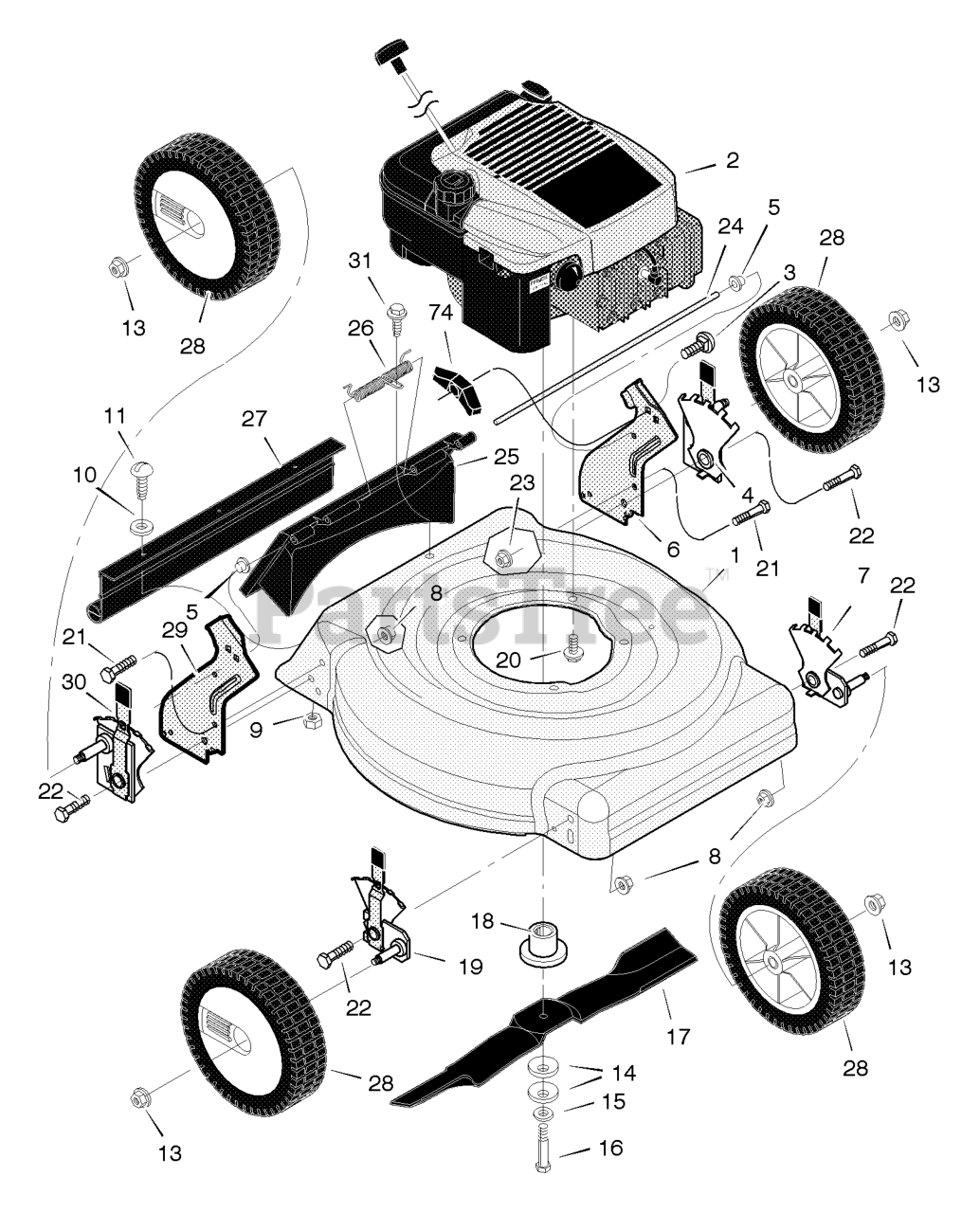

Mower Housing Assembly Parts Diagram

  • Title
1

Murray 776150MA

Housing

$234.99

$

Usually ships in 2-12 days

0

2

Engine *

$

$

Not available

3

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

4

Murray 1101901

Adjuster, Left Rear Height

$

$

Currently unavailable

5

Murray 028X49MA

Push Retainer

Note: (Included with Ref. No. 25)

$3.99

$

In Stock, Qty 13

0

6

Murray 1101239E700

Bracket, Left Handle

$

$

Not available

7

Murray 1101899

Adjuster, Left Front Height

$

$

Currently unavailable

8

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

Murray 15X102MA

Nut, Hex

$3.99

$

Usually ships in 2-12 days

0

10

$3.99

$

Usually ships in 2-12 days

0

11

$3.99

$

Usually ships in 2-12 days

0

13

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 11

0

14

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

15

$4.49

$

Usually ships in 2-12 days

0

16

$4.49

$

Usually ships in 2-12 days

0

$26.99

$

In Stock, only 2 left!

0

18

Murray 672503MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

19

Murray 1101898

Adjuster, Right Front Height

$

$

Currently unavailable

20

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

21

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

22

$3.49

$

Usually ships in 2-12 days

0

23

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

24

Murray 215X17 Z

Rod, Pivot

Note: (Included with Ref. No. 25)

$

$

Currently unavailable

25

Murray 672611

Door, Rear

$95.99

$

Usually ships in 2-12 days

0

26

Murray 166X44MA

Spring

Note: (Included with Ref. No. 25)

$14.99

$

In Stock, only 1 left!

0

27

Murray 671910

Guard, Rear

$131.99

$

Usually ships in 2-12 days

0

28

Murray 672060MA

Wheel
(Superseded to 336545MA)

$33.99

$

Usually ships in 2-12 days

0

29

Murray 1101238E700

Bracket, Right Handle

$

$

Not available

30

Murray 1101900

Adjuster, Right Rear Handle

$

$

Not available

31

$4.49

$

In Stock, Qty 6

0

74

$4.99

$

In Stock, only 3 left!

0

--

Murray F-040426L

Instruction Book

$

$

Currently unavailable
