204210x8C - Scotts 20" Walk-Behind Mower (2004) Handle And Bag Assembly Parts Diagram

20" Walk-Behind Mower

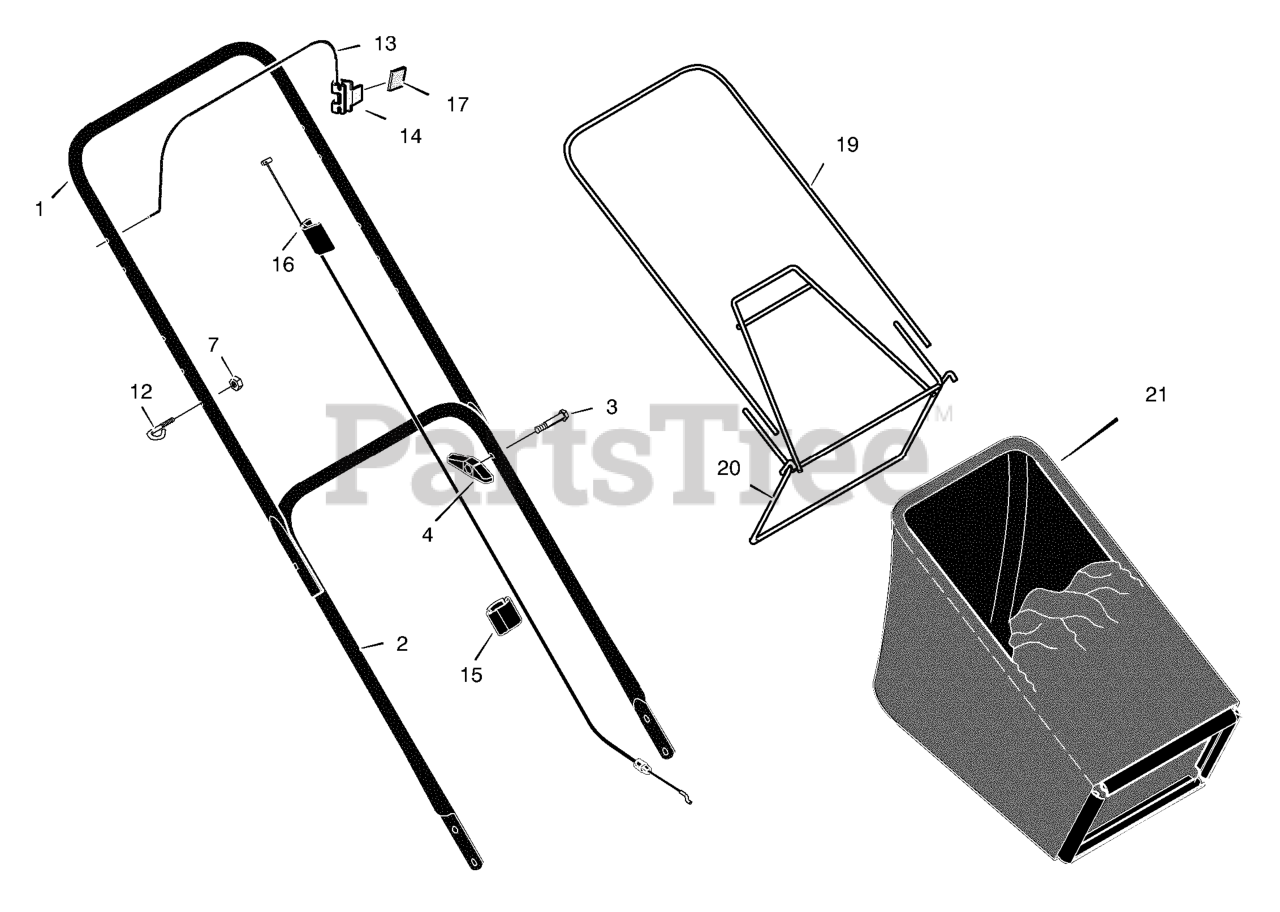

Handle And Bag Assembly Parts Diagram

  • Title

1

Murray 1101828E701MA

Handle, Upper (Black)

$25.99

$

Usually ships in 2-12 days

0

2

Murray 672874E701MA

Handle, Lower (Black)

$113.99

$

Usually ships in 2-12 days

0

3

Murray 002X77MA

Bolt

$3.99

$

In Stock, Qty 6

0

4

Murray 071294

Knob, Plastic
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

7

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

12

Murray 071530MA

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

13

Murray 671924E701MA

Engine Stop Lever
(Superseded to 7101742AYP)

$6.49

$

Usually ships in 2-12 days

0

14

Murray 1101454

Bracket, Stop Lever

$20.99

$

In Stock, only 2 left!

0

15

Murray 1101353MA

Fastener, Cable

$5.99

$

In Stock, only 2 left!

0

16

Murray 1101362MA

Engine Stop Cable

$25.99

$

In Stock, only 1 left!

0

17

Murray 1101115MA

Sleeve

$3.99

$

In Stock, only 1 left!

0

19

Murray 71592

Frame, Top

$

$

Not available

20

Murray 672905MA

Frame Assembly

$153.99

$

In Stock, only 1 left!

0

21

Murray 1101003

Bag, Cloth - Black

$164.99

$

Usually ships in 2-12 days

0
