204210x8D - Scotts 20" Walk-Behind Mower (2004)

20" Walk-Behind Mower

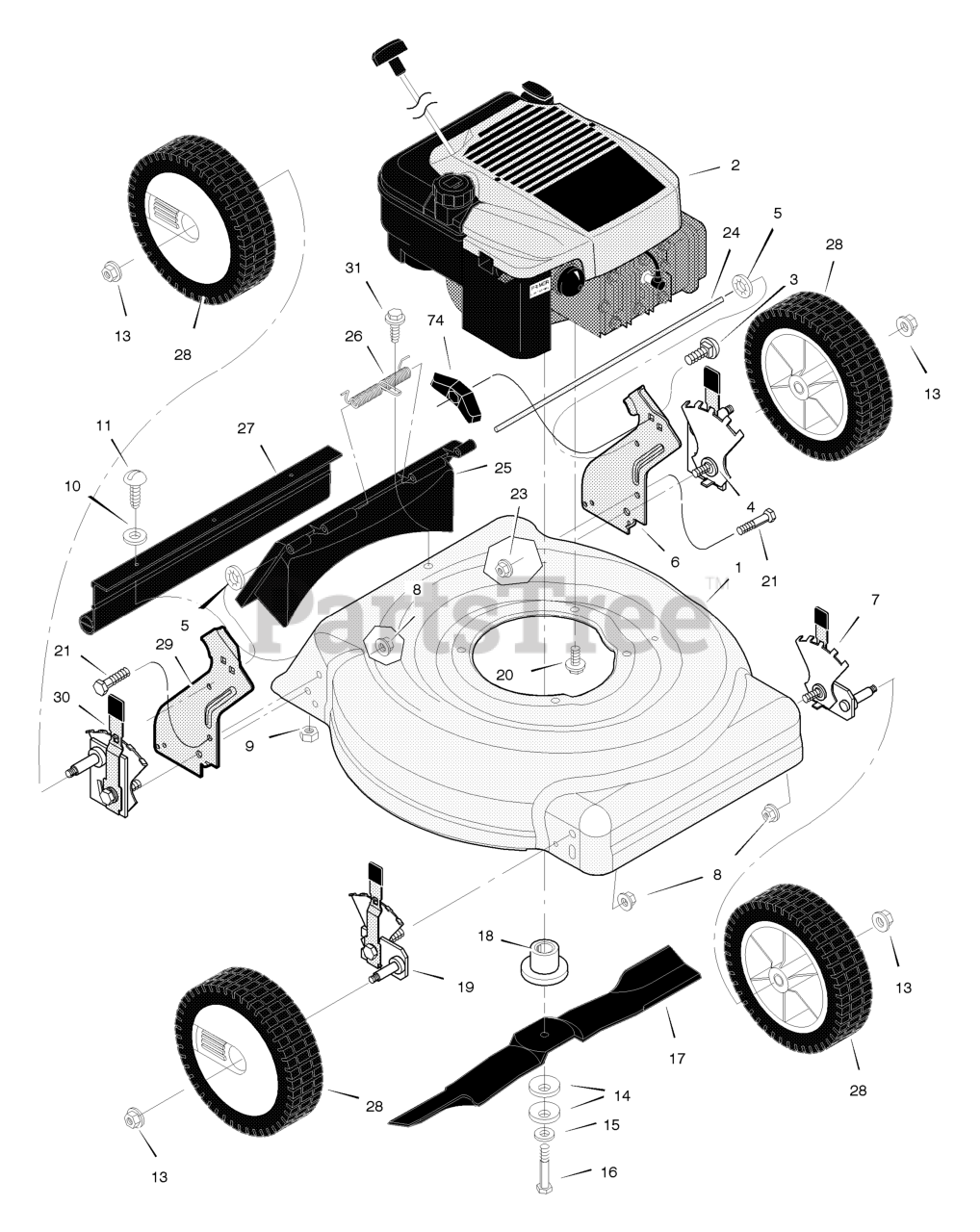

204210x8D - Scotts 20" Walk-Behind Mower (2004) > Parts Diagrams (2) > Mower Housing Assembly

  • Title
776150MA

1

Housing

Part# 776150MA

OEM Warranty Repair Part for Murray

Not available

-----

2

Engine *

Part# -----

Not available

002X81MA

3

Bolt, Carriage

Part# 002X81MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

1102035MA

4

Adjuster, Left Rear Height

Part# 1102035MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $28.88

028X49MA

5

Retainer, Push

Part# 028X49MA

Note: (Included with Ref. No. 25)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.92

1101239E700

6

Bracket, Left Handle

Part# 1101239E700

OEM Warranty Repair Part for Murray

Not available

1102033MA

7

Adjuster, Left Front Height

Part# 1102033MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $75.60

015X68MA

8

Nut, Flange

Part# 015X68MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.87

15X102MA

9

Nut, Hex

Part# 15X102MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.21

017X38MA

10

Washer

Part# 017X38MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.98

004X21MA

11

Screw

Part# 004X21MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.27

015X84MA

13

Nut, Flange

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70

17X137MA

14

Washer, Belleville

Part# 17X137MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.73

17X124MA

15

Washer

Part# 17X124MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.98

01X153MA

16

Bolt

Part# 01X153MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.03

672763E701MA

17

Blade

Part# 672763E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $20.48

672503MA

18

Adapter, Blade

Part# 672503MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $8.69

1102032MA

19

Adjuster, Right Front Height

Part# 1102032MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $75.72

0025X6MA

20

Bolt, Engine

Part# 0025X6MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.97

001X45MA

21

Bolt

Part# 001X45MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.02

015X79MA

23

Nut, Flange

Part# 015X79MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.03

215X17  Z

24

Rod, Pivot

Part# 215X17 Z

Note: (Included with Ref. No. 25)

OEM Warranty Repair Part for Murray

Currently unavailable

672610

25

Door, Rear (Black)

Part# 672610

OEM Warranty Repair Part for Murray

Not available

166X44MA

26

Spring

Part# 166X44MA

Note: (Included with Ref. No. 25)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $10.21

671970MA

27

Guard, Rear

Part# 671970MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $10.15

672060MA

28

Wheel & Tire

Part# 672060MA (Superseded to 336545MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $23.92

1101238E700

29

Bracket, Right Handle

Part# 1101238E700

OEM Warranty Repair Part for Murray

Not available

1102034MA

30

Adjuster, Right Rear Height

Part# 1102034MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $60.78

26X245MA

31

Screw

Part# 26X245MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.15

071495MA

74

Knob

Part# 071495MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.44

F-040454L

--

Instruction Book

Part# F-040454L

OEM Warranty Repair Part for Murray

Currently unavailable
