204212x92B - Briggs & Stratton 20" Walk-Behind Mower (2005) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

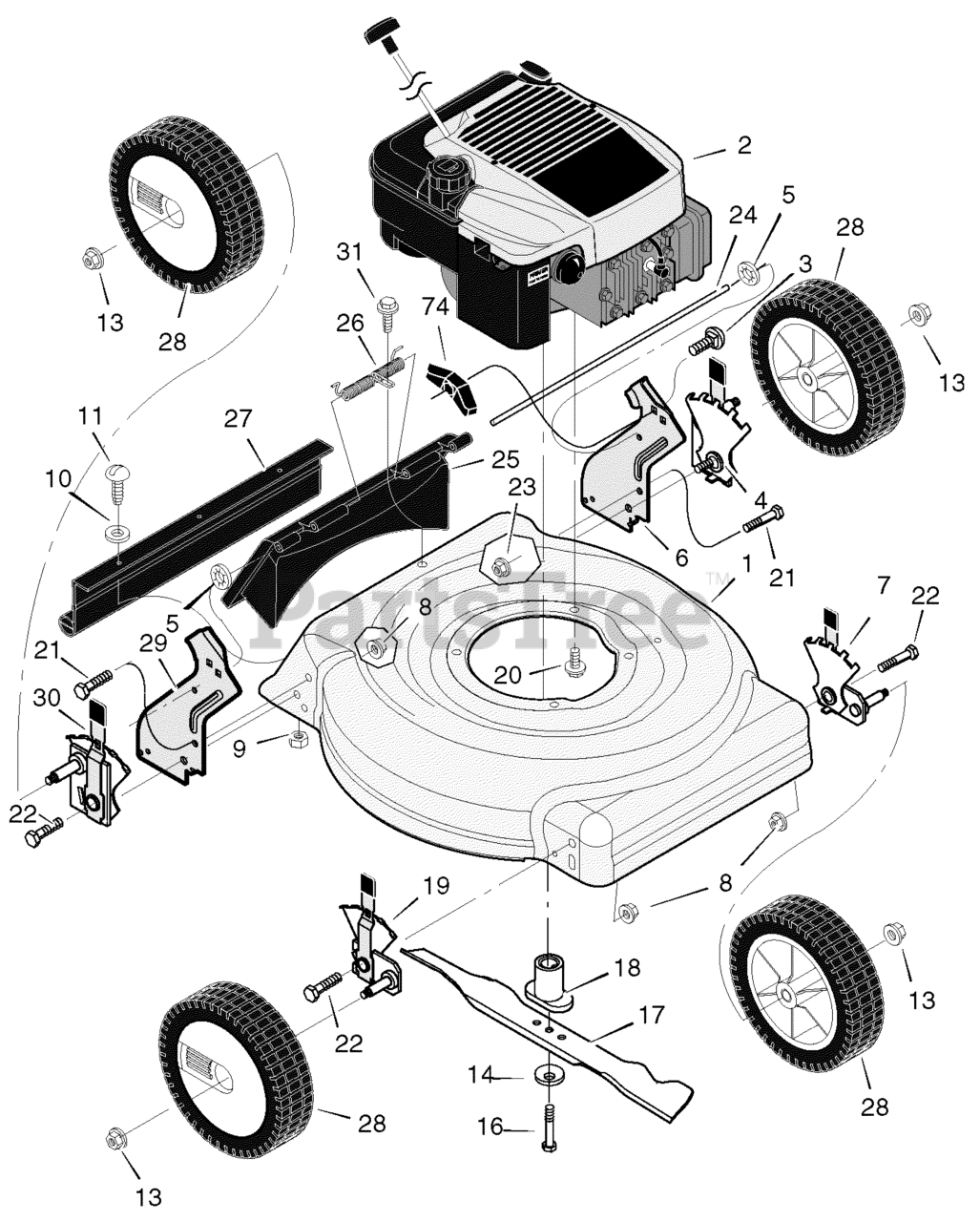

Mower Housing Assembly Parts Diagram

  • Title

1

Murray 776150

Housing

$234.99

$

Usually ships in 2-12 days

0

2

Engine *

$

$

Not available

3

Murray 002X81

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

4

Murray 1102201

Adjuster, Left Rear Height

$

$

Currently unavailable

5

Murray 028X49

Nut, Push **

$3.99

$

In Stock, Qty 13

0

6

Murray 1101239E700

Bracket, Left Handle

$

$

Not available

7

Murray 1102105

Adjuster, Left Front Height

$

$

Currently unavailable

8

Murray 015X68

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

Murray 15X102

Nut, Hex

$3.99

$

Usually ships in 2-12 days

0

10

Murray 017X38

Washer
(Superseded to 017X38MA)

$3.99

$

Usually ships in 2-12 days

0

11

Murray 004X21

Screw
(Superseded to 004X21MA)

$3.99

$

Usually ships in 2-12 days

0

13

Murray 015X84

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Murray 1101989

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

16

Murray 01X153

Bolt

$4.49

$

Usually ships in 2-12 days

0

17

Murray 1101822E701

Blade

$26.99

$

Usually ships in 2-12 days

0

18

Murray 1101824

Adapter, Blade

$8.99

$

Usually ships in 2-12 days

0

19

Murray 1102104

Adjuster, Right Front Height

$

$

Currently unavailable

20

Murray 0025X6

Bolt, Engine
(Superseded to 0025X6MA)

$5.49

$

Usually ships in 2-12 days

0

21

Murray 001X45

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

23

Murray 015X79

Nut, Flange

$5.49

$

In Stock, Qty 20+

0

24

Murray 215X17 Z

Rod, Pivot **

$

$

Currently unavailable

25

Murray 672610

Door, Rear (Black)

$11.99

$

Usually ships in 2-12 days

0

26

Murray 166X44

Spring

Note: (Included with Ref. No. 25)

$14.99

$

In Stock, only 3 left!

0

27

Murray 671970

Guard, Rear

$13.99

$

Usually ships in 2-12 days

0

28

Murray 672060

Wheel & Tire

$

$

Not available

29

Murray 1101238E700

Bracket, Right Handle

$

$

Not available

30

Murray 1102200

Adjuster, Right Rear Height

$

$

Currently unavailable

31

Murray 26X245

Screw

$4.49

$

In Stock, Qty 6

0

74

Murray 71495

Knob

$

$

Not available

--

Murray F-050405L

Instruction Book

$

$

Currently unavailable

22

Murray 01X108

Bolt

$3.49

$

Usually ships in 2-12 days

0
