20431 - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) Housing Assembly Parts Diagram

Walk-Behind Mower

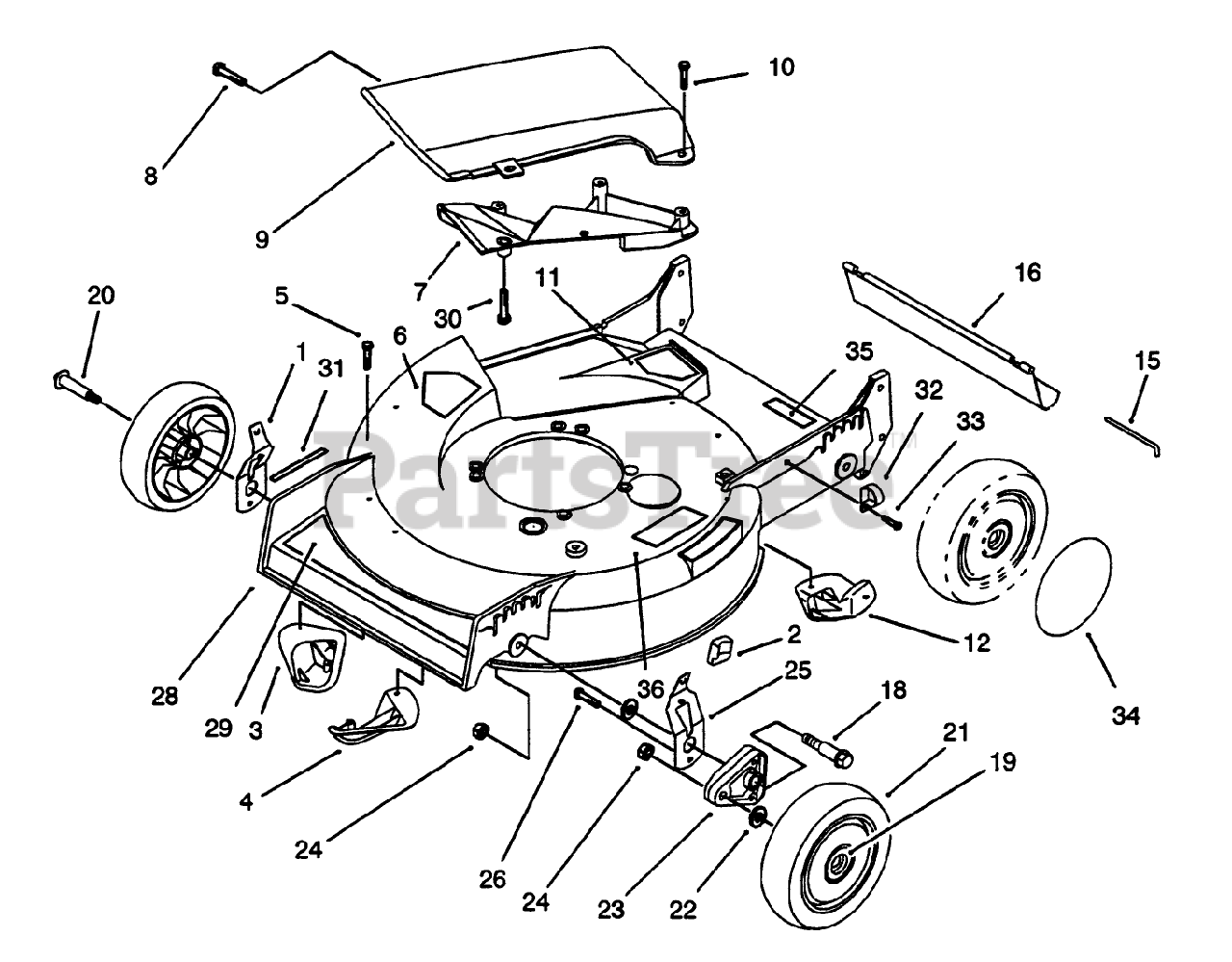

Housing Assembly Parts Diagram

  • Title

1

Toro 71-0560

RH SPRING ARM ASSEMBLY
(Superseded to 71-0561)

$20.99

$

Usually ships in 3-6 days

0

2

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

3

Toro 92-1730

KICKER-RH

$25.99

$

Usually ships in 3-6 days

0

4

Toro 92-1720

KICKER-FRONT

$25.99

$

Usually ships in 3-6 days

0

5

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 13

0

6

Toro 39-5770

DECAL-DANGER

$10.99

$

In Stock, Qty 6

0

7

Deflector-Recycler

$

$

Not available

8

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, only 2 left!

0

9

Toro 14-4069

DISCONTINUED
(Superseded to 17-5179)

$

$

Not available

10

Toro 46-6811

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

11

Toro 82-8450

DECAL - DANGER

$

$

Not available

12

Toro 92-1660

KICKER-REAR

$

$

Not available

15

Toro 33-3208

ROD-SHIELD

$17.99

$

In Stock, Qty 8

0

16

Toro 44-0580

See Supercession: 112-9989
(Superseded to 112-9989)

$30.99

$

In Stock, only 2 left!

0

18

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 6

0

19

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

20

Toro 27-6232

See Supercession: 114-3468
(Superseded to 114-3468)

$5.99

$

In Stock, Qty 16

0

21

Toro 11-9509

See Supercession: 51-2751
(Superseded to 51-2751)

$33.99

$

In Stock, only 4 left!

0

22

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 10

0

23

Toro 66-0580

ARM-PIVOT, FRONT

$19.99

$

In Stock, only 3 left!

0

24

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 10

0

25

Toro 71-0570

LH SPRING ARM ASSEMBLY

$

$

Not available

26

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

28

Toro 16-1579

HP RECYCLER II DECK ASM

$1143.99

$

Usually ships in 3-6 days

0

29

Toro 92-2283

DISCONTINUED

$

$

Not available

30

Screw-Pan Hd.

$

$

Not available

31

Toro 92-2279

DISCONTINUED

$

$

Not available

32

Toro 2412-83

CLAMP-CABLE

$

$

Not available

33

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

34

Toro 91-2253

See Supercession: 100-6351
(Superseded to 100-6351)

$24.99

$

Usually ships in 3-6 days

0

35

Toro 92-1779

DECAL-WARNING

$9.99

$

Usually ships in 3-6 days

0

36

Toro 71-1280

DECAL-INSTRUCTION, SAFETY

$31.99

$

In Stock, Qty 13

0
