20432 - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) Engine Briggs Stratton Model 95902-3154-01 Parts Diagram

Walk-Behind Mower

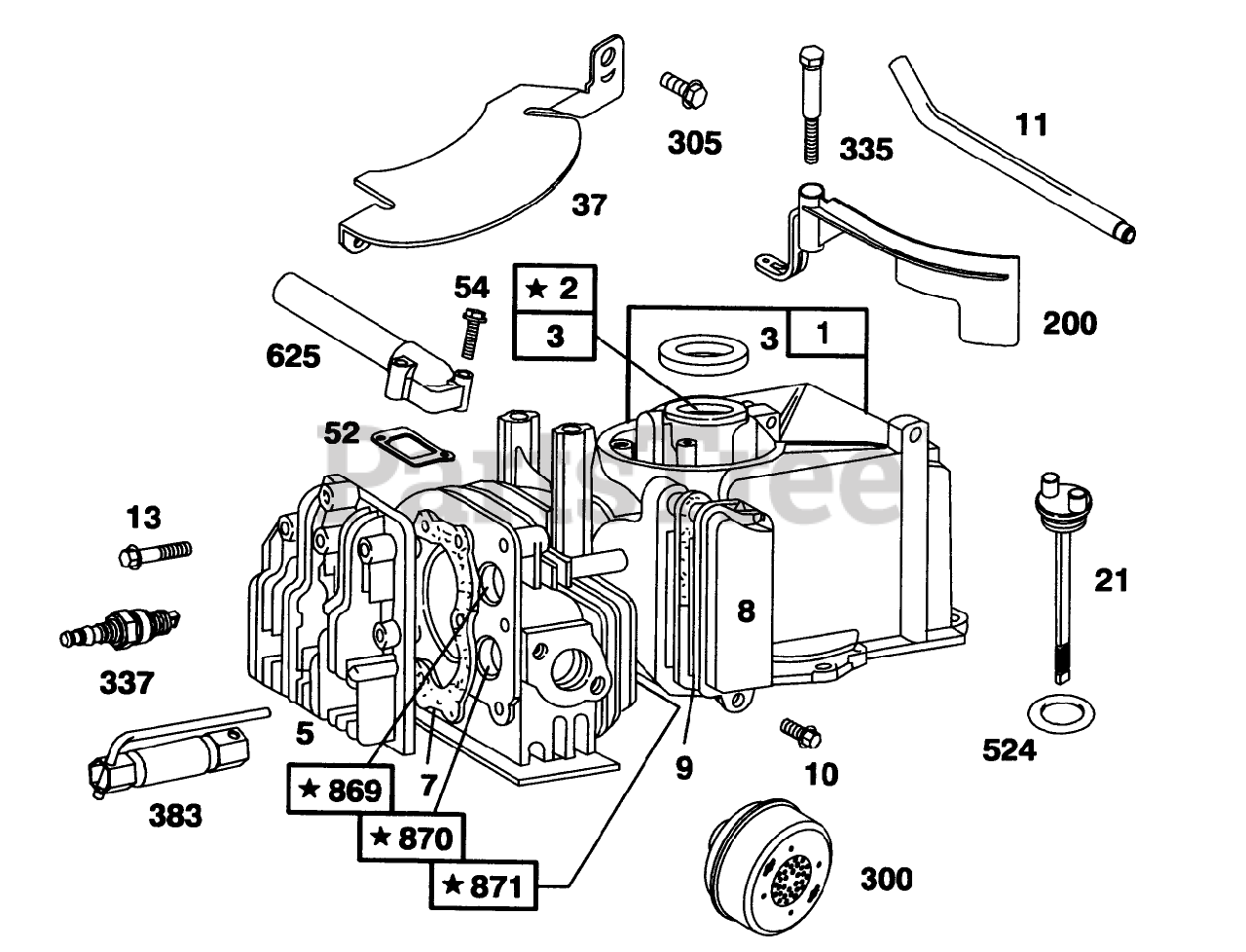

Engine Briggs Stratton Model 95902-3154-01 Parts Diagram

  • Title

1

Toro 399164

Cylinder Assembly

$

$

Currently unavailable

2

Toro 293708

Bushing

$

$

Currently unavailable

3

Toro 299819

Seal-Oil

Note: Included in Gasket Set-Part No. 298989.

$

$

Currently unavailable

5

Toro 213942

Head-Cylinder

$

$

Currently unavailable

7

Toro 272536

Gasket-Cylinder Head

Note: Included in Gasket Set-Part No. 298989.

$

$

Currently unavailable

8

Toro 495785

Breather-Valve Chamber

$

$

Currently unavailable

9

Toro 272602

Gasket-Valve Cover

Note: Included in Gasket Set-Part No. 298989.

$

$

Currently unavailable

10

Toro 94621

Screw

$

$

Currently unavailable

11

Toro 231774

Tube-Breather

$

$

Currently unavailable

13

Toro 93111

Screw-Cylinder Hd.

$

$

Currently unavailable

21

Toro 281081

Plug-Oil Filler

$

$

Currently unavailable

37

Toro 223150

Guard-Flywheel

$

$

Currently unavailable

52

Toro 270345

Gasket-Intake Elbow

Note: Included in Gasket Set-Part No. 298989.

$

$

Currently unavailable

54

Toro 93485

Screw Intake Elbow Mtg.

$

$

Currently unavailable

200

Toro 281024

Blade-Govemor

$

$

Currently unavailable

300

Toro 394569

Muffler-Exhaust

$

$

Currently unavailable

305

Toro 94153

Screw-Blo. Hsg. Mtg.

$

$

Currently unavailable

335

Toro 94732

Screw-Armature and Gov. Blade Mounting Sem

$

$

Currently unavailable

337

Toro 802592

Plug-Spark

$

$

Currently unavailable

358

Toro 298989

Gasket Set

$

$

Currently unavailable

383

Toro 89838

Wrench-Plug, Spark

$

$

Currently unavailable

524

Toro 271485

Seal-O-Ring

Note: Included in Gasket Set-Part No. 298989.

$

$

Currently unavailable

625

Toro 298775

Tube Intake

$

$

Currently unavailable

869

Toro 211172

Seat-Ex. Valve

$

$

Currently unavailable

870

Toro 211291

Seat-Exhaust Valve

$

$

Currently unavailable

871

Toro 231348

Guide-Exhaust Valve
(Superseded to 706543)

$36.99

$

Usually ships in 3-6 days

0

1019

Toro 491082

Label Kit

$

$

Currently unavailable
