20434 - Toro Recycler II Walk-Behind Mower (SN: 039000001 - 039999999) (1993) GEAR CASE ASSEMBLY Parts Diagram

Recycler II Walk-Behind Mower

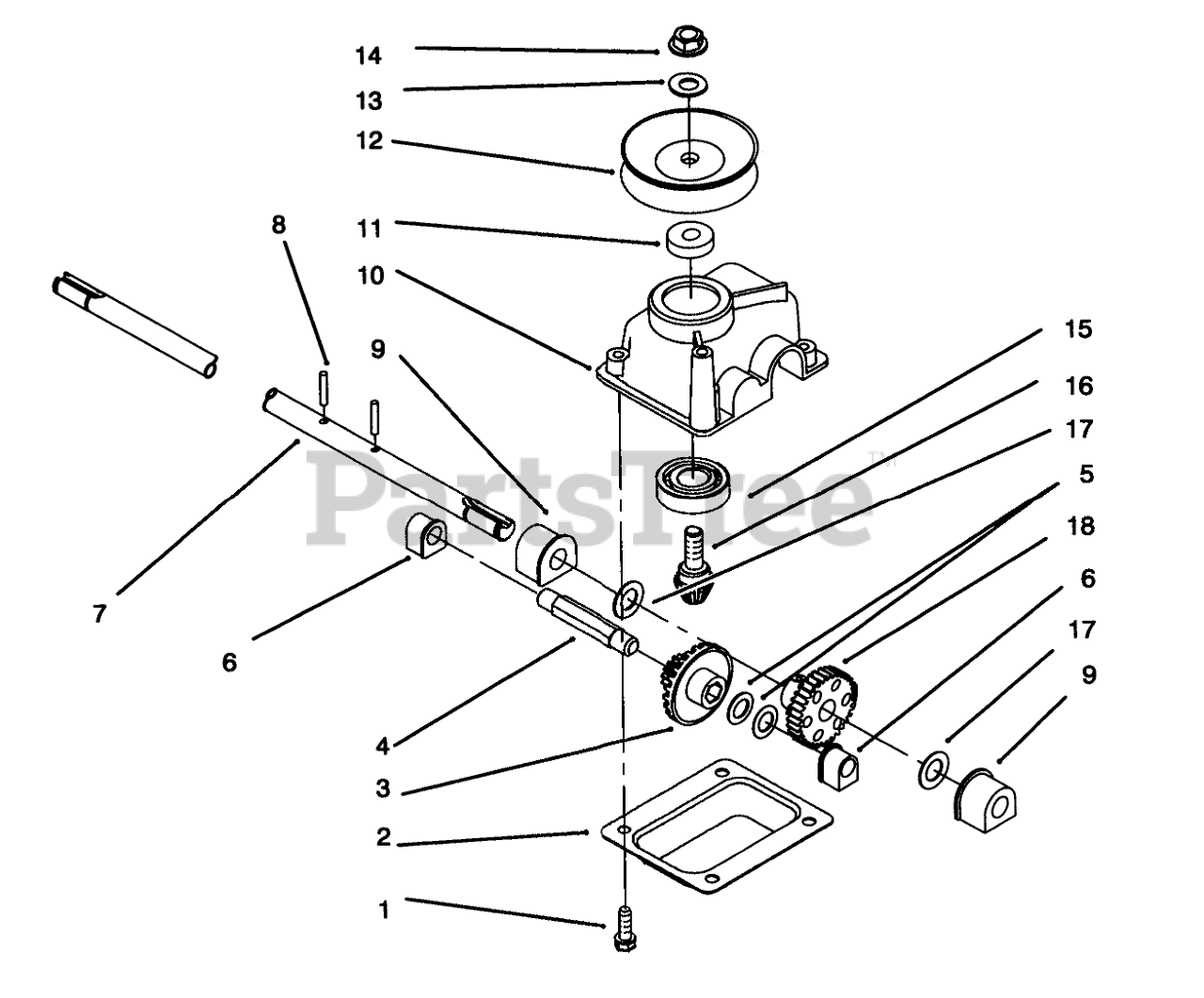

GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

2

Toro 6-14668

Cover-Gear Case

$

$

Currently unavailable

3

Toro 55-3760

Gear-Bevel
(Superseded to 104-7668)

$37.99

$

In Stock, only 4 left!

0

4

Toro 614696

SHAFT-INTERMEDIATE

$120.99

$

Usually ships in 3-6 days

0

5

Toro 36-4791

WASHER-THRUST

$2.49

$

In Stock, Qty 20+

0

6

Toro 60-8750

BUSHING

$7.49

$

In Stock, only 2 left!

0

7

Toro 92-3131

Output Shaft
(Superseded to 104-7673)

$205.99

$

Usually ships in 3-6 days

0

8

Toro 3285-19

PIN-GROOVE

$2.99

$

In Stock, Qty 20+

0

9

Toro 60-8850

BUSHING

$8.99

$

In Stock, Qty 17

0

10

Toro 614578

GEARCASE

$

$

Not available

11

Toro 62-6660

SPACER

$0.99

$

In Stock, Qty 8

0

12

Toro 60-8840

Pulley Half
(Superseded to 100-1176)

$10.99

$

In Stock, Qty 8

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

15

Toro 38-7820

BEARING-BALL

$15.99

$

In Stock, Qty 20+

0

16

Toro 60-8890

Gear-Pinion
(Superseded to 104-7667)

$19.99

$

In Stock, only 4 left!

0

17

Toro 36-4780

WASHER-PLAIN

$8.49

$

In Stock, Qty 12

0

18

Toro 614596

GEAR

$58.99

$

In Stock, only 4 left!

0

Toro 92-2259

GEAR CASE ASSEMBLY

Note: Not illustrated

$1007.99

$

Usually ships in 3-6 days

0
