20434 - Toro Recycler II Walk-Behind Mower (SN: 039000001 - 039999999) (1993) TRACTION CONTROL ASSEMBLY Parts Diagram

Recycler II Walk-Behind Mower

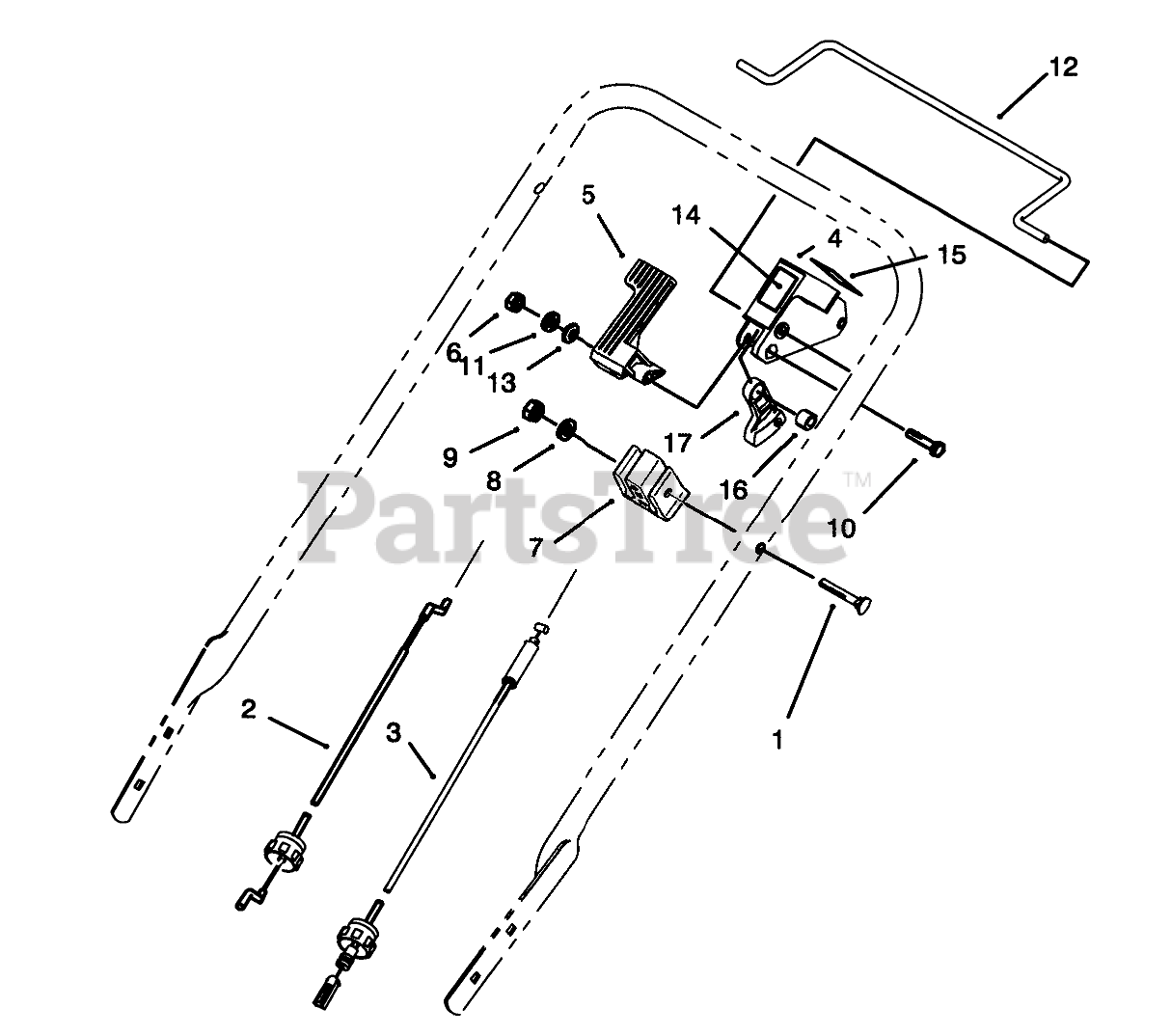

TRACTION CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 92-2269

SCREW-HANDLE
(Superseded to 137-3108)

$4.99

$

Usually ships in 3-6 days

0

2

Toro 92-4066

BRAKE CONTROL

$68.99

$

Usually ships in 3-6 days

0

3

Toro 46-5481

CABLE-TRACTION

$69.99

$

In Stock, only 2 left!

0

4

Toro 92-2265

Stop-Pivot
(Superseded to 93-0340)

$31.99

$

In Stock, Qty 6

0

5

Toro 92-2299

LEVER - SHIFT

$27.99

$

Usually ships in 3-6 days

0

6

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 46-6980

SUPPORT-CABLE

$17.99

$

In Stock, only 2 left!

0

8

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

10

Toro 92-3132

SHOULDER BOLT

$

$

Not available

11

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 6

0

12

Toro 92-3135

Bar-Control
(Superseded to 92-3135-03)

$

$

Not available

13

Toro 92-2298

WASHER - SPRING

$

$

Not available

14

Toro 92-2280

DECAL - INSTRUCTION

$

$

Not available

15

Toro 92-2292

DECAL - INSTRUCTION

$

$

Not available

16

Toro 92-3133

SPACER-LEVER, TRACTION

$4.49

$

In Stock, Qty 5

0

17

Toro 46-5520

LEVER-TRACTION

$

$

Not available
