20434 - Toro Recycler II Walk-Behind Mower (SN: 049000001 - 049999999) (1994) Traction Control Assembly Parts Diagram

Recycler II Walk-Behind Mower

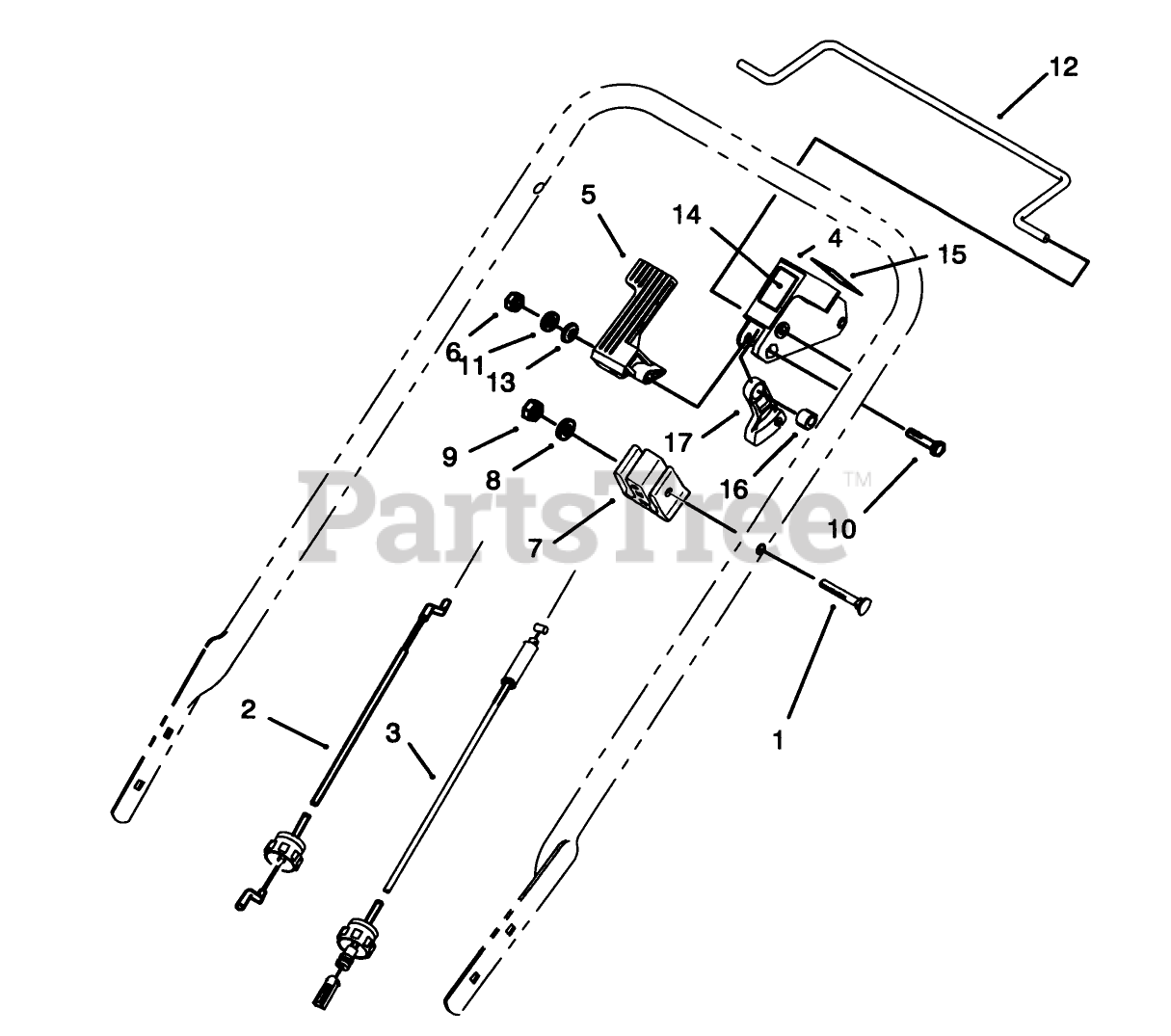

Traction Control Assembly Parts Diagram

  • Title

1

Toro 92-2269

SCREW-HANDLE
(Superseded to 137-3108)

$4.99

$

Usually ships in 3-6 days

0

2

Toro 92-4066

BRAKE CONTROL

$

$

Not available

3

Toro 46-5481

CABLE-TRACTION

$72.99

$

In Stock, only 2 left!

0

4

Toro 92-2265

See Supercession: 93-0340
(Superseded to 93-0340)

$31.99

$

In Stock, Qty 6

0

5

Toro 92-2299

LEVER - SHIFT

$28.99

$

Usually ships in 3-6 days

0

6

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

7

Toro 46-6980

SUPPORT-CABLE

$18.99

$

In Stock, only 2 left!

0

8

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

9

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 13

0

10

Toro 92-3132

SHOULDER BOLT

$

$

Not available

11

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

12

Toro 92-3135

DISCONTINUED
(Superseded to 92-3135-03)

$

$

Not available

13

Toro 92-2298

WASHER - SPRING

$

$

Not available

14

Toro 92-2280

DISCONTINUED

$

$

Not available

15

Toro 92-2292

DISCONTINUED

$

$

Not available

16

Toro 92-3133

SPACER-LEVER, TRACTION

$4.49

$

In Stock, Qty 5

0

17

Toro 46-5520

LEVER-TRACTION

$

$

Not available
