20435 WF - Toro 21" Recycler II Super Pro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) Engine Briggs Stratton Model 124702-3115-01 8 Parts Diagram

21" Recycler II Super Pro Walk-Behind Mower

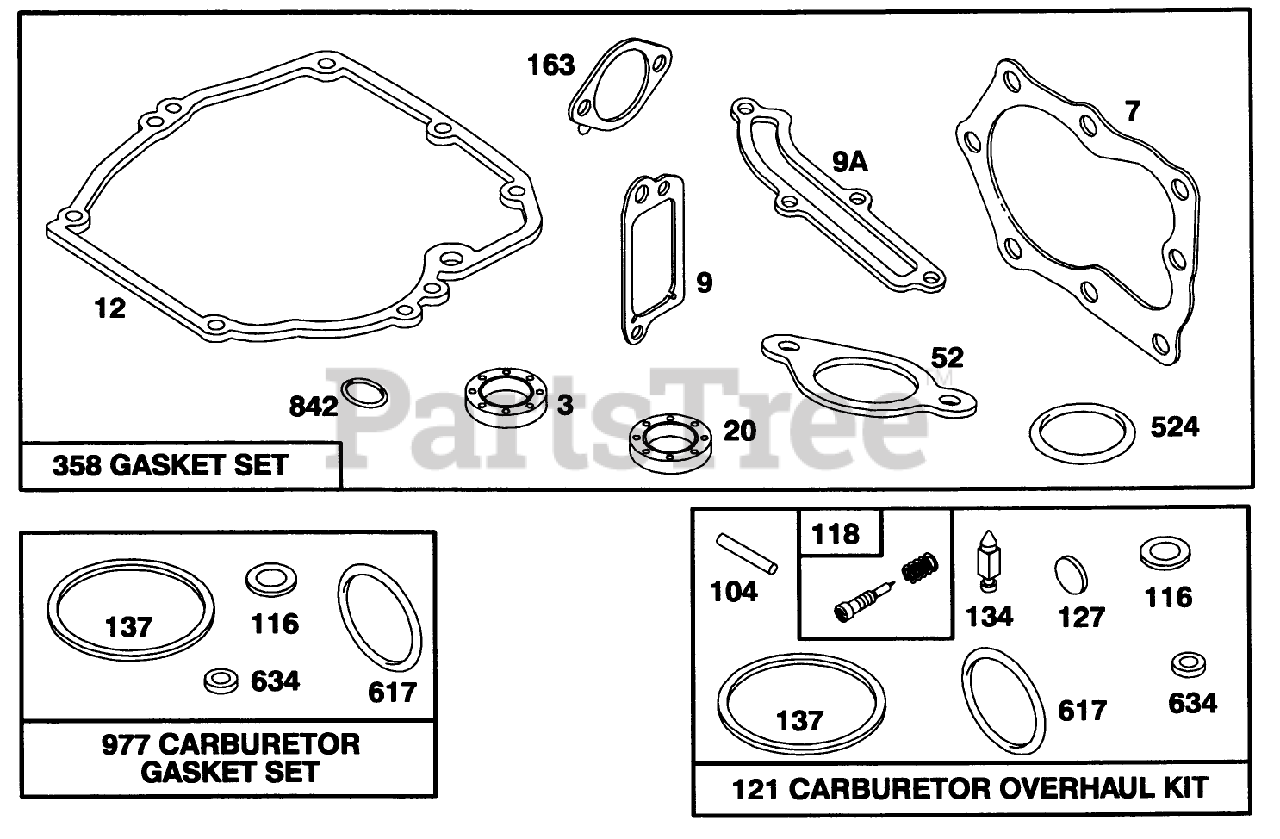

Engine Briggs Stratton Model 124702-3115-01 8 Parts Diagram

  • Title

3

Toro 299819

Seal-Oil

Note: Included in Gasket Set-Part No. 493263.

$

$

Currently unavailable

7

Toro 272200

Gasket-Cylinder Hd

Note: Included in Gasket Set-Part No. 493263.

$

$

Currently unavailable

9

Toro 272481

Gasket?Breather

Note: Included in Gasket Set-Part No. 493263.

$

$

Currently unavailable

9A

Toro 272238

Gasket-Breather

Note: Included in Gasket Set-Part No. 493263.

$

$

Currently unavailable

12

Toro 272198

Gasket

Note: Included in Gasket Set-Part No. 493263.

$

$

Currently unavailable

20

Toro 399781

Seal-Oil

Note: Included in Gasket Set-Part No. 493263.

$

$

Currently unavailable

52

Toro 272199

Gasket-Intake

Note: Included in Gasket Set-Part No. 493263.

$

$

Currently unavailable

104

Toro 231371

Spring
(Superseded to 701979)

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

116

Gasket-Sealing (Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

116

Gasket-Sealing (Sold in Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

118

Toro 493765

Valve-Needle

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Currently unavailable

121

Toro 493762

Carburetor Kit

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

134

Toro 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Currently unavailable

137

Gasket-Bowl (Sold in Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

137

Gasket-Bowl (Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

163

Toro 272296

Gasket-Air Cleaner

Note: Included in Gasket Set-Part No. 493263.

$

$

Currently unavailable

358

Toro 493263

Gasket Set

$

$

Currently unavailable

524

Toro 280393

O-Ring Seal

Note: Included in Gasket Set-Part No. 493263.

$

$

Currently unavailable

617

Toro 270344

Seal-O Ring

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Currently unavailable

617

Toro 270344

Seal-O Ring

Note: Included in Carburetor Gasket Set-Part No. 490937.

$

$

Currently unavailable

234

Washer-Shaft (Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

234

Washer-Shaft (Sold in Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

842

Toro 280966

O-Ring Seal

Note: Included in Gasket Set-Part No. 493263.

$

$

Currently unavailable

977

Toro 490937

Gasket Set-Carb

$

$

Currently unavailable
