20436 - Toro 21" Recycler II Super Pro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) ENGINE BRIGGS & STRATTON MODEL 124702-3115-01 Parts Diagram

21" Recycler II Super Pro Walk-Behind Mower

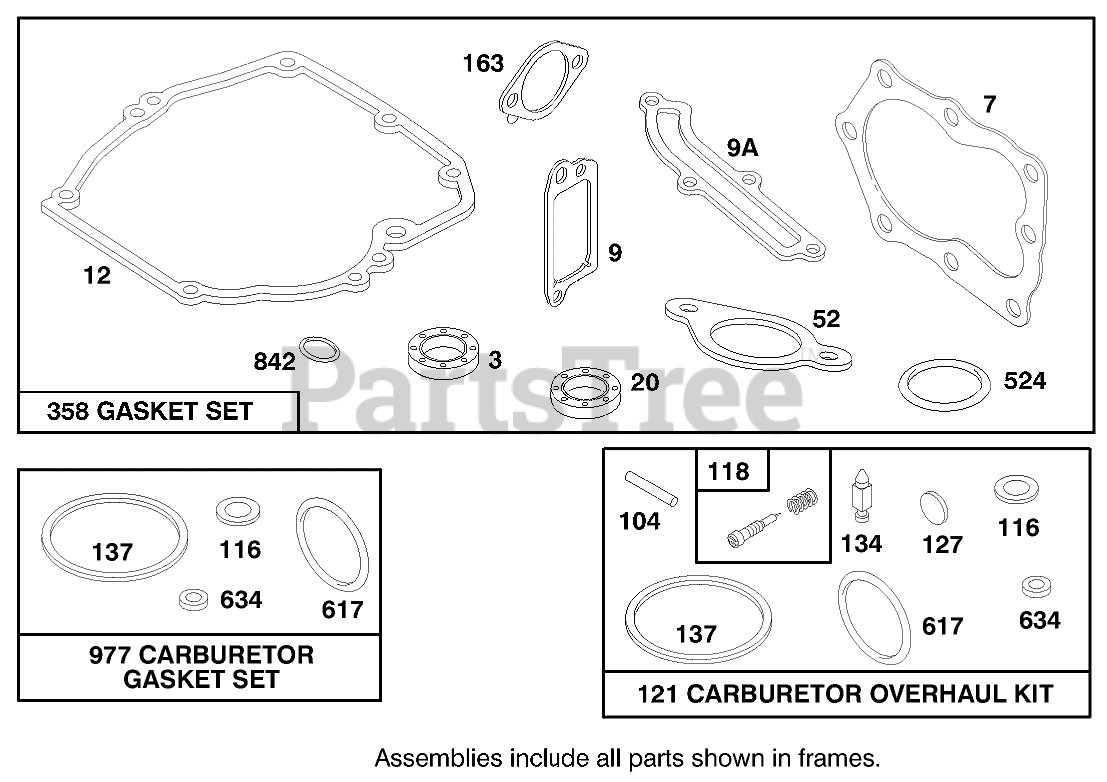

ENGINE BRIGGS & STRATTON MODEL 124702-3115-01 Parts Diagram

  • Title

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Included in Gasket Set-Part No. 493263.

$5.99

$

In Stock, Qty 19

0

7

Briggs & Stratton 272200

Gasket-Cylinder Hd
(Superseded to 272200S)

Note: Included in Gasket Set-Part No. 493263.

$10.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Gasket Set-Part No. 493263.

$5.99

$

In Stock, Qty 5

0

9A

Briggs & Stratton 272238

Gasket-Breather
(Superseded to 691879)

Note: Included in Gasket Set-Part No. 493263.

$7.49

$

In Stock, Qty 10

0

12

Briggs & Stratton 272198

Gasket
(Superseded to 692232)

Note: Included in Gasket Set-Part No. 493263.

$6.49

$

In Stock, Qty 9

0

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

Note: Included in Gasket Set-Part No. 493263.

$8.49

$

In Stock, Qty 7

0

52

Briggs & Stratton 272199

Gasket-Intake
(Superseded to 272199S)

Note: Included in Gasket Set-Part No. 493263.

$4.99

$

In Stock, Qty 10

0

104

Briggs & Stratton 231371

Spring
(Superseded to 797622)

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$4.49

$

In Stock, Qty 12

0

116

Gasket-Sealing (Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

116

Gasket-Sealing (Sold in Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

118

Briggs & Stratton 493765

Valve-Needle

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$15.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 493762

Carburetor Kit
(Superseded to 498260)

$18.99

$

In Stock, Qty 20+

0

127

Plug-Welch (Sold in Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

134

Briggs & Stratton 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$6.99

$

In Stock, Qty 20+

0

137

Gasket-Bowl (Sold in Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

137

Gasket-Bowl (Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

163

Briggs & Stratton 272296

Gasket-Air Cleaner

Note: Included in Gasket Set-Part No. 493263.

$4.99

$

In Stock, Qty 10

0

358

Briggs & Stratton 493263

Gasket Set
(Superseded to 496117)

$42.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 280393

O-Ring Seal
(Superseded to 691031)

Note: Included in Gasket Set-Part No. 493263.

$5.99

$

In Stock, Qty 10

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Gasket Set-Part No. 490937.

$3.49

$

In Stock, Qty 20+

0

634

Washer-Shaft (Sold in Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

634

Washer-Shaft (Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

842

Briggs & Stratton 280966

O-Ring Seal
(Superseded to 692296)

Note: Included in Gasket Set-Part No. 493263.

$5.49

$

In Stock, Qty 16

0

977

Briggs & Stratton 490937

Gasket Set-Carb
(Superseded to 498260)

$18.99

$

In Stock, Qty 20+

0
