20436 - Toro 21" Recycler II Super Pro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) Traction Control Assembly Parts Diagram

21" Recycler II Super Pro Walk-Behind Mower

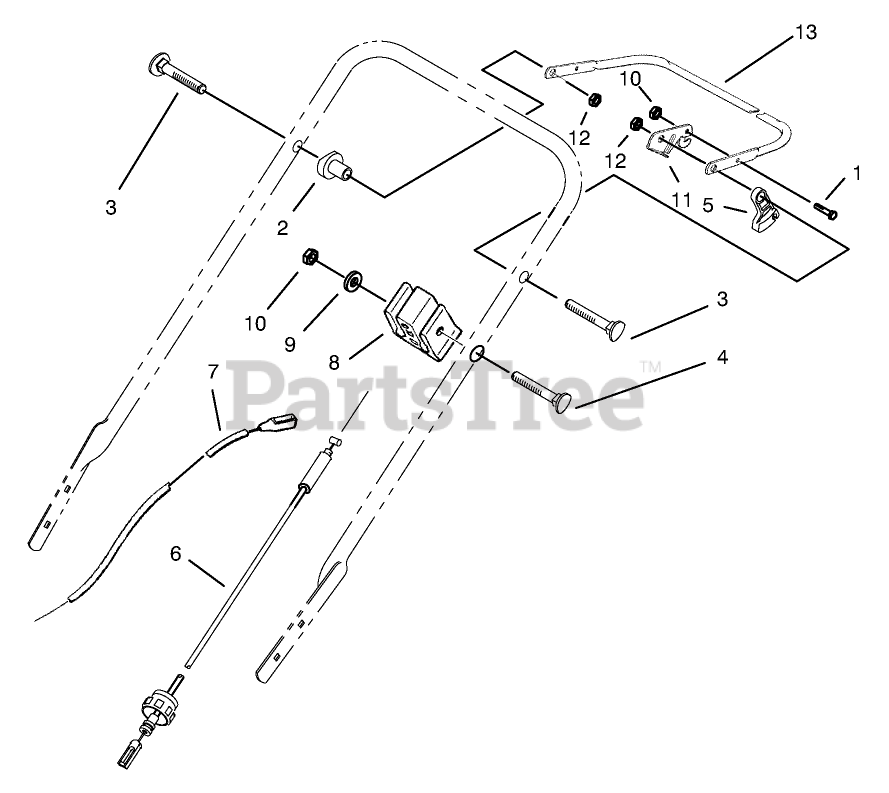

Traction Control Assembly Parts Diagram

  • Title

1

Toro 321-39

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

2

Toro 49-1630

SPACER-SUPPORT

$9.49

$

Usually ships in 3-6 days

0

3

Toro 92-2260

SCREW-HANDLE

$4.49

$

In Stock, Qty 20+

0

4

Toro 92-2269

SCREW-HANDLE
(Superseded to 137-3108)

$4.99

$

Usually ships in 3-6 days

0

5

Toro 46-5520

LEVER-TRACTION

$

$

Not available

6

Toro 46-5481

CABLE-TRACTION

$72.99

$

In Stock, only 2 left!

0

7

Toro 76-4330

BRAKE CONTROL

$

$

Not available

8

Toro 46-6980

SUPPORT-CABLE

$18.99

$

In Stock, only 2 left!

0

9

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

10

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 13

0

11

Toro 66-5351

See Supercession: 66-5351-03
(Superseded to 66-5351-03)

$12.99

$

Usually ships in 3-6 days

0

12

Toro 3296-74

See Supercession: 3296-72
(Superseded to 3296-72)

$2.99

$

In Stock, Qty 12

0

13

Toro 71-3080

See Supercession: 71-3080-05
(Superseded to 71-3080-05)

$

$

Not available
