20437 - Toro 21" Recycler II Super Pro Walk-Behind Mower (SN: 049000001 - 049999999) (1994) Housing Assembly Parts Diagram

21" Recycler II Super Pro Walk-Behind Mower

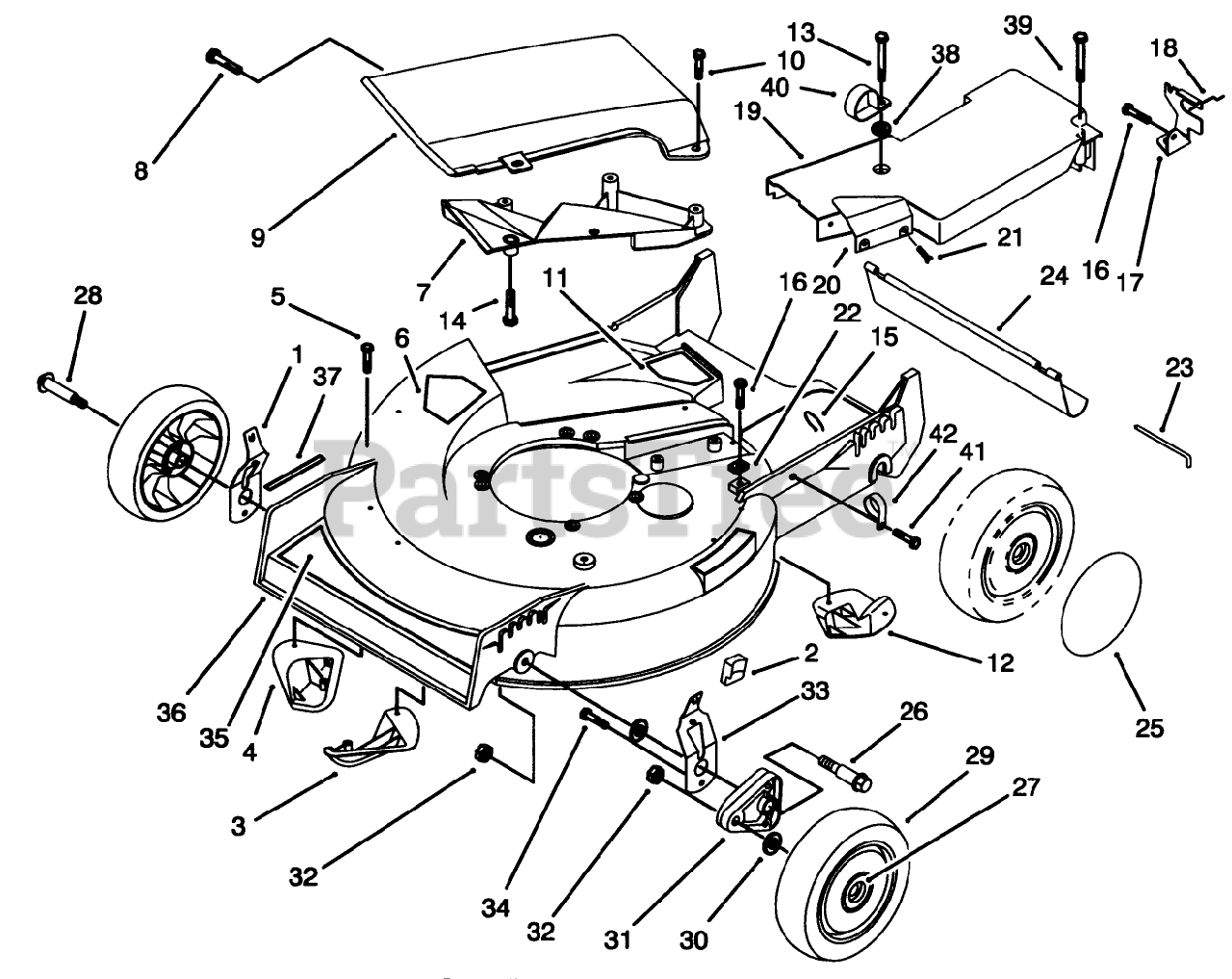

Housing Assembly Parts Diagram

  • Title

1

Toro 71-0561

RH SPRING ARM ASM

$20.99

$

Usually ships in 3-6 days

0

2

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

3

Toro 92-1720

KICKER-FRONT

$25.99

$

Usually ships in 3-6 days

0

4

Toro 92-1730

KICKER-RH

$25.99

$

Usually ships in 3-6 days

0

5

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 13

0

6

Toro 39-5770

DECAL-DANGER

$10.99

$

In Stock, Qty 6

0

7

Deflector-Recycler

$

$

Not available

8

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, only 2 left!

0

9

Toro 14-4069

DISCONTINUED
(Superseded to 17-5179)

$

$

Not available

10

Toro 46-6811

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

11

Toro 82-8450

DECAL - DANGER

$

$

Not available

12

Toro 92-1750

KICKER-REAR

$24.99

$

In Stock, only 2 left!

0

13

Toro 37-7262

SCREW-SPECIAL

$3.99

$

Usually ships in 3-6 days

0

15

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

16

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 15

0

17

Toro 82-5680

See Supercession: 82-5680-03
(Superseded to 82-5680-03)

$

$

Not available

18

Toro 46-7030

RETAINER-CABLE

$6.99

$

Usually ships in 3-6 days

0

19

Toro 52-7406

DISCONTINUED

$

$

Not available

20

Toro 77-0280

DISCONTINUED

$

$

Not available

21

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

22

Toro 62-3720

CLAMP-CABLE

$2.99

$

In Stock, only 1 left!

0

23

Toro 33-3208

ROD-SHIELD

$17.99

$

In Stock, Qty 8

0

24

Toro 44-0580

See Supercession: 112-9989
(Superseded to 112-9989)

$30.99

$

In Stock, only 2 left!

0

25

Toro 91-2253

See Supercession: 100-6351
(Superseded to 100-6351)

$24.99

$

Usually ships in 3-6 days

0

26

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 6

0

27

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

28

Toro 27-6232

See Supercession: 114-3468
(Superseded to 114-3468)

$5.99

$

In Stock, Qty 17

0

29

Toro 14-9989

WHEEL AND TIRE ASM

$43.99

$

In Stock, only 4 left!

0

30

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 10

0

31

Toro 66-0580-03

See Supercession: 66-0580
(Superseded to 66-0580)

$19.99

$

In Stock, only 3 left!

0

32

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 10

0

33

Toro 71-0571

LH SPRING ARM ASM

$47.99

$

In Stock, only 1 left!

0

34

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

35

Toro 92-2281

DISCONTINUED

$

$

Not available

36

Toro 16-1599

SP RECYCLER II DECK ASM

$1053.99

$

Usually ships in 3-6 days

0

37

Toro 92-2279

DISCONTINUED

$

$

Not available

38

Toro 3-5792

WASHER

$7.49

$

Usually ships in 3-6 days

0

39

Toro 37-7260

SCREW-HWH

$6.99

$

In Stock, only 2 left!

0

40

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

41

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

42

Toro 2412-83

CLAMP-CABLE

$

$

Not available
