20440 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1975) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

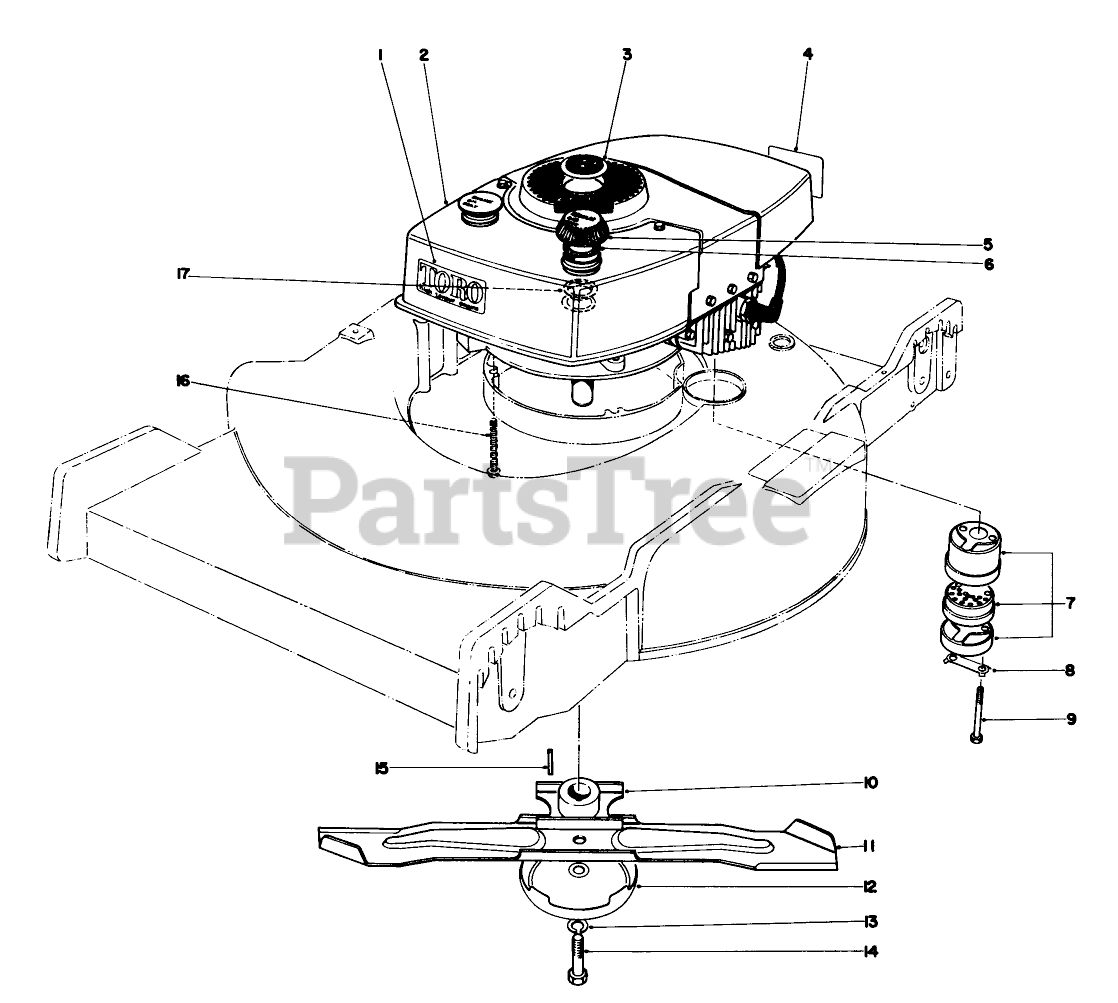

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 23-1260

High Torque
Usually ships same day

Not available

$

$

Usually ships same day

Currently unavailable

$

$

Toro Part# 221-465

Engine

Note: Not illustrated

Usually ships same day

Currently unavailable

$

$

3

Toro Part# 23-0600

Plug Button
(Superseded to 38-1480)
Usually ships in 1 day

$

$16.40

0

4

Toro Part# 20-2710

Decal Maintenance
Usually ships same day

Not available

$

$

5

Toro Part# 20-2860

Gas Cap Assy. (Incl. Ref. #6 & 17)
(Superseded to 42-0682)
Usually ships same day

Not available

$

$

Usually ships in 5 to 8 days

$

$7.45

0

7

Toro Part# 5-4769

Muffler (Incl. Ref. #8 & 9)
Usually ships in 1 day

$

$44.27

0

8

Toro Part# 3-5094

CLIP - LOCKING
Usually ships in 5 to 8 days

$

$8.17

0

9
Usually ships in 5 to 8 days

$

$5.91

0

10

Toro Part# 24-6560

BLADE RETAINER WA
Usually ships in 5 to 8 days

$

$104.34

0

Toro Part# 23-0110

BLADE RETAINER WA(BLACK)
(Superseded to 23-0110-03)

Note: Not illustrated

Usually ships same day

Not available

$

$

11

Toro Part# 23-0070

Blade
(Superseded to 107-4276-03)
Usually ships in 1 day

$

$26.82

0

12

Toro Part# 8-4240

AntiScalp Cup
(Superseded to 80-2770)
Usually ships in 1 day

$

$13.00

0

13

Toro Part# 3253-22

WASHER-LOCK
Usually ships in 1 day

$

$1.88

0

14

Toro Part# 23-0080

BLADE SCREW
Usually ships in 5 to 8 days

$

$24.26

0

Usually ships in 1 day

$

$10.21

0

16

Toro Part# 11-0580

3/8-16 X 2-3/4 CAPSCR
Usually ships in 5 to 8 days

$

$13.15

0

17

Toro Part# 2210-143

GAS CAP BAFFLE
Usually ships same day

Not available

$

$
