20441 - Toro Walk-Behind Mower (SN: 059000001 - 059999999) (1995) Carburetor Assembly (model No. 20441 Only) Parts Diagram

Walk-Behind Mower

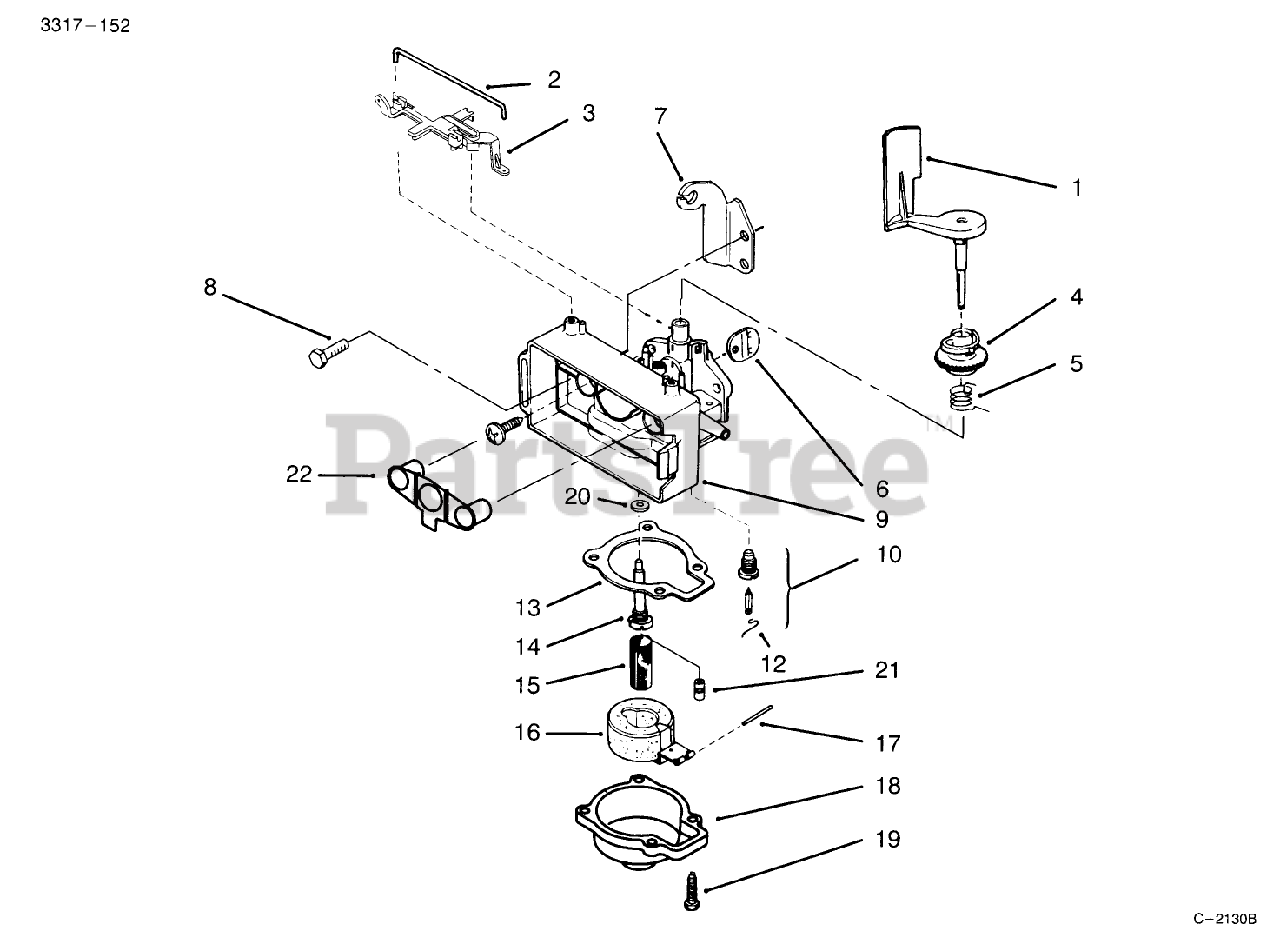

Carburetor Assembly (model No. 20441 Only) Parts Diagram

  • Title

1

Toro 92-6376

See Supercession: 104-4430
(Superseded to 104-4430)

$15.99

$

In Stock, Qty 6

0

2

Toro 610165

RETAINER

$4.99

$

In Stock, only 3 left!

0

3

Toro 93-1225

LEVER-ADJ. VF

$3.49

$

In Stock, Qty 11

0

4

Toro 610834

COLLAR-ADJUST, AIRVANE

$4.49

$

In Stock, Qty 15

0

5

Toro 92-4944

SPRING-GOV V

$11.99

$

In Stock, Qty 7

0

6

Toro 92-6373

DISC-THRO. V

$5.99

$

Usually ships in 3-6 days

0

7

Toro 92-4949

BRKT-THRO.CONT V

$

$

Not available

8

Toro 613269

SCREW

$2.49

$

Usually ships in 3-6 days

0

9

Toro 92-6377

DISCONTINUED
(Superseded to 93-4324)

$

$

Not available

10

Toro 92-9697

VALVE / SEAT-FLOAT

$25.99

$

In Stock, Qty 10

0

12

Toro 603145

See Supercession: 92-9697
(Superseded to 92-9697)

$25.99

$

In Stock, Qty 10

0

13

Toro 602850

See Supercession: 98-1362
(Superseded to 98-1362)

$3.49

$

In Stock, Qty 20+

0

14

Toro 92-6371

DISCONTINUED

$

$

Not available

15

Toro 611071

FILTER-FUEL VS

$19.99

$

In Stock, only 2 left!

0

16

Toro 678113

DISCONTINUED

$

$

Not available

17

Toro 92-6389

PIN-STRAIGHT

$5.99

$

In Stock, only 2 left!

0

18

Toro 92-9691

CHAMBER-FLOAT

$46.99

$

Usually ships in 3-6 days

0

19

Toro 608850

SCREW-HH

$2.49

$

In Stock, only 2 left!

0

20

Toro 612383

WASHER

$2.49

$

In Stock, only 2 left!

0

21

Toro 92-6370

JET-MAIN VF

$16.99

$

In Stock, only 2 left!

0

22

Toro 93-4320

SHIELD-FUEL V

$

$

Not available

Toro 92-6385

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 92-9695

See Supercession: 93-4331
(Superseded to 93-4331)

Note: Not illustrated

$298.99

$

In Stock, only 2 left!

0
