20441 - Toro Walk-Behind Mower (SN: 059000001 - 059999999) (1995) Engine Assembly 2 Parts Diagram

Walk-Behind Mower

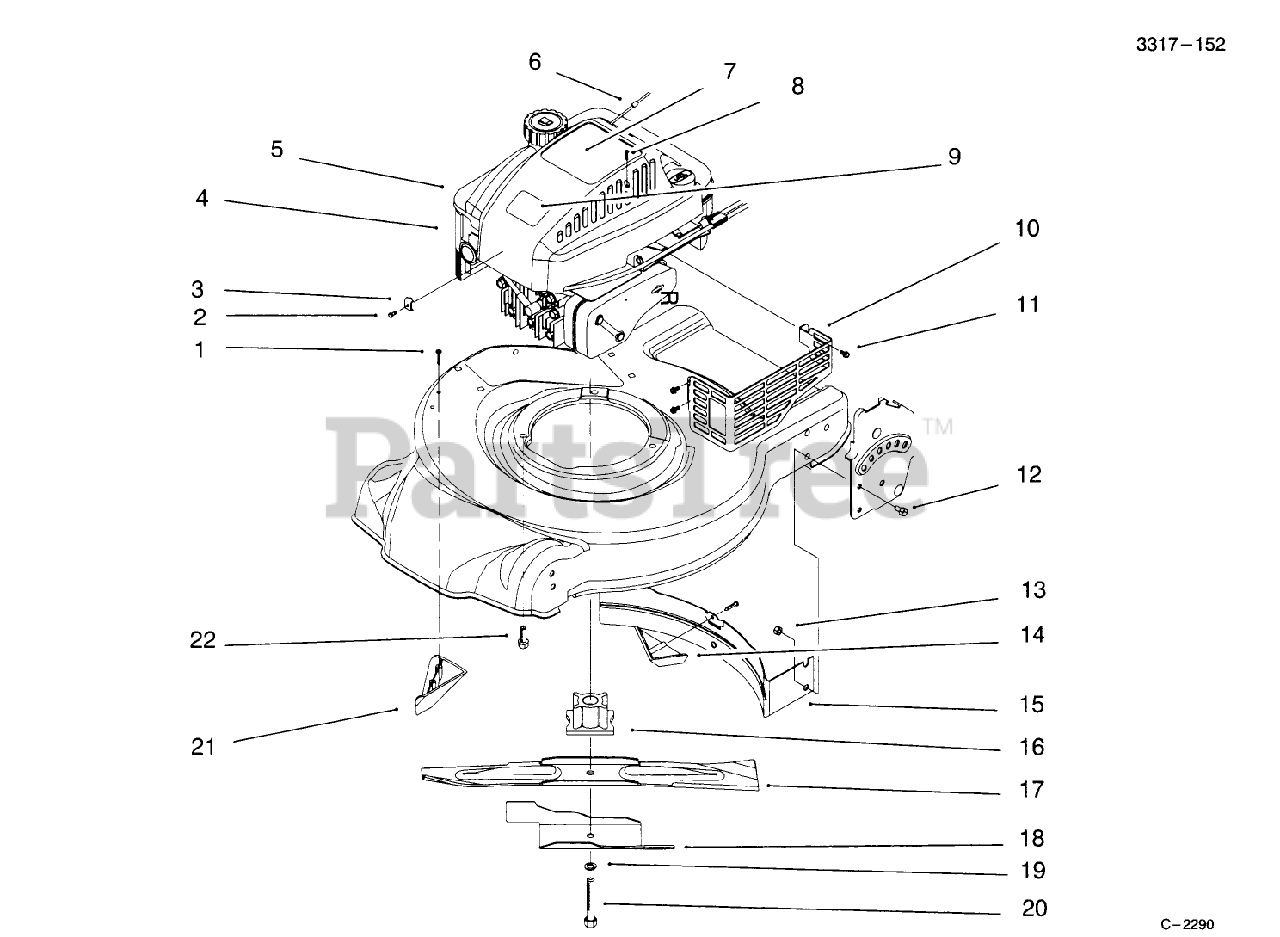

Engine Assembly 2 Parts Diagram

  • Title

1

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 13

0

2

Toro 93-8470

SCREW-CLAMP

$

$

Not available

3

Toro 2210-249

CLAMP-CASING

$

$

Not available

4

Shroud-Qt Wedge (Model No. 20443 Only)

$

$

Not available

5

Toro 93-0243

SHROUD-ENGINE

$64.99

$

Usually ships in 3-6 days

0

6

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0

7

Toro 93-0247

EXCEPT FOR SERVICE

$

$

Not available

8

Toro 32144-121

See Supercession: 32144-88
(Superseded to 32144-88)

$1.99

$

In Stock, only 2 left!

0

9

Toro 92-2289

See Supercession: 98-3206
(Superseded to 98-3206)

$2.49

$

In Stock, only 2 left!

0

10

Toro 82-8550

See Supercession: 104-7577-03
(Superseded to 104-7577-03)

$28.99

$

In Stock, only 2 left!

0

11

Toro 32144-73

See Supercession: 104-2065
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 93-0217

KICKER-REAR

$

$

Not available

15

Toro 93-0223

See Supercession: 93-0223-03
(Superseded to 93-0223-03)

$32.99

$

Usually ships in 3-6 days

0

16

Toro 62-7540

BLADE RETAINER

$107.99

$

Usually ships in 3-6 days

0

17

Toro 93-0241

See Supercession: 93-0241-03
(Superseded to 93-0241-03)

$42.99

$

In Stock, Qty 5

0

18

Toro 93-0219

See Supercession: 93-0219-03
(Superseded to 93-0219-03)

$45.99

$

In Stock, only 2 left!

0

19

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

20

Toro 26-0670

SCREW-BLADE

$

$

Not available

21

Toro 93-0218

KICKER - SIDE

$

$

Not available

22

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0
