20441 - Toro Walk-Behind Mower (SN: 059000001 - 059999999) (1995) Housing Assembly Parts Diagram

Walk-Behind Mower

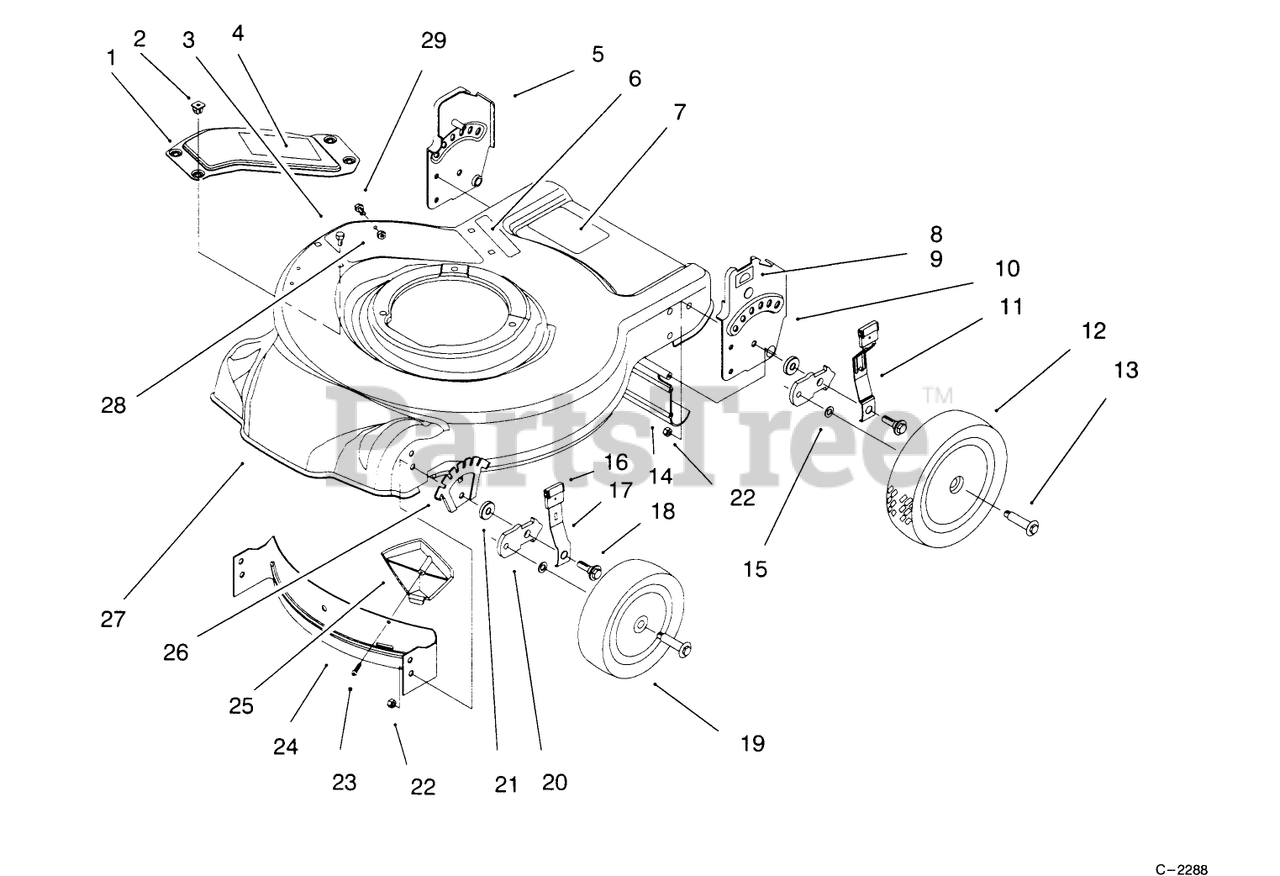

Housing Assembly Parts Diagram

  • Title

1

Toro 16-9269

COVER W/DECAL

$

$

Not available

2

Toro 93-0242

See Supercession: 94-1610
(Superseded to 94-1610)

$1.49

$

In Stock, Qty 20+

0

3

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

4

Toro 85-7060

DECAL - COVER

$

$

Not available

5

Toro 93-0236

ASM - RH HANDLE BRACKET

$

$

Not available

6

Toro 93-0262

DISCONTINUED

$

$

Not available

7

Toro 93-0248

See Supercession: 104-8589
(Superseded to 104-8589)

$7.99

$

Usually ships in 3-6 days

0

8

Toro 92-2915

DECAL-HOC, RH

$6.99

$

Usually ships in 3-6 days

0

9

Toro 92-2914

DISCONTINUED

$

$

Not available

10

Toro 93-0235

ASM - LH HANDLE BRACKET

$

$

Not available

11

Toro 92-1005

REAR SPRING ARM ASM

$21.99

$

In Stock, only 1 left!

0

12

Toro 92-9592

WHEEL ASM

$63.99

$

In Stock, only 4 left!

0

13

Toro 614650

BOLT-SHOULDER

$4.99

$

In Stock, Qty 20+

0

14

Toro 92-8647

SHIELD-TRAILING

$45.99

$

In Stock, Qty 5

0

15

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 10

0

16

Toro 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$15.99

$

Usually ships in 3-6 days

0

17

Toro 614687

ARM-FRONT SPRING

$24.99

$

In Stock, only 3 left!

0

18

Toro 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, Qty 5

0

19

Toro 92-9591

WHEEL ASM

$25.99

$

In Stock, Qty 5

0

20

Toro 614637

See Supercession: 95-7403-03
(Superseded to 95-7403-03)

$

$

Not available

21

Toro 92-4890

WASHER

$8.49

$

In Stock, only 1 left!

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 10

0

24

Toro 93-0222

See Supercession: 93-0222-03
(Superseded to 93-0222-03)

$

$

Not available

25

Toro 93-0216

KICKER-FRONT

$

$

Not available

26

Toro 92-4881

See Supercession: 92-4881-03
(Superseded to 92-4881-03)

$

$

Not available

27

Toro 16-9259

DISCONTINUED

$

$

Not available

28

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 13

0

29

Toro 32105-27

SCREW

$

$

Not available
