20442 - Toro Walk-Behind Mower (SN: 069000001 - 069999999) (1996) Engine Briggs Stratton Model 127802-0640-01 2 Parts Diagram

Walk-Behind Mower

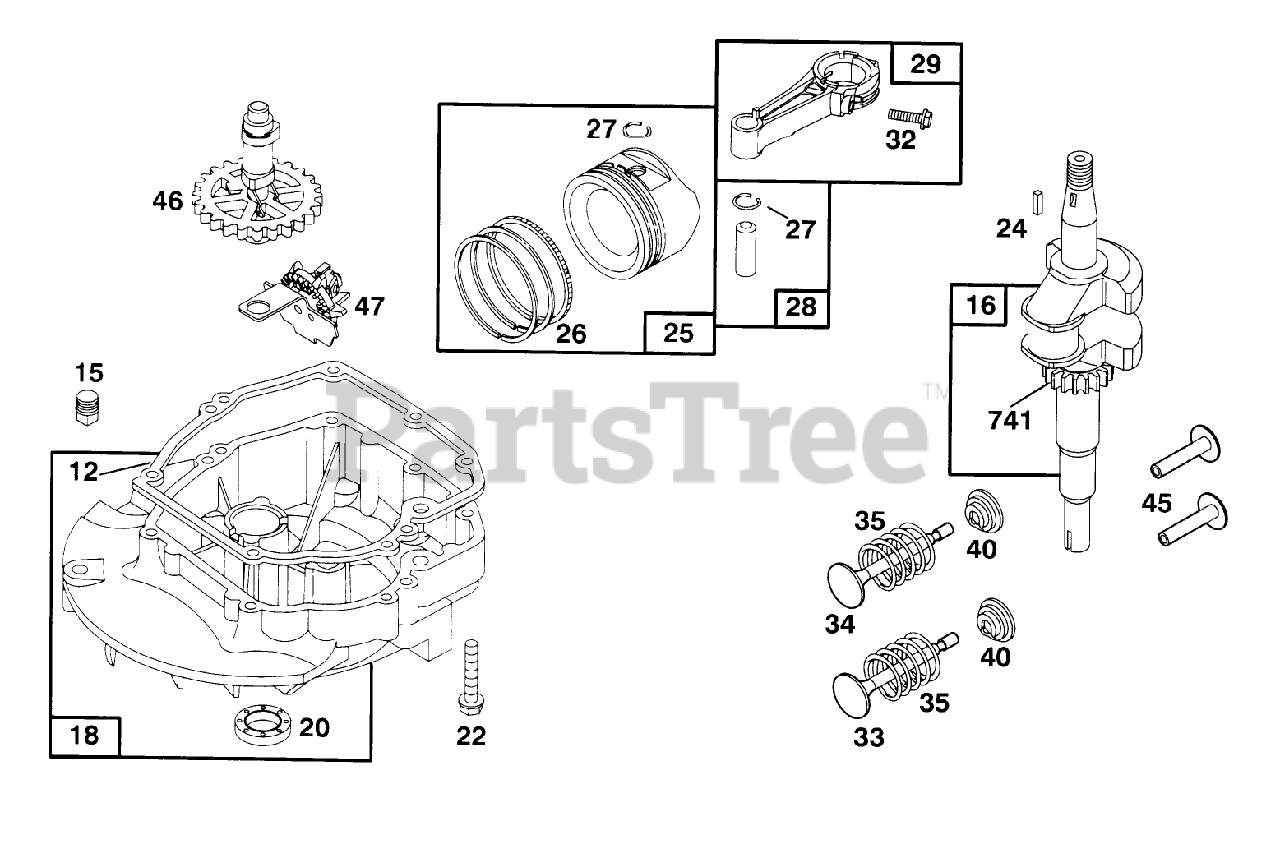

Engine Briggs Stratton Model 127802-0640-01 2 Parts Diagram

  • Title

12

Toro 272198

Gasket

Note: Included in Gasket Set-Part No. 496117.

$

$

Currently unavailable

15

Toro 94720

Plug-Pipe

$

$

Currently unavailable

16

Toro 494546

Crankshaft

$

$

Currently unavailable

Toro 94388

Key-Timing
(Superseded to 690979)

Note: Note: Order 94388 For Timing Gear Key.

$3.49

$

In Stock, Qty 20+

0

18

Toro 493279

Sump-Engine

$

$

Currently unavailable

20

Toro 399781

Seal-Oil

Note: Included in Gasket Set-Part No. 496117.

$

$

Currently unavailable

22

Toro 94220

Screw-Hex. Head

$

$

Currently unavailable

Toro 94612

Screw Hex. Head

Note: (One (1) Used in Hole Nearest Breather.)

$

$

Currently unavailable

24

Toro 222698

Key

$

$

Currently unavailable

25

Toro 493262

Piston Assy. (Std.)

$

$

Currently unavailable

Toro 493385

Piston Ass-y-.010" O.S.

$

$

Currently unavailable

Toro 493386

Piston Ass-y-.020" O.S.

$

$

Currently unavailable

Toro 493387

Piston Ass-y-.030" O.S.

$

$

Currently unavailable

26

Toro 493261

Ring Set (Std.)

$

$

Currently unavailable

Toro 493388

Ring-.010" O. S.

$

$

Currently unavailable

Toro 493389

Ring Set-.020" O.S.

$

$

Currently unavailable

Toro 493390

Ring Set-.030" O.S.

$

$

Currently unavailable

27

Toro 26026

Iock-Piston Pin

$

$

Currently unavailable

28

Toro 298909

Pin Ass-y-Piston

$

$

Currently unavailable

Toro 298908

Pin-Piston (.005 Undersize)

$

$

Currently unavailable

29

Toro 490566

Rod Ass-y-Con.

$

$

Currently unavailable

Note: For Conn. Rod With .020" Undersize Crankpin Bearing

Note: Note: For Conn. Rod With .020" Undersize Crankpin Bearing Order No. 490743.

$

$

Not available

32

Toro 94699

Screw-Hex

$

$

Currently unavailable

33

Toro 262651

Valve-Exhaust

$

$

Currently unavailable

34

Toro 262652

Valve-Intake

$

$

Currently unavailable

35

Toro 262224

Spring-Value

$

$

Currently unavailable

40

Toro 93312

Gear-Cam

$

$

Currently unavailable

45

Toro 262204

Tappet-Valve

$

$

Currently unavailable

46

Toro 492828

Gear-Cam

$

$

Currently unavailable

47

Toro 493737

Oil Slinger

$

$

Currently unavailable

741

Toro 262598

Gear-Timing

$

$

Currently unavailable
