20445 - Toro Walk-Behind Mower (SN: 079000001 - 079999999) (1997) HOUSING & WHEEL ASSEMBLY Parts Diagram

Walk-Behind Mower

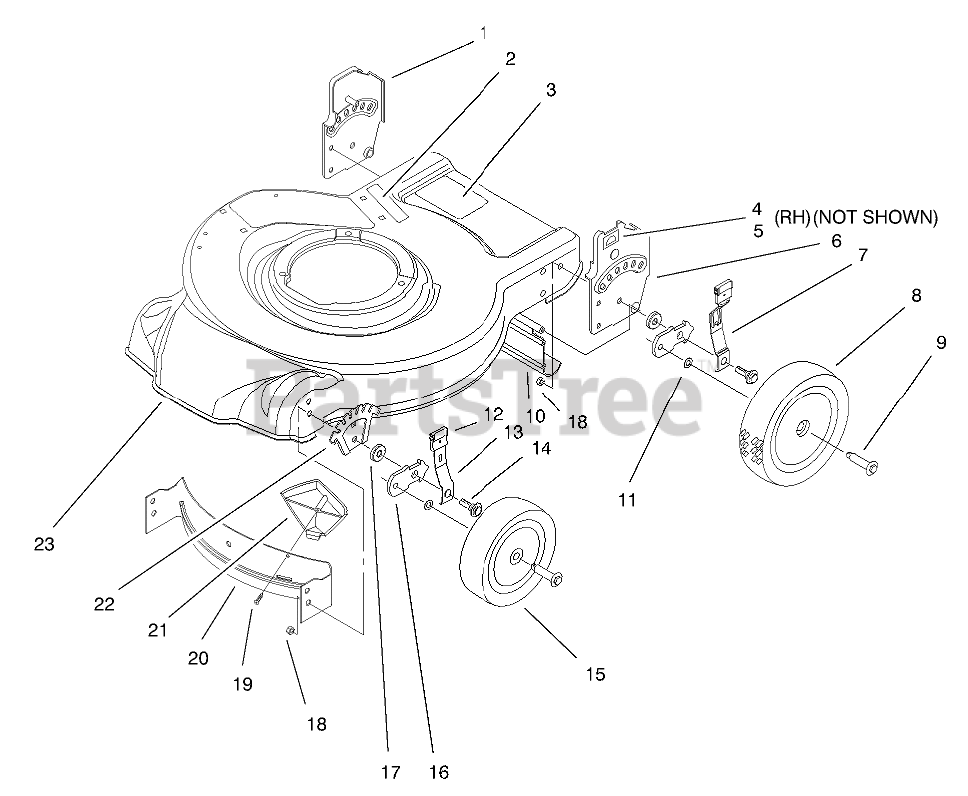

HOUSING & WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 93-0236

ASM - RH HANDLE BRACKET

$28.99

$

In Stock, only 1 left!

0

2

Toro 93-0262

DECAL - WARNING

$

$

Not available

3

Toro 93-0248

DECAL-WARNING
(Superseded to 104-8589)

$5.99

$

Usually ships in 3-6 days

0

4

Toro 92-2915

DECAL-HOC, RH

$5.49

$

Usually ships in 3-6 days

0

5

Toro 92-2914

DECAL-HOC, LH

$

$

Not available

6

Toro 93-0235

ASM - LH HANDLE BRACKET

$28.99

$

In Stock, only 1 left!

0

7

Toro 92-1005

REAR SPRING ARM ASM

$21.99

$

In Stock, only 2 left!

0

8

Toro 92-9592

WHEEL ASM

$53.99

$

In Stock, only 4 left!

0

9

Toro 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

10

Toro 92-8647

SHIELD-TRAILING

$35.99

$

In Stock, Qty 9

0

11

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

12

Toro 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$12.99

$

In Stock, only 3 left!

0

13

Toro 614687

ARM-FRONT SPRING

$21.99

$

In Stock, only 3 left!

0

14

Toro 614672

BOLT-SHOULDER

$2.99

$

In Stock, Qty 9

0

15

Toro 92-9591

WHEEL ASM

$23.99

$

In Stock, only 2 left!

0

16

Toro 614637

Bracket-H.
(Superseded to 95-7403-03)

$

$

Not available

17

Toro 92-4890

WASHER

$8.99

$

Usually ships in 3-6 days

0

18

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

19

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

20

Toro 93-0222

Baffle Front
(Superseded to 93-0222-03)

$25.99

$

Usually ships in 3-6 days

0

21

Toro 93-0216

KICKER-FRONT

$14.99

$

Usually ships in 3-6 days

0

22

Toro 92-4881

Plate H.O.C.
(Superseded to 92-4881-03)

$25.99

$

Usually ships in 3-6 days

0

23

Toro 16-9259

Deck-21in Steel (Incl. Ref. #2 & 3 pg. 1)(Incl. Ref. #29 pg. 2)

$

$

Not available
