20452 (R-21 S) - Toro 21" Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) HANDLE ASSEMBLY Parts Diagram

21" Recycler Walk-Behind Mower

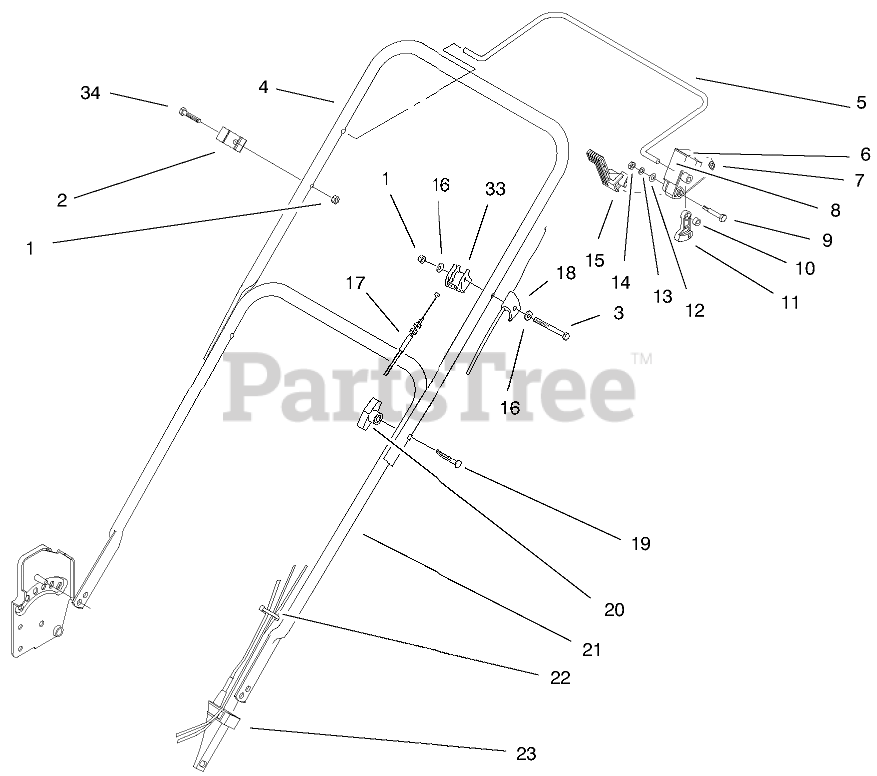

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

2

Toro 93-7383

GUIDE-ROPE
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 18

0

3

Toro 321-57

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

4

Toro 93-0237

Handle-Upper
(Superseded to 93-0237-05)

$63.99

$

Usually ships in 3-6 days

0

5

Toro 92-3135

Bar-Control
(Superseded to 92-3135-03)

$

$

Not available

6

Toro 92-2292

DECAL - INSTRUCTION

$

$

Not available

7

Toro 93-0340

STOP - PIVOT, PLASTIC

$25.99

$

In Stock, Qty 6

0

8

Toro 92-2280

DECAL - INSTRUCTION

$

$

Not available

9

Toro 92-3132

SHOULDER BOLT

$14.99

$

Usually ships in 3-6 days

0

10

Toro 92-3133

SPACER-LEVER, TRACTION

$3.99

$

In Stock, Qty 5

0

11

Toro 46-5520

LEVER-TRACTION

$

$

Not available

12

Toro 92-2298

WASHER - SPRING

$3.49

$

Usually ships in 3-6 days

0

13

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

14

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 92-2299

LEVER - SHIFT

$22.99

$

Usually ships in 3-6 days

0

16

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 98-7133

CABLE - TRACTION

$63.99

$

Usually ships in 3-6 days

0

18

Toro 98-7147

CABLE - BRAKE

$34.99

$

In Stock, only 1 left!

0

19

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 20+

0

20

Toro 98-7134

KNOB-HANDLE

$2.99

$

In Stock, Qty 20+

0

21

Toro 93-0238

Handle-Lower
(Superseded to 93-0238-05)

$

$

Not available

22

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

23

Toro 93-7380

ANCHOR-CABLE

$12.99

$

Usually ships in 3-6 days

0

33

Toro 71-0960

SUPPORT-CABLE

$8.99

$

Usually ships in 3-6 days

0

34

Toro 321-51

SCREW-HH

$1.49

$

In Stock, only 3 left!

0
