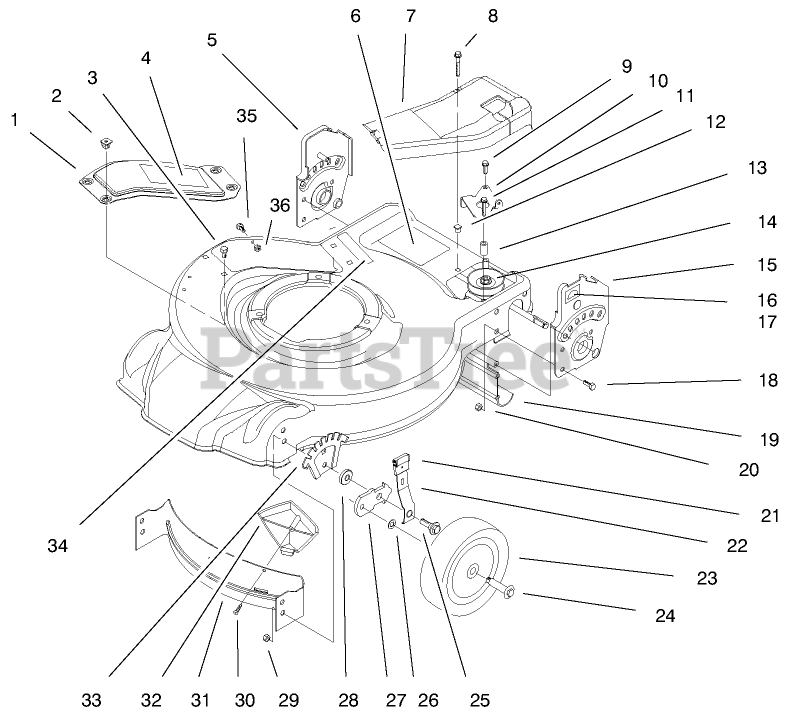

20452 (R-21 S) - Toro 21" Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) Housing Assembly Parts Diagram

21" Recycler Walk-Behind Mower

Housing Assembly Parts Diagram

  • Title

1

Toro 16-9269

COVER W/DECAL

$

$

Not available

2

Toro 93-0242

See Supercession: 94-1610
(Superseded to 94-1610)

$1.49

$

In Stock, Qty 20+

0

3

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

4

Toro 85-7060

DECAL - COVER

$

$

Not available

5

Toro 93-0234

RH HANDLE BRACKET ASM

$

$

Not available

6

Toro 93-0248

See Supercession: 104-8589
(Superseded to 104-8589)

$7.99

$

Usually ships in 3-6 days

0

7

Toro 93-0209

COVER-TRANSMISSION

$

$

Not available

8

Toro 32144-119

SCREW-PTH

$

$

Not available

9

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

10

Toro 93-0228

See Supercession: 93-0228-03
(Superseded to 93-0228-03)

$

$

Not available

11

Toro 92-1616

SCREW-HWHTF

$3.99

$

Usually ships in 3-6 days

0

12

Toro 605120

NUT-CLIP

$4.99

$

In Stock, Qty 14

0

13

Toro 614673

BUSHING-PLATE, ACTUATOR

$14.99

$

In Stock, only 2 left!

0

14

Toro 93-0240

See Supercession: 104-7678
(Superseded to 104-7678)

$

$

Not available

15

Toro 93-0233

LH HANDLE BRACKET ASM

$

$

Not available

16

Toro 92-2915

DECAL-HOC, RH

$6.99

$

Usually ships in 3-6 days

0

17

Toro 92-2914

DISCONTINUED

$

$

Not available

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 92-8647

SHIELD-TRAILING

$45.99

$

In Stock, Qty 5

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$15.99

$

Usually ships in 3-6 days

0

22

Toro 614687

ARM-FRONT SPRING

$24.99

$

In Stock, only 3 left!

0

23

Toro 98-7145

See Supercession: 92-9591
(Superseded to 92-9591)

$25.99

$

In Stock, Qty 5

0

24

Toro 614650

BOLT-SHOULDER

$4.99

$

In Stock, Qty 20+

0

25

Toro 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, Qty 5

0

26

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 10

0

27

Toro 95-7403

See Supercession: 95-7403-03
(Superseded to 95-7403-03)

$

$

Not available

28

Toro 92-4890

WASHER

$8.49

$

In Stock, only 1 left!

0

29

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

30

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 10

0

31

Toro 93-0222

See Supercession: 93-0222-03
(Superseded to 93-0222-03)

$

$

Not available

32

Toro 93-0216

KICKER-FRONT

$

$

Not available

33

Toro 92-4881

See Supercession: 92-4881-03
(Superseded to 92-4881-03)

$

$

Not available

34

Toro 93-0262

DISCONTINUED

$

$

Not available

35

Toro 32105-27

SCREW

$

$

Not available

36

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0
