20455x30F - Murray 20" Walk-Behind Mower (2004) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

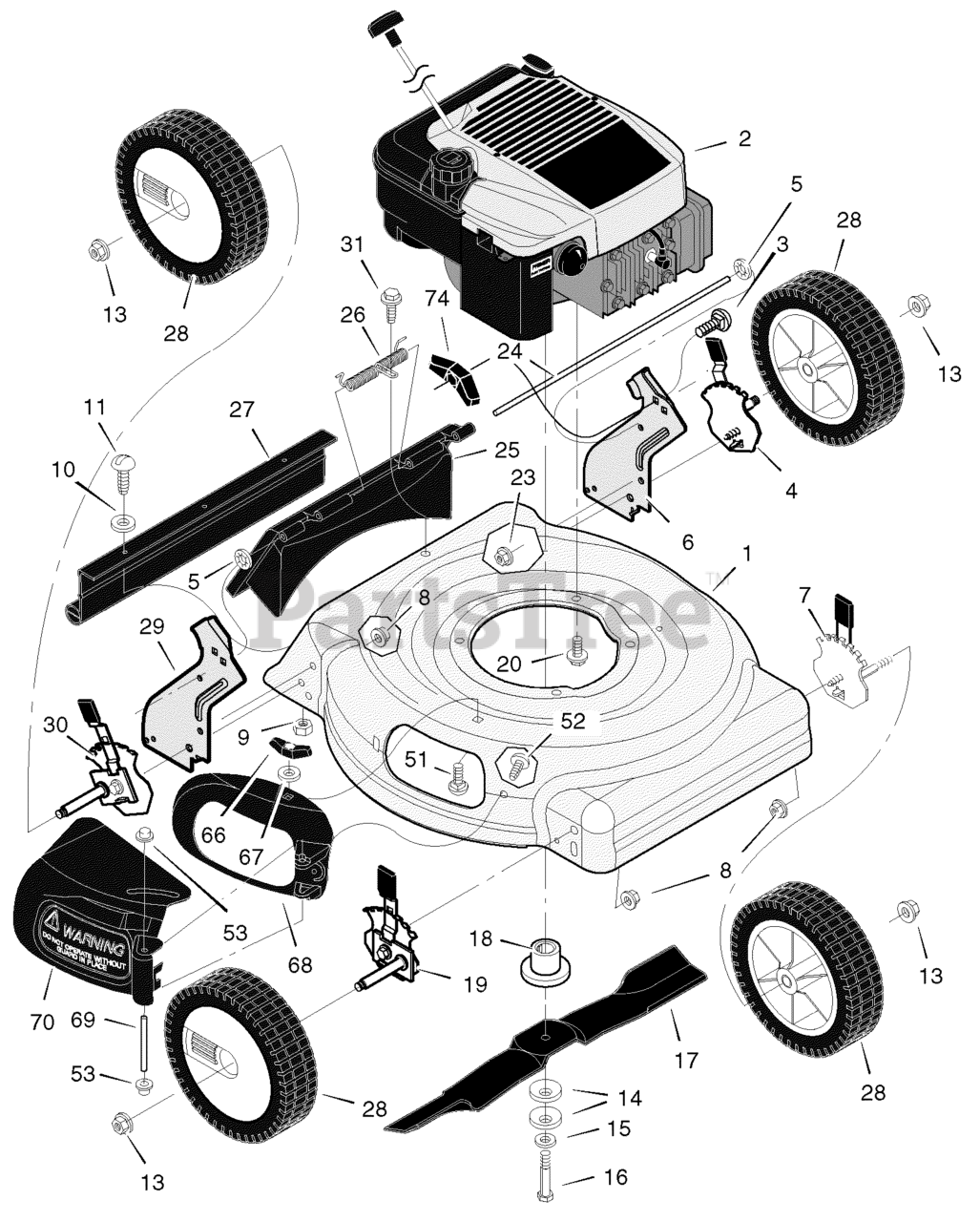

Mower Housing Assembly Parts Diagram

  • Title

1

Murray 776151

Housing

$

$

Currently unavailable

2

Engine *

$

$

Not available

3

Murray 002X81

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

4

Murray 672605

Adjuster, Left Rear Height

$23.99

$

Usually ships in 2-12 days

0

5

Murray 028X49

Retainer, Push *

$3.99

$

In Stock, Qty 13

0

6

Murray 1101239E245

Bracket, Left Handle

$

$

Currently unavailable

7

Murray 672601

Adjuster, Left Front Height

$87.99

$

Usually ships in 2-12 days

0

8

Murray 015X68

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

Murray 15X102

Nut, Hex

$3.99

$

Usually ships in 2-12 days

0

10

Murray 017X38

Washer
(Superseded to 017X38MA)

$3.99

$

Usually ships in 2-12 days

0

11

Murray 004X21

Screw
(Superseded to 004X21MA)

$3.99

$

Usually ships in 2-12 days

0

13

Murray 015X84

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Murray 17X137

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

15

Murray 17X124

Washer

$

$

Not available

16

Murray 01X153

Bolt

$4.49

$

Usually ships in 2-12 days

0

17

Murray 672763E701

Blade

$

$

Not available

18

Murray 672503

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

19

Murray 672600

Adjuster, Right Front Height

$82.99

$

In Stock, only 1 left!

0

20

Murray 0025X6

Bolt, Engine
(Superseded to 0025X6MA)

$5.49

$

Usually ships in 2-12 days

0

23

Murray 015X88

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

24

Murray 215X17 Z

Rod, Pivot *

$

$

Currently unavailable

25

Murray 672610

Door, Rear

$11.99

$

Usually ships in 2-12 days

0

26

Murray 166X44

Spring

Note: (Included with Ref. No. 25)

$14.99

$

In Stock, only 3 left!

0

27

Murray 671970

Guard, Rear

$13.99

$

Usually ships in 2-12 days

0

28

Murray 672060

Wheel

$

$

Not available

29

Murray 1101238E245

Bracket, Right Handle

$6.49

$

Usually ships in 2-12 days

0

30

Murray 672604

Adjuster, Right Rear Height

$24.99

$

Usually ships in 2-12 days

0

31

Murray 26X245

Screw

$4.49

$

In Stock, Qty 6

0

51

Murray 002X16

Bolt, Carriage

$3.99

$

Usually ships in 2-12 days

0

52

Murray 26X221

Screw

$3.49

$

Usually ships in 2-12 days

0

53

Murray 028X42

Push On Cap

Note: (Included with Ref. No. 70)

$3.99

$

Usually ships in 2-12 days

0

66

Murray 014X86

Wingnut
(Superseded to 703141)

$3.49

$

In Stock, Qty 12

0

67

Murray 028X64

Retainer, Push
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

68

Murray 671926

Bezel

Note: (Included with Ref. No. 70)

$

$

Not available

69

Murray 215X18 Z

Pin, Pivot

Note: (Included with Ref. No. 70)

$

$

Currently unavailable

70

Murray 672158

Deflector, Chute

$

$

Not available

74

Murray 71495

Knob

$

$

Not available

--

Murray F-040441L

Instruction Book

$

$

Currently unavailable
