20457 - Toro Walk-Behind Mower (SN: 079000001 - 079999999) (1997) DISCHARGE CHUTE & DOOR ASSEMBLY Parts Diagram

Walk-Behind Mower

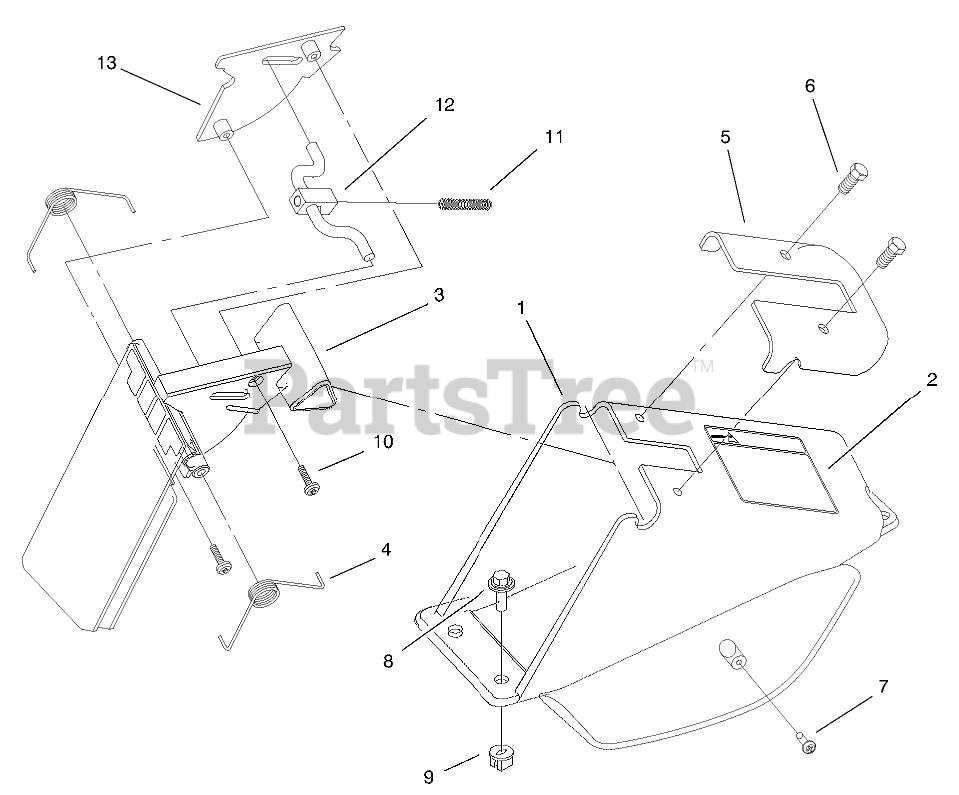

DISCHARGE CHUTE & DOOR ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 94-1683

ASM - CHUTE W/DECAL
Usually ships in 5 to 8 days

$

$70.41

0

2

Toro Part# 88-3360

DECAL - CAUTION DOOR
Usually ships same day

Not available

$

$

3

Toro Part# 93-0264

DOOR-DISCHARGE
Usually ships in 5 to 8 days

$

$20.82

0

4

Toro Part# 88-1090

SPRING-DOOR, RH
Usually ships in 1 day

$

$8.94

0

5

Toro Part# 93-0267

Plate-Discharge
(Superseded to 98-2695)
Usually ships in 5 to 8 days

$

$22.89

0

6

Toro Part# 46-8090

SCREW-PLASTITE
Usually ships in 1 day

$

$2.23

0

7
Usually ships in 1 day

$

$0.82

0

8

Toro Part# 46-6811

SCREW-HWH
Usually ships in 1 day

$

$2.23

0

9

Toro Part# 93-0242

NUT - CLIP
(Superseded to 94-1610)
Usually ships in 1 day

$

$0.82

0

Usually ships in 5 to 8 days

$

$1.99

0

11

Toro Part# 33-0450

SPRING-COMPRESSION, LATCH
Usually ships in 5 to 8 days

$

$5.91

0

12

Toro Part# 88-1800

LATCH-DOOR
Usually ships same day

Not available

$

$

13

Toro Part# 33-0441

DOOR COVER
Usually ships in 5 to 8 days

$

$9.64

0
