20460 - Troy-Bilt Pony I Rear-Tine Tiller, Electric (SN: P001001 - P101750) ENGINE, PULLEYS & BELTS Parts Diagram

Pony I Rear-Tine Tiller, Electric

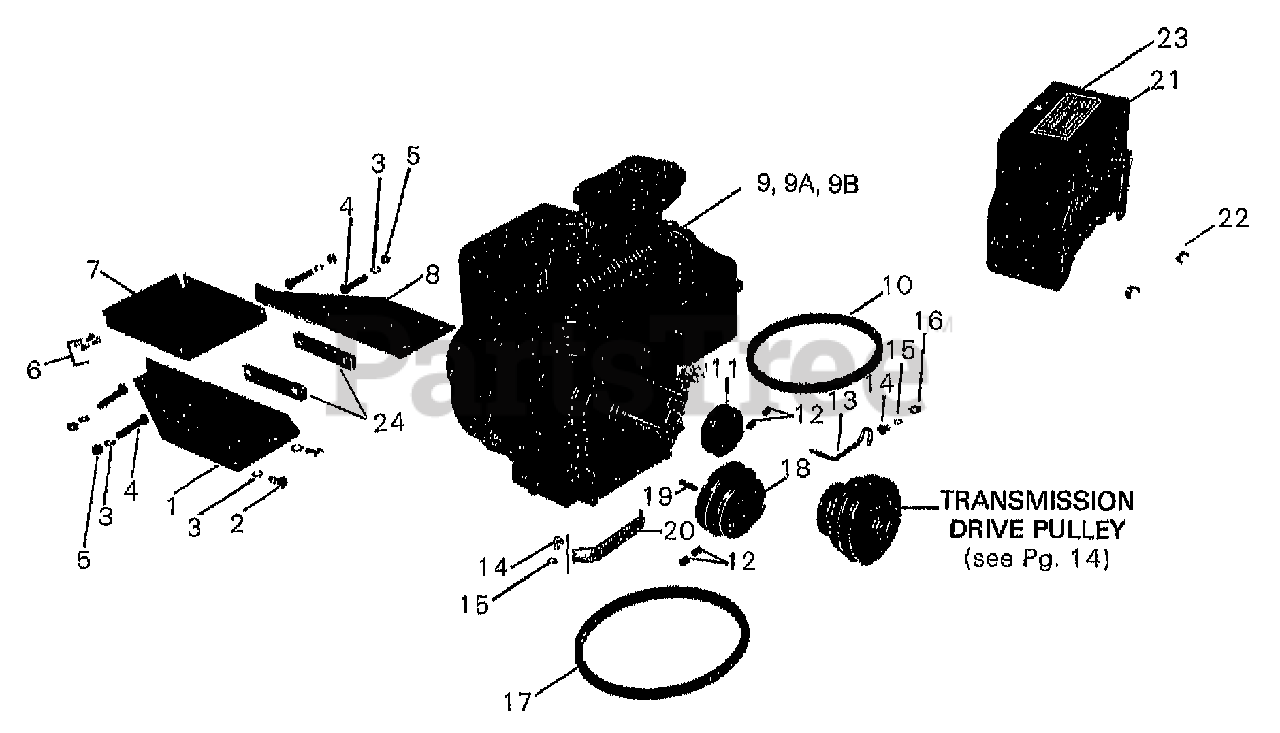

ENGINE, PULLEYS & BELTS Parts Diagram

  • Title

1

Troy-Bilt 20340-01

BRKT-ENG MTG LT

$

$

Currently unavailable

2

Troy-Bilt 9703

SCR-HHC 5/16-18X.75 GR 5 ZP

$

$

Currently unavailable

3

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

4

Troy-Bilt 9758

SCR-HH 5/16-18X1.5 G5 ZP

$

$

Currently unavailable

5

Troy-Bilt 9801

NUT-HEX 5/16-18 ZP

$

$

Currently unavailable

6

Troy-Bilt 9768

SCR-HH SEMS 10-32 X .5 (SEMS W/PERMANENT WASHER)

$

$

Currently unavailable

7

Troy-Bilt 20339

PAN-ENG BRKT PNT

$

$

Currently unavailable

8

Troy-Bilt 20340-02

BRKT-ENG MTG RT

$

$

Currently unavailable

9

0

ENGINE, BRIGGS & STRATTON, STD. RECOIL START, 4HP, MODEL 100292, TYPE 0536-01

$

$

Not available

9A

0

ENGINE, BRIGGS & STRATTON, STD. RECOIL START, 5HP, MODEL 130292, TYPE 0793-01

$

$

Not available

9B

0

ENGINE, BRIGGS & STRATTON, ELEC. START, 5HP, MODEL 130297, TYPE 0782-01

$

$

Not available

10

Troy-Bilt 9200

BELT-V - REVERSE (SEE V-BELT SET)

$

$

Currently unavailable

11

Troy-Bilt 9203

PULLEY-ENG MACH

$

$

Currently unavailable

12

Troy-Bilt 9763

SCR-SS 5/16-18X.375

$

$

Currently unavailable

13

Troy-Bilt 20366

GUIDE-BELT FWD

$

$

Currently unavailable

14

Troy-Bilt 9701

SCR-HH 1/4-20X.75 G5 ZP

$

$

Currently unavailable

15

Troy-Bilt 9910

WASHER-LK .25 ZP

$

$

Currently unavailable

16

Troy-Bilt 9900

WASHER-FLAT 1/4 SAE

$

$

Currently unavailable

17

Troy-Bilt 9201

BELT-V - FORWARD (SEE V-BELT SET)

$

$

Currently unavailable

18

Troy-Bilt 20316

KIT-ENG PULLEY PONY

$

$

Currently unavailable

19

Troy-Bilt 9301

KEY-.188 SQX1.0
(Superseded to GW-9301099)

$3.49

$

In Stock, Qty 17

0

20

Troy-Bilt 20367

GUIDE-BELT REV

$

$

Currently unavailable

21

Troy-Bilt 20360

WELD-BELT SHROUD

$

$

Currently unavailable

22

Troy-Bilt 9822

NUT-WING/LK 1/4-20 ZP

$

$

Currently unavailable

23

Troy-Bilt 20412

DECAL-BELT POSITION

$

$

Currently unavailable

24

Troy-Bilt 20340-05

SHIM-4.38X.88X.134 (NON-CURRENT PART - CONTACT FACTORY)

$

$

Currently unavailable

Troy-Bilt 20402

BELT-V (SET)

$

$

Currently unavailable
