20460 - Troy-Bilt Pony I Rear-Tine Tiller, Electric (SN: P001001 - P101750) HOOD & DEPTH REGULATOR Parts Diagram

Pony I Rear-Tine Tiller, Electric

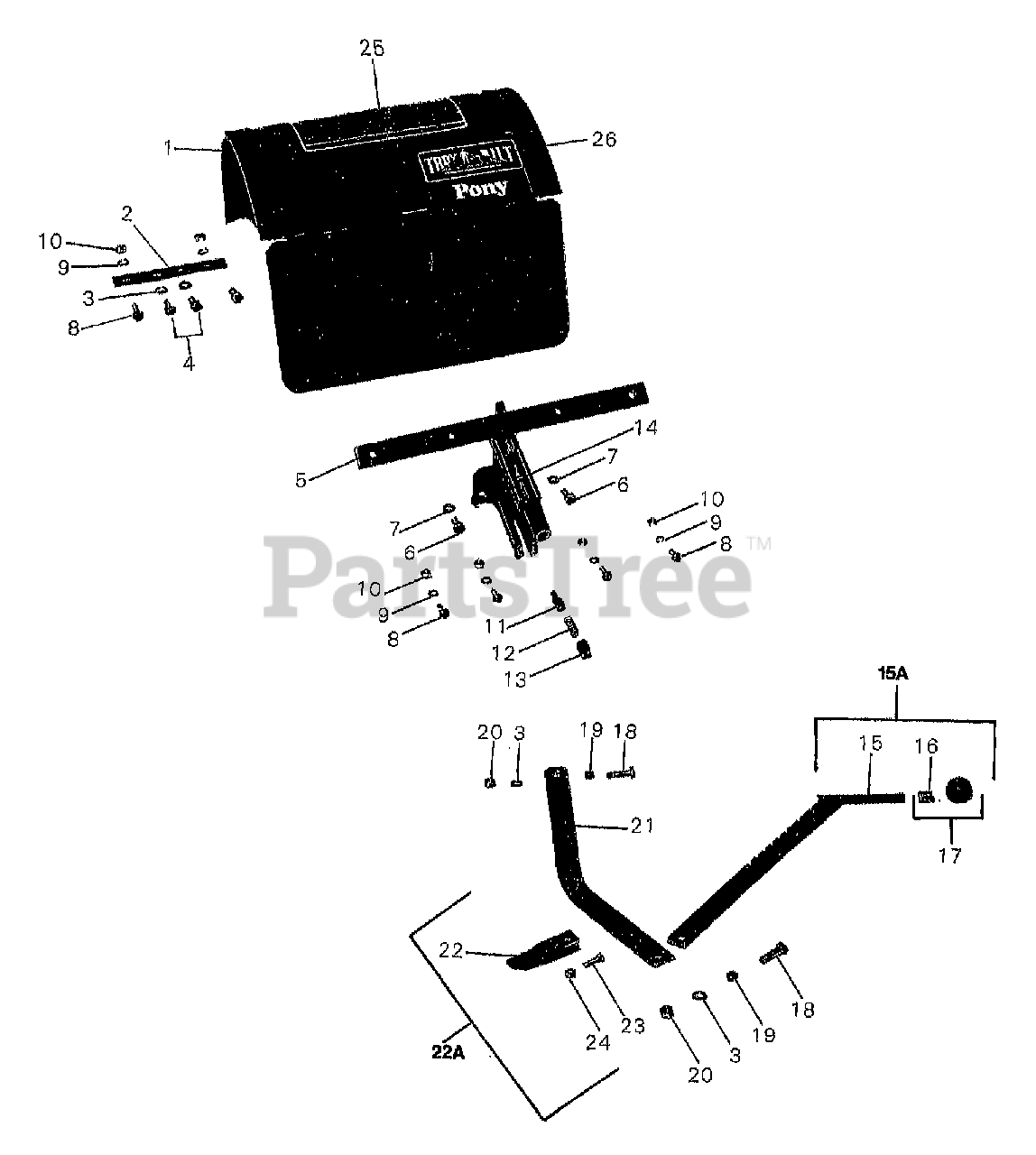

HOOD & DEPTH REGULATOR Parts Diagram

  • Title

1

Troy-Bilt 20449

HOOD W/DECAL-PONY 2 (INCL. 25 & 26)

$

$

Currently unavailable

1

Troy-Bilt 20489

HOOD W/DECAL-PONY 2 (INCL. 25 & 26)

$

$

Currently unavailable

1

Troy-Bilt 20635

HOOD W/DECALS (INCL. 25 & 26)

$

$

Currently unavailable

2

Troy-Bilt 20397

PLATE-HOOD MTG (REPLACES SHORTER VERSION USED ON P14465 & EARLIER)

$

$

Currently unavailable

3

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

4

Troy-Bilt 9710

SCR-HH 3/8-16X1.0 G5 ZP

$

$

Currently unavailable

5

Troy-Bilt 20368

KIT-REAR HOOD BRKT PONY

$

$

Currently unavailable

6

Troy-Bilt 9703

SCR-HHC 5/16-18X.75 GR 5 (BRACKET TO REAR BEARING CAP)

$

$

Currently unavailable

7

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

8

Troy-Bilt 9723

SCR-RH 1/4-20 X .75 (HOOD TO BRACKET)

$

$

Currently unavailable

9

Troy-Bilt 9910

WASHER-LK .25 ZP

$

$

Currently unavailable

10

Troy-Bilt 9800

NUT-HEX 1/4-20 ZP

$

$

Currently unavailable

11

Troy-Bilt 1119

PLUNGER

$

$

Currently unavailable

12

Troy-Bilt 1120

SPRING .406 X 1.25

$

$

Currently unavailable

13

Troy-Bilt 9726

PLUG-PIPE 1/4 NPT
(Superseded to 1105620)

$3.99

$

In Stock, Qty 6

0

14

Troy-Bilt 9308

PIN-ROLL .25 X 1 (SPIRAL)
(Superseded to 715-0108)

$4.99

$

In Stock, Qty 20+

0

15A

Troy-Bilt 1117A

DEPTH REGULATOR W/KNOB (INCL. 15-17)
(Superseded to 1900864)

$80.99

$

In Stock, Qty 9

0

15

0

BAR - DEPTH ADJUSTMENT (NOT AVAIL. SEP.)

$

$

Not available

16

Troy-Bilt 9120

RING-TOLERANCE .5325 ID
(Superseded to GW-9120)

$6.49

$

In Stock, only 1 left!

0

17

Troy-Bilt 9119

KNOB-CONTROL (INCL. RETAINING RING, #16)
(Superseded to GW-9119)

$10.99

$

In Stock, only 4 left!

0

18

Troy-Bilt 9712

SCR-HH 3/8-16X1.25

$

$

Currently unavailable

19

Troy-Bilt 1113-1

BUSHING-.5X.375X.3 (REPLACES 1113)
(Superseded to GW-1113-1099)

$4.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

21

Troy-Bilt 20358

BAR-DRAG

$

$

Currently unavailable

22A

Troy-Bilt 1307

SOD POINT ASSY - COMPLETE (INCL. #9811 LOCKNUT, #9701 BOLT, #1294 SOD POINT)

$

$

Currently unavailable

22

0

SOD POINT

$

$

Not available

23

Troy-Bilt 9701

SCR-HH 1/4-20X.75 G5 ZP

$

$

Currently unavailable

24

Troy-Bilt 9811

NUT-LK 1/4-20

$

$

Currently unavailable

25

Troy-Bilt 20400

DECAL-HOOD TILLER OPERATION INSTRUCTIONS

$

$

Currently unavailable

26

Troy-Bilt 20401

DECAL-HOOD LOGO PONY OPC (MODEL NAME DECAL)

$

$

Currently unavailable
