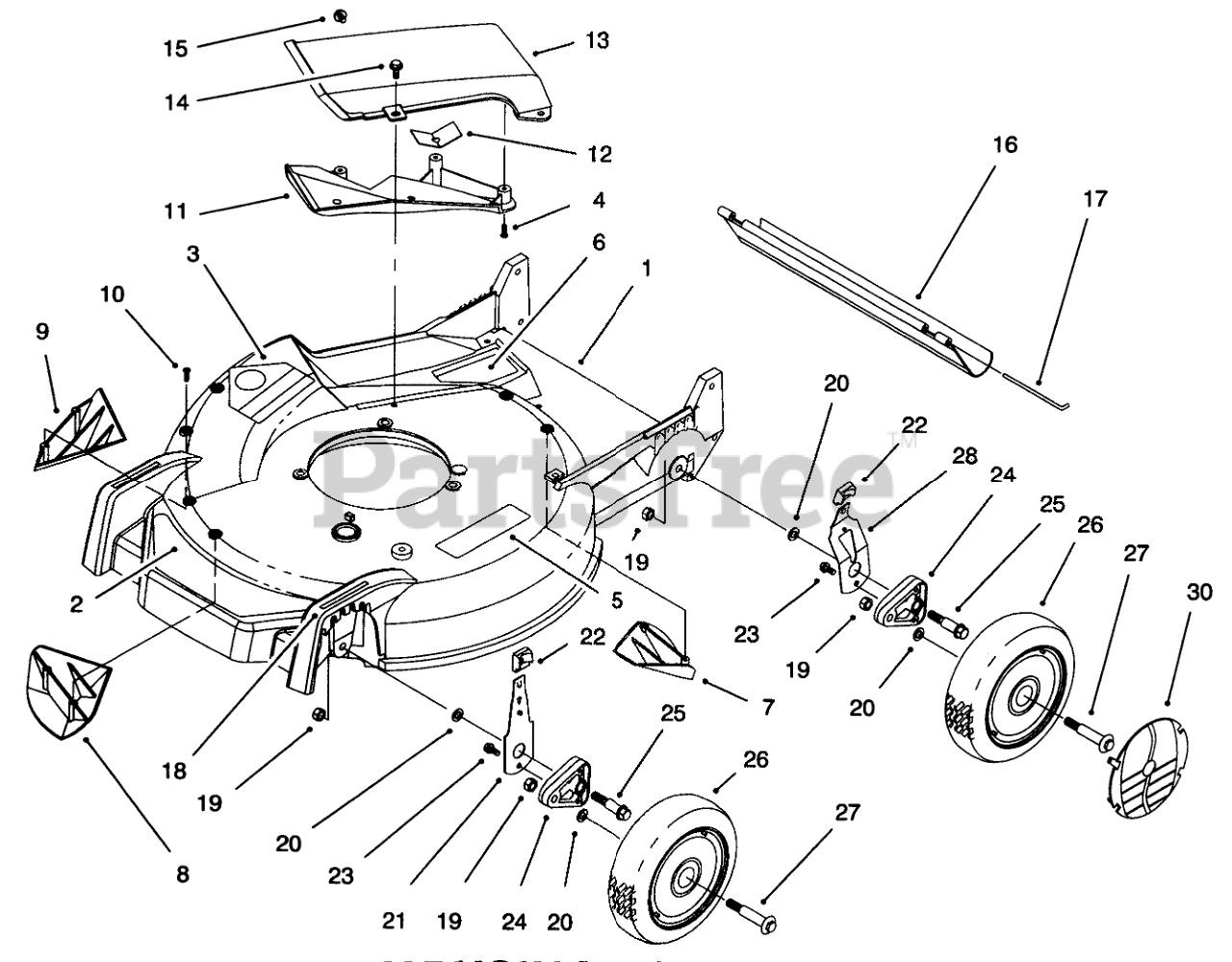

20461 - Toro Super Recycler Walk-Behind Mower (SN: 069000001 - 069999999) (1996) HOUSING ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 16-9289

Housing-21" (Incl. Ref. #3, 5, & 6)

$

$

Not available

2

Toro 93-3696

DECAL - DECK

$

$

Not available

3

Toro 39-5770

DECAL-DANGER

$7.99

$

In Stock, Qty 8

0

4

Screw-PPH

$

$

Not available

5

Toro 93-0248

DECAL-WARNING
(Superseded to 104-8589)

$5.99

$

Usually ships in 3-6 days

0

6

Toro 82-8450

DECAL - DANGER

$6.99

$

Usually ships in 3-6 days

0

7

Toro 92-1660

KICKER-REAR

$19.99

$

Usually ships in 3-6 days

0

8

Toro 92-1720

KICKER-FRONT

$19.99

$

In Stock, only 2 left!

0

9

Toro 92-1730

KICKER-RH

$19.99

$

In Stock, only 1 left!

0

10

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

11

Deflector-Recycler

$

$

Not available

12

Guard-Cover

$

$

Not available

13

Toro 14-4069

Cover-Recycler (Incl. Ref. #4, 11, & 12)
(Superseded to 17-5179)

$

$

Not available

14

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, Qty 7

0

15

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, only 3 left!

0

16

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$27.99

$

In Stock, Qty 16

0

17

Toro 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 16

0

18

Toro 92-2279

DECAL - HOC

$

$

Not available

19

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

20

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

21

Toro 66-0541

FRONT SPRING ARM ASM

$15.99

$

In Stock, Qty 8

0

22

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 13

0

23

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

24

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, only 1 left!

0

25

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 20+

0

26

Toro 14-9989

WHEEL AND TIRE ASM

$42.99

$

In Stock, only 2 left!

0

27

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 14

0

28

Toro 71-0561

RH SPRING ARM ASM

$19.99

$

Usually ships in 3-6 days

0

Toro 71-0571

LH SPRING ARM ASM

Note: Not illustrated

$19.99

$

Usually ships in 3-6 days

0

30

Toro 91-2253

WHEEL COVER
(Superseded to 100-6351)

$20.99

$

Usually ships in 3-6 days

0
