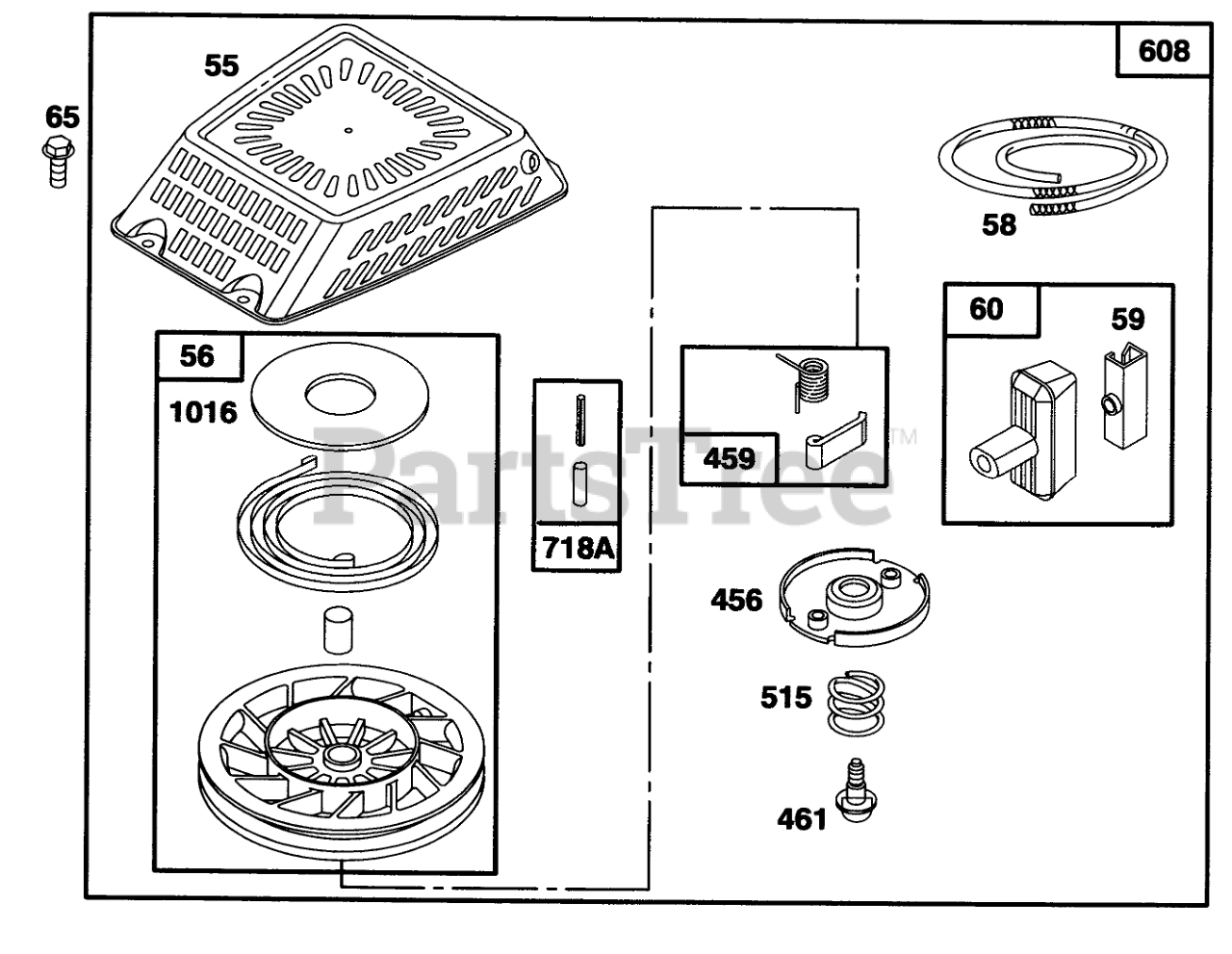

20464 - Toro Super Recycler Walk-Behind Mower (SN: 059000001 - 059999999) (1995) ENGINE GTS 150 MODEL 97772-0118-02 MODEL 97772-0318-A2 Parts Diagram

Super Recycler Walk-Behind Mower

ENGINE GTS 150 MODEL 97772-0118-02 MODEL 97772-0318-A2 Parts Diagram

  • Title

55

Toro 77-8890

Housing Rewind Starter
(Superseded to 94-1656)

$

$

Not available

56

Toro 77-9270

REWIND STARTER PULLEY

$

$

Not available

58

Toro 77-8480

ROPE - STARTER

$

$

Not available

59

Toro 77-7210

INSERT-HANDLE, REWIND

$10.99

$

Usually ships in 3-6 days

0

60

Toro 77-8520

HANDLE-STARTER, REWIND

$

$

Not available

65

Toro 77-8300

SCREW - HEX HEAD

$

$

Not available

456

Toro 77-8470

RETAINER - SPRING

$6.49

$

Usually ships in 3-6 days

0

459

Toro 77-8530

PAWL - RATCHET

$

$

Not available

461

Toro 77-8490

SCREW - HEX HEAD

$

$

Not available

515

Toro 77-850

0 Spring-Torsion

$

$

Currently unavailable

608

Toro 77-8840

StarterAssy-Rewind
(Superseded to 94-1661)

$

$

Not available

718A

Toro 77-8550

DAWL - SLEEVE

$

$

Not available

1016

Toro 77-8570

COVER - PULLEY

$

$

Not available

Toro 77-9020

Short Block

$

$

Not available
