20464 - Toro Super Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE GTS 150 Parts Diagram

Super Recycler Walk-Behind Mower

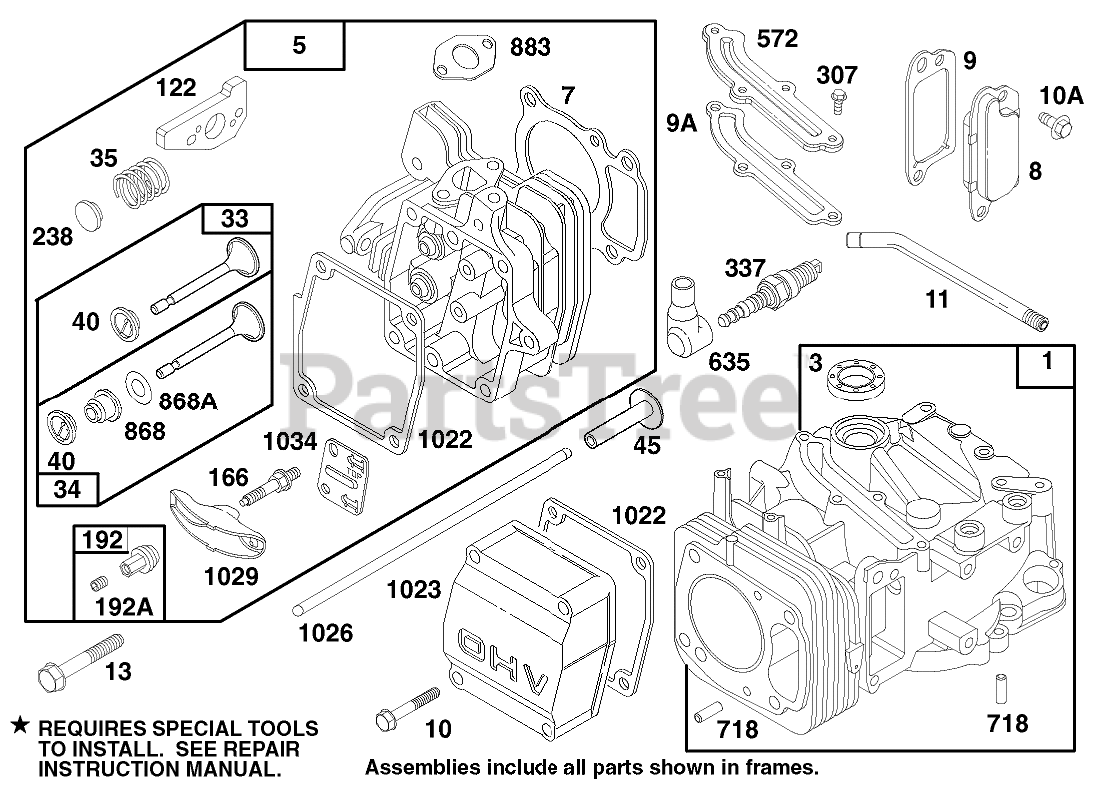

ENGINE GTS 150 Parts Diagram

  • Title
1

Toro Part# 77-7590

CYLINDER ASSEMBLY
Usually ships in 5 to 8 days

$

$562.48

0

3

Toro Part# 77-9060

SEAL - OIL

Note: Included in Gasekt Set-Part No. 77-8900

Usually ships same day

Not available

$

$

5

Toro Part# 77-7730

CYLINDER HEAD
Usually ships same day

Not available

$

$

7

Toro Part# 77-7740

CYLINDER HEAD GASKET

Note: Included in Gasekt Set-Part No. 77-8900

Usually ships in 1 day

$

$19.23

0

8

Toro Part# 77-9260

BREATHER ASM
Usually ships same day

Not available

$

$

9

Toro Part# 77-9250

BREATHER GASKET
(Superseded to 99-0913)

Note: Included in Gasekt Set-Part No. 77-8900

Usually ships in 5 to 8 days

$

$2.78

0

9A

Toro Part# 77-7410

GASKET-BREATHER
(Superseded to 99-0923)

Note: Included in Gasekt Set-Part No. 77-8900

Usually ships in 5 to 8 days

$

$9.23

0

10

Toro Part# 77-7360

HEX HEAD SCREW
Usually ships in 5 to 8 days

$

$9.61

0

10A

Toro Part# 77-9200

HEX HEAD SCREW
Usually ships same day

Not available

$

$

11

Toro Part# 77-9410

TUBE - BREATHER
Usually ships same day

Not available

$

$

13

Toro Part# 77-7630

CYLINDER HEAD SCREW
Usually ships same day

Not available

$

$

33

Toro Part# 77-7860

EXHAUST VALVE
Usually ships in 5 to 8 days

$

$71.19

0

34

Toro Part# 77-7880

INTAKE VALVE
Usually ships in 5 to 8 days

$

$62.21

0

35

Toro Part# 77-7810

VALVE SPRING
Usually ships in 5 to 8 days

$

$6.19

0

40

Toro Part# 77-7870

SPRING RETAINER
Usually ships same day

Not available

$

$

45

Toro Part# 77-7610

VALVE TAPPET
Usually ships same day

Not available

$

$

122

Toro Part# 77-7820

ADAPTER ASSEMBLY

Note: Included in Carburetor Overhaul Kit-Part No. 77-9580

Usually ships in 5 to 8 days

$

$19.88

0

166

Toro Part# 77-7780

ROCKER ARM STUD
Usually ships same day

Not available

$

$

192

Toro Part# 77-7910

NUT - HEX SPECIAL
Usually ships same day

Not available

$

$

192A

Toro Part# 77-9560

Screw-Set
(Superseded to 77-7910)
Usually ships same day

Not available

$

$

238

Toro Part# 77-7800

VALVE CAP
Usually ships same day

Not available

$

$

307

Toro Part# 77-7420

SCREW - SEM
Usually ships same day

Not available

$

$

337

Toro Part# 77-7330

PLUG-SPARK
Usually ships in 1 day

$

$3.40

0

572

Toro Part# 77-7400

BAFFLE - CYCLINDER
(Superseded to 99-0922)
Usually ships in 5 to 8 days

$

$7.44

0

635

Toro Part# 77-7340

SPARK PLUG ELBOW
Usually ships in 5 to 8 days

$

$4.47

0

718

Toro Part# 77-7600

DOWEL - SLEEVE
Usually ships same day

Not available

$

$

868

Toro Part# 77-7890

SealAssy-Valve
(Superseded to 94-1669)

Note: Included in Gasekt Set-Part No. 77-8900

Usually ships in 5 to 8 days

$

$14.26

0

868A

Toro Part# 77-7900

Seal-Valve
(Superseded to 94-1669)

Note: Included in Gasekt Set-Part No. 77-8900

Usually ships in 5 to 8 days

$

$14.26

0

883

Toro Part# 77-7760

EXHAUST GASKET

Note: Included in Gasekt Set-Part No. 77-8900

Usually ships same day

Not available

$

$

1022

Toro Part# 77-7320

ROCKER COVER GASKET

Note: Included in Gasekt Set-Part No. 77-8900

Usually ships in 5 to 8 days

$

$13.19

0

1023

Toro Part# 77-9320

COVER - VALVE
Usually ships same day

Not available

$

$

1026
Usually ships in 5 to 8 days

$

$54.82

0

1029

Toro Part# 77-7790

ROCKER ARM
Usually ships in 1 day

$

$31.48

0

1034

Toro Part# 77-7770

PUSH ROD GUIDE
Usually ships same day

Not available

$

$
