20464 - Toro Super Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE GTS 150 Parts Diagram

Super Recycler Walk-Behind Mower

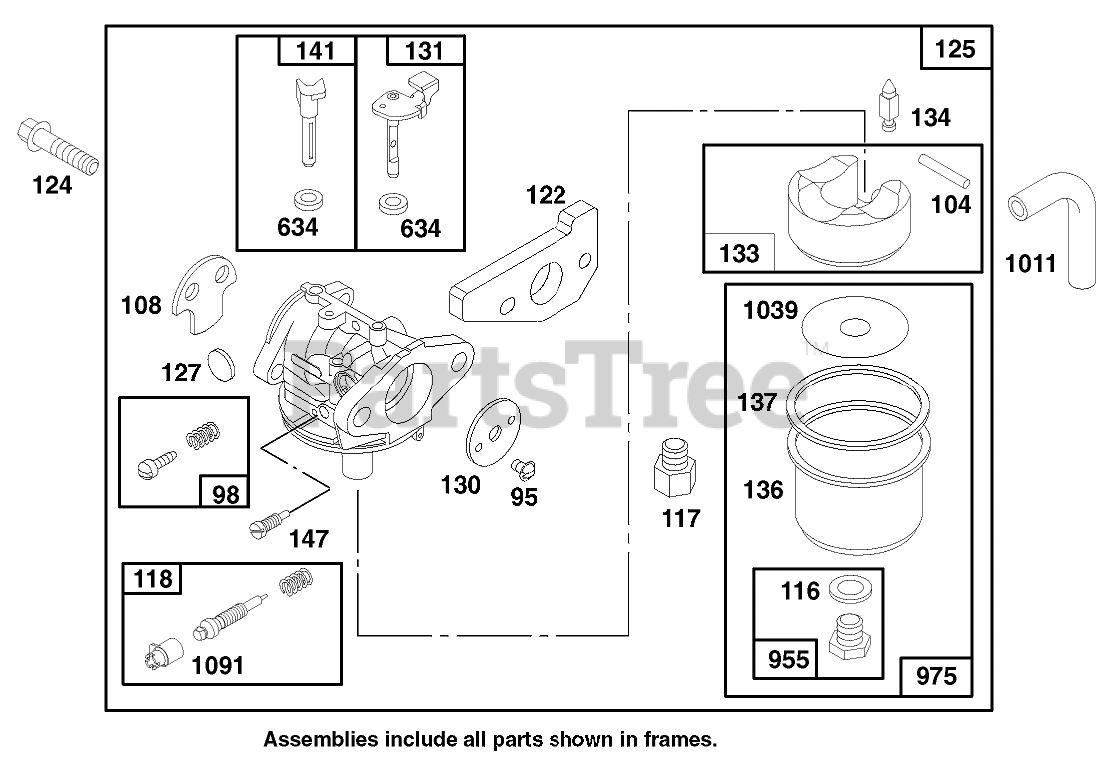

ENGINE GTS 150 Parts Diagram

  • Title
95

Toro Part# 77-8090

SCREW - ROUND HEAD
Usually ships same day

Not available

$

$

98

Toro Part# 77-8240

IDLE ADJUSTING SCREW
Usually ships in 5 to 8 days

$

$4.97

0

104

Toro Part# 77-8180

FLOAT HINGE PIN

Note: Included in Carburetor Overhaul Kit-Part No. 77-9580

Usually ships same day

Not available

$

$

108

Toro Part# 77-9600

VALVE - CHOKE
Usually ships same day

Not available

$

$

116

Toro Part# 77-8210

SEALING GASKET

Note: Included in Carburetor Overhaul Kit-Part No. 77-9580

Usually ships in 1 day

$

$4.24

0

116

Toro Part# 77-8210

SEALING GASKET

Note: Included in Carburetor Gasket Set-Part No. 77-8930

Usually ships in 1 day

$

$4.24

0

117

Toro Part# 77-9610

Jet-Main
(Superseded to 94-1672)

Note: Included in Carburetor Overhaul Kit-Part No. 77-9580

Usually ships same day

Not available

$

$

118

Toro Part# 77-9620

VALVE/SPRING - NEEDLE

Note: Included in Carburetor Overhaul Kit-Part No. 77-9580

Usually ships same day

Not available

$

$

122

Toro Part# 77-7820

ADAPTER ASSEMBLY

Note: Included in Carburetor Overhaul Kit-Part No. 77-9580

Usually ships in 5 to 8 days

$

$19.88

0

124

Toro Part# 77-7970

HEX HEAD SCREW
Usually ships in 5 to 8 days

$

$3.82

0

125

Toro Part# 77-9630

ASSEMBLY - CARBURETOR
Usually ships same day

Not available

$

$

127

Toro Part# 77-8100

PLUG

Note: Included in Carburetor Overhaul Kit-Part No. 77-9580

Usually ships in 1 day

$

$2.67

0

130

Toro Part# 77-8080

THROTTLE VALVE
Usually ships in 5 to 8 days

$

$5.47

0

131

Toro Part# 77-8160

THROTTLE SHAFT
Usually ships same day

Not available

$

$

133

Toro Part# 77-8170

FLOAT-CARBURETOR
Usually ships in 5 to 8 days

$

$20.77

0

134

Toro Part# 77-8110

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Overhaul Kit-Part No. 77-9580

Usually ships in 1 day

$

$15.03

0

136

Toro Part# 77-7240

FLOAT BOWL
Usually ships same day

Not available

$

$

137

Toro Part# 77-8200

FLOAT BOWL GASKET

Note: Included in Carburetor Overhaul Kit-Part No. 77-9580

Usually ships in 1 day

$

$5.58

0

137

Toro Part# 77-8200

FLOAT BOWL GASKET

Note: Included in Carburetor Gasket Set-Part No. 77-8930

Usually ships in 1 day

$

$5.58

0

141

Toro Part# 77-8130

CHOKE SHAFT
Usually ships same day

Not available

$

$

147

Toro Part# 77-9640

JET - PILOT
Usually ships same day

Not available

$

$

Toro Part# 77-9000

HIGH ALTITUDE JET
Usually ships same day

Not available

$

$

634

Toro Part# 77-8150

SEAL WASHER

Note: Included in Carburetor Gasket Set-Part No. 77-8930

Usually ships same day

Not available

$

$

955

Toro Part# 77-8220

HEX HEAD SCREW
Usually ships same day

Not available

$

$

975

Toro Part# 77-8190

CARBURETOR BOWL ASM
Usually ships same day

Not available

$

$

1011

Toro Part# 77-8040

VENT TUBE
Usually ships in 5 to 8 days

$

$14.26

0

1039

Toro Part# 77-7250

FLOAT LIMITER

Note: Included in Carburetor Overhaul Kit-Part No. 77-9580

Usually ships in 5 to 8 days

$

$9.23

0

1091

Toro Part# 77-9650

CAP - LIMITER

Note: Included in Carburetor Overhaul Kit-Part No. 77-9580

Usually ships same day

Not available

$

$
