20464 - Toro Super Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE GTS 150 Parts Diagram

Super Recycler Walk-Behind Mower

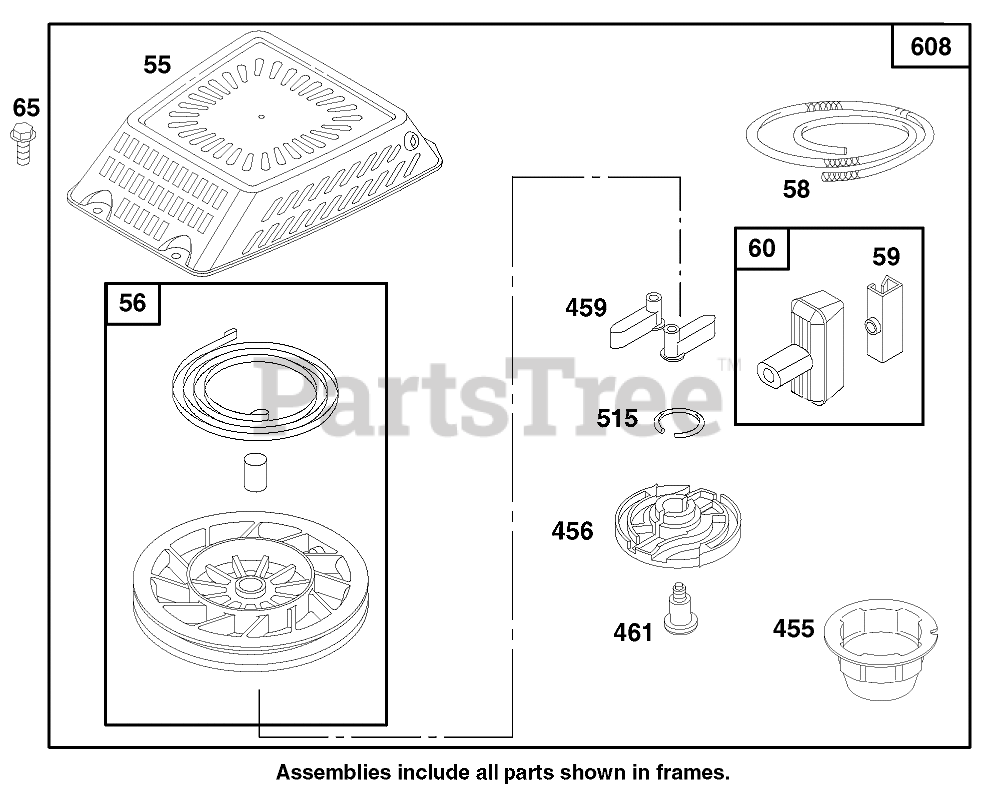

ENGINE GTS 150 Parts Diagram

  • Title
55

Toro Part# 94-1656

HOUSING - REWIND STARTER
Usually ships same day

Not available

$

$

56

Toro Part# 94-1657

PULLEY-STARTER, REWIND
Usually ships in 5 to 8 days

$

$43.62

0

58

Toro Part# 94-1668

Rope-Starter
Usually ships in 1 day

$

$5.80

0

59

Toro Part# 77-7210

INSERT-HANDLE, REWIND
Usually ships in 5 to 8 days

$

$8.23

0

60

Toro Part# 77-8520

HANDLE-STARTER, REWIND
Usually ships same day

Not available

$

$

65

Toro Part# 77-8300

SCREW - HEX HEAD
Usually ships same day

Not available

$

$

455

Toro Part# 94-1653

CUP - STARTER
Usually ships in 5 to 8 days

$

$13.96

0

456

Toro Part# 94-1659

RETAINER-STARTER, REWIND
Usually ships in 5 to 8 days

$

$5.79

0

459

Toro Part# 94-1654

PAWL-STARTER
Usually ships in 5 to 8 days

$

$5.94

0

461

Toro Part# 94-1660

SCREW-SHOULDER
Usually ships same day

Not available

$

$

515

Toro Part# 94-1655

SPRING-TORSION
Usually ships same day

Not available

$

$

608

Toro Part# 94-1661

ASM - REWIND STARTER
Usually ships same day

Not available

$

$

Toro Part# 77-9020

Short Block
Usually ships same day

Not available

$

$
