20464 - Toro Super Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE GTS 150 Parts Diagram

Super Recycler Walk-Behind Mower

ENGINE GTS 150 Parts Diagram

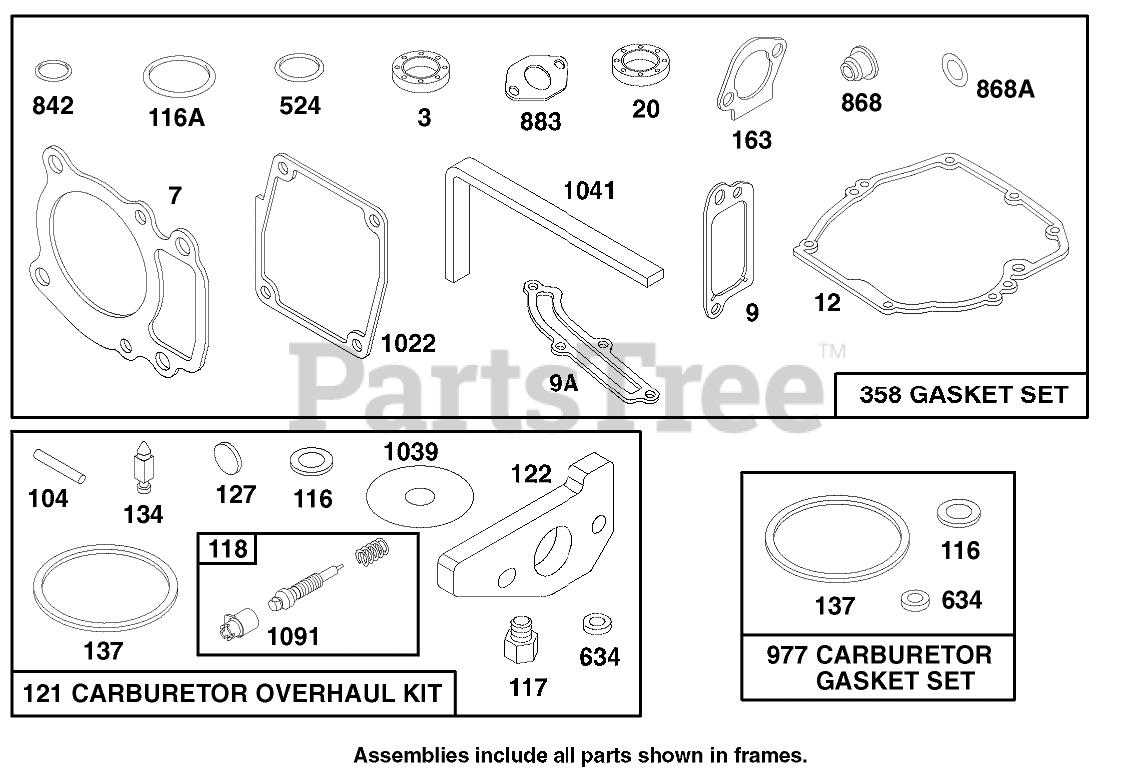

  • Title
3

Toro Part# 77-9060

SEAL - OIL

Note: Included in Gasket Set-Part No. 77-8900

Usually ships same day

Not available

$

$

7

Toro Part# 77-7740

CYLINDER HEAD GASKET

Note: Included in Gasket Set-Part No. 77-8900

Usually ships in 1 day

$

$19.23

0

9

Toro Part# 77-9250

BREATHER GASKET
(Superseded to 99-0913)

Note: Included in Gasket Set-Part No. 77-8900

Usually ships in 5 to 8 days

$

$2.78

0

9A

Toro Part# 77-7410

GASKET-BREATHER
(Superseded to 99-0923)

Note: Included in Gasket Set-Part No. 77-8900

Usually ships in 5 to 8 days

$

$9.23

0

12

Toro Part# 77-7550

ENGINE BASE GASKET

Note: Included in Gasket Set-Part No. 77-8900

Usually ships in 5 to 8 days

$

$15.03

0

20

Toro Part# 77-7570

SEAL-OIL

Note: Included in Gasket Set-Part No. 77-8900

Usually ships in 5 to 8 days

$

$15.23

0

104

Toro Part# 77-8180

FLOAT HINGE PIN

Note: Included in Carburetor Overhaul Kit-Part No. 77-9580

Usually ships same day

Not available

$

$

116

Toro Part# 77-8210

SEALING GASKET

Note: Included in Carburetor Overhaul Kit-Part No. 77-9580

Usually ships in 1 day

$

$4.24

0

116

Toro Part# 77-8210

SEALING GASKET

Note: Included in Carburetor Gasket Set-Part No. 77-8930

Usually ships in 1 day

$

$4.24

0

116A

Toro Part# 77-7660

O RING SEAL

Note: Included in Gasket Set-Part No. 77-8900

Usually ships in 5 to 8 days

$

$9.23

0

117

Toro Part# 77-9610

Jet-Main
(Superseded to 94-1672)

Note: Included in Carburetor Gasket Set-Part No. 77-8930

Usually ships same day

Not available

$

$

118

Toro Part# 77-9620

VALVE/SPRING - NEEDLE

Note: Included in Carburetor Overhaul Kit-Part No. 77-9580

Usually ships same day

Not available

$

$

121

Toro Part# 77-9580

KIT-CARBURETOR OVERHAUL
Usually ships in 1 day

$

$54.65

0

122

Toro Part# 77-7820

ADAPTER ASSEMBLY

Note: Included in Carburetor Overhaul Kit-Part No. 77-9580

Usually ships in 5 to 8 days

$

$19.88

0

127

Toro Part# 94-1651

PLUG - WELCH

Note: Included in Carburetor Overhaul Kit-Part No. 77-9580

Usually ships same day

Not available

$

$

134

Toro Part# 77-8110

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Overhaul Kit-Part No. 77-9580

Usually ships in 1 day

$

$15.03

0

137

Toro Part# 77-8200

FLOAT BOWL GASKET

Note: Included in Carburetor Gasket Set-Part No. 77-8930

Usually ships in 1 day

$

$5.58

0

137

Toro Part# 77-8200

FLOAT BOWL GASKET

Note: Included in Carburetor Overhaul Kit-Part No. 77-9580

Usually ships in 1 day

$

$5.58

0

163

Toro Part# 77-7960

AIR CLEANER GASKET

Note: Included in Gasket Set-Part No. 77-8900

Usually ships in 1 day

$

$14.76

0

358

Toro Part# 77-8900

GASKET SET
Usually ships in 5 to 8 days

$

$87.79

0

524

Toro Part# 77-7270

O-RING

Note: Included in Gasket Set-Part No. 77-8900

Usually ships in 5 to 8 days

$

$7.01

0

634

Toro Part# 77-8150

SEAL WASHER

Note: Included in Carburetor Gasket Set-Part No. 77-8930

Usually ships same day

Not available

$

$

842

Toro Part# 77-7300

O-RING

Note: Included in Gasket Set-Part No. 77-8900

Usually ships in 1 day

$

$3.79

0

868

Toro Part# 77-7890

SealAssy-Valve
(Superseded to 94-1669)

Note: Included in Gasket Set-Part No. 77-8900

Usually ships in 5 to 8 days

$

$14.26

0

868A

Toro Part# 77-7900

Seal-Valve
(Superseded to 94-1669)

Note: Included in Gasket Set-Part No. 77-8900

Usually ships in 5 to 8 days

$

$14.26

0

883

Toro Part# 77-7760

EXHAUST GASKET

Note: Included in Gasket Set-Part No. 77-8900

Usually ships same day

Not available

$

$

977

Toro Part# 77-8930

CARBURATOR GASKET SET
Usually ships in 5 to 8 days

$

$8.71

0

1022

Toro Part# 77-7320

ROCKER COVER GASKET

Note: Included in Gasket Set-Part No. 77-8900

Usually ships in 5 to 8 days

$

$13.19

0

1039

Toro Part# 77-7250

FLOAT LIMITER

Note: Included in Carburetor Overhaul Kit-Part No. 77-9580

Usually ships in 5 to 8 days

$

$9.23

0

1041

Toro Part# 77-8590

SEAL - FOAM

Note: Included in Gasket Set-Part No. 77-8900

Usually ships same day

Not available

$

$

1091

Toro Part# 77-9650

CAP - LIMITER

Note: Included in Carburetor Overhaul Kit-Part No. 77-9580

Usually ships same day

Not available

$

$
